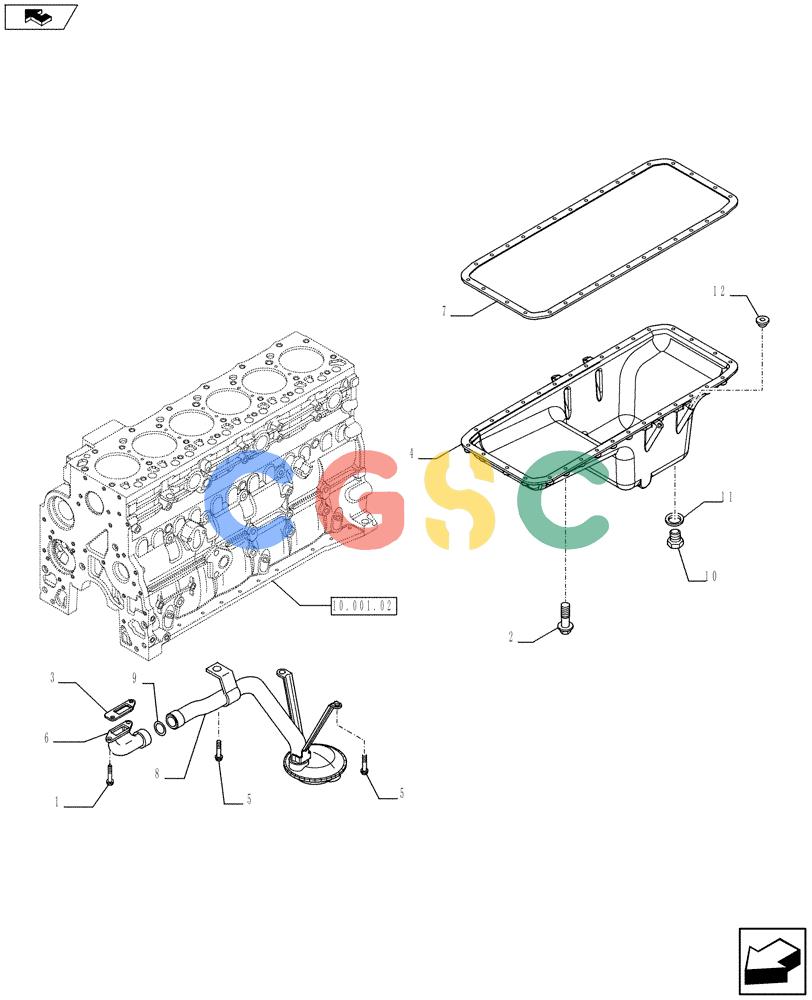

纽荷兰零件查询(F4HFE613Y A005) - ENGINE 5801425075 - 84387923 (10.102.01) - OIL SUMP & RELATED PARTS (504084707) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
749 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899020 | [2] | FLANGE BOLT,Hex, M8 x 1.25 x 20mm | TOR Superseded by part number: 16673635 |
| 2. | 4899019 | [32] | SCREW,Hex Flg, M8 x 1.25 x 35 | TOR |
| 3. | 4898301 | [1] | GASKET,0.42mm Thk | TOR |
| 4. | 2852419 | [1] | ENGINE OIL PAN | TOR Superseded by part number: 504042274 |
| 5. | 4895291 | [3] | SCREW,Hex Flg, M10 x 1.5 x 20 | TOR |
| 6. | 2852238 | [1] | ELBOW | TOR |
| 7. | 2852420 | [1] | OIL PAN GASKET SET | TOR Superseded by part number: 504027340 |
| 8. | 504082954 | [1] | | STRAINER ELEMENT |
| 9. | 14457981 | [1] | O-RING,1.049" ID x 0.103" Width | BAS |
| 10. | 4894139 | [1] | PLUG,Hex Soc, M22 x 1.5 | TOR |
| 11. | 5135740 | [1] | O-RING,0.924" ID x 1.13" OD x 0.103" | TTF Superseded by part number: 14457780 |
| 12. | 4897330 | [1] | HEX SOCKET PLUG,M12 x 1.5 | TOR |
