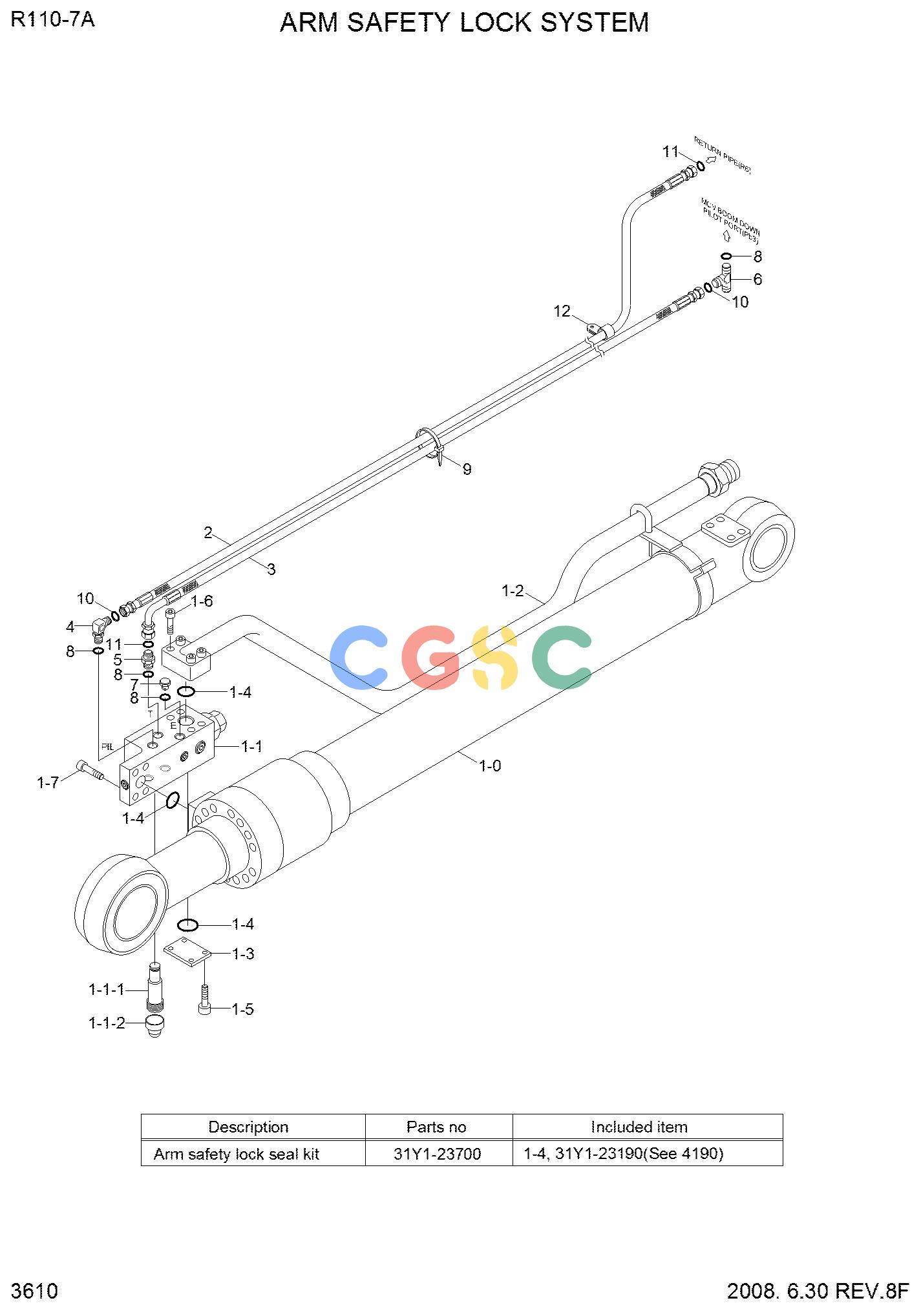

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 2. | 32E6-0002 | [2] | BLOCK | |
| 3. | 31N4-60230 | [2] | HOSE ASSY | |
| 4. | 31N4-60250 | [2] | HOSE ASSY | |
| 5. | X500-110004 | [2] | CONNECTOR-ORFS | |
| 6. | S631-024001 | [4] | O-RING | |
| 7. | S621-018001 | [4] | O-RING | |
| 8. | S017-100556 | [8] | BOLT-HEX | |
| 9. | S411-100006 | [8] | WASHER-SPRING | |
| 10. | S651-810002 | [1] | NIPPLE-GREASE | |
| 11. | S653-810002 | [1] | NIPPLE-GREASE | |
| 12. | X520-110004 | [2] | ELBOW-90,ORFS |
