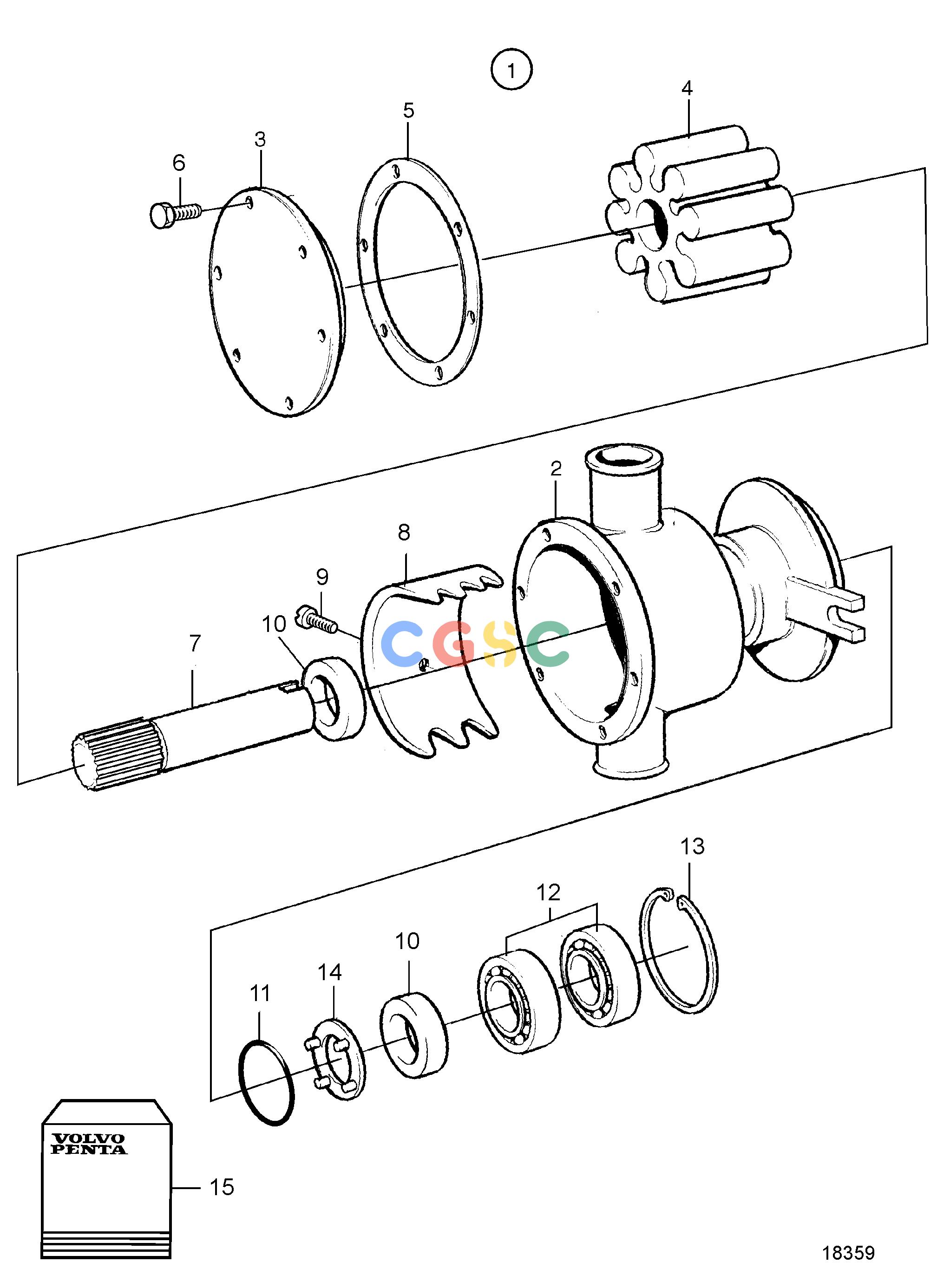

沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-ACooling SystemSea Water Pump, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
397 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
860629
|
[1] |
Sea water pump
|
|
| 2. |
|
|
|
|
| 3. |
860751
|
[1] |
Cap
|
Included in overhaul kit
|
| 4. |
|
|
|
Included in impeller kit.
|
| 5. |
808275
|
[1] |
Gasket
|
Included in impeller kit.
|
| 6. |
21951334
|
[1] |
Screw kit
|
Included in overhaul kit.
|
| 7. |
|
|
|
Included in overhaul kit.
|
| 8. |
827011
|
[1] |
Cam
|
Included in overhaul kit.
|
| 9. |
808285
|
[1] |
Screw
|
Included in overhaul kit.
|
| 10. |
827247
|
[2] |
Sealing ring
|
Included in overhaul kit.
|
| 11. |
960166
|
[1] |
O-ring
|
Included in overhaul kit.
|
| 12. |
11010
|
[2] |
Ball bearing
|
Included in overhaul kit.
|
| 13. |
914523
|
[1] |
Snap ring
|
Included in overhaul kit.
|
| 14. |
844580
|
[1] |
Support washer
|
|
| 15. |
877373
|
[1] |
Repair kit
|
See group 99
|
| 15. |
3841697
|
[1] |
Impeller kit
|
See group 99
|
