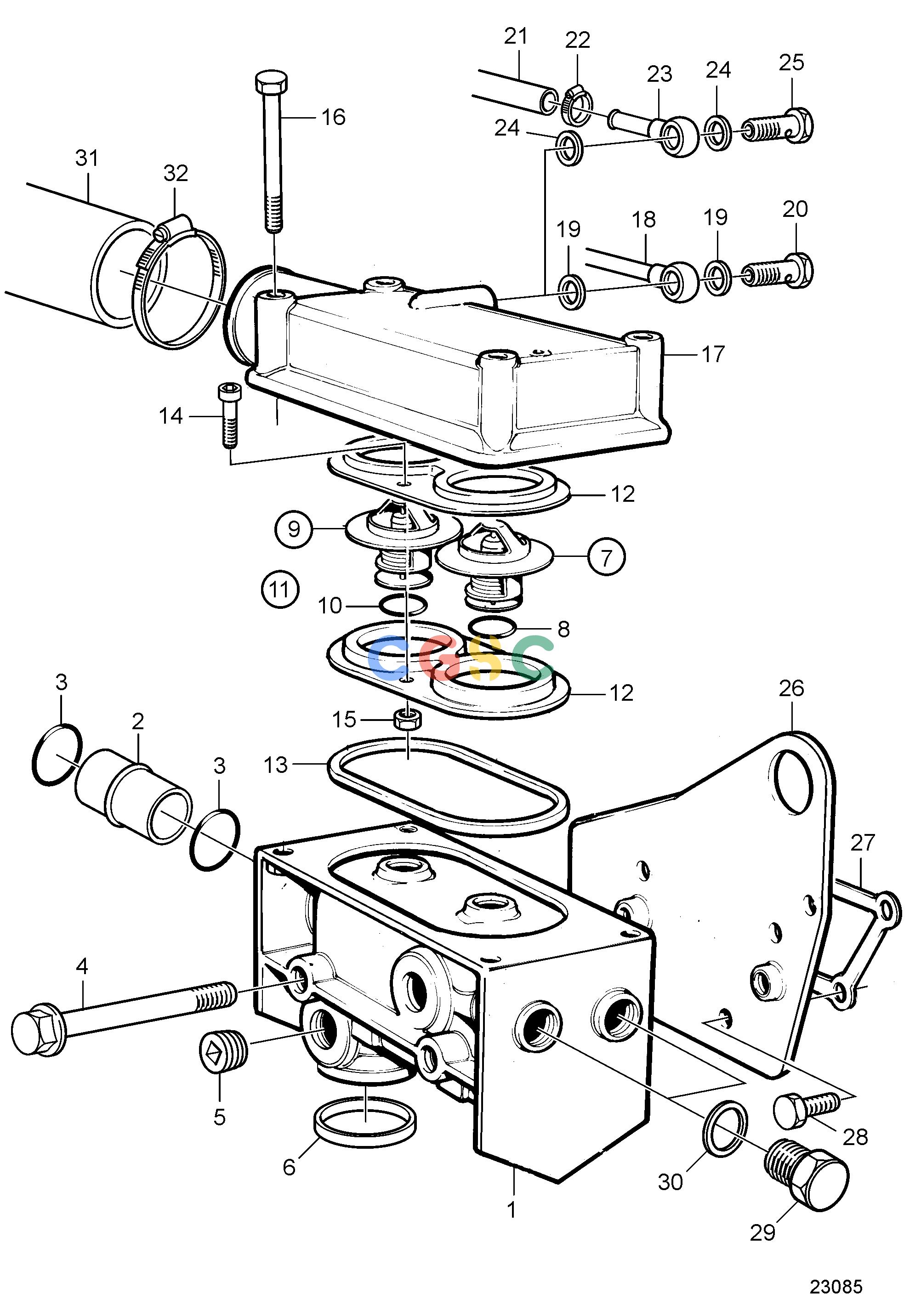

沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-ACooling SystemThermostat HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
378 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3583098
|
[1] |
Thermostat housing
|
(838704)
|
| 2. |
838739
|
[1] |
Adapter
|
|
| 3. |
968927
|
[2] |
O-ring
|
|
| 4. |
965183
|
[2] |
Flange screw
|
|
| 5. |
479977
|
[2] |
Plug
|
|
| 6. |
3583913
|
[1] |
Sealing ring
|
(1542198)
|
| 7. |
3831424
|
[1] |
Thermostat kit
|
81°C (876128)
|
| 8. |
416033
|
[1] |
Sealing ring
|
|
| 9. |
3831424
|
[1] |
Thermostat kit
|
81°C (875849)
|
| 10. |
416033
|
[1] |
Sealing ring
|
|
| 11. |
876145
|
[1] |
Retainer kit
|
|
| 12. |
859229
|
[2] |
Retainer
|
|
| 13. |
838807
|
[1] |
Sealing ring
|
|
| 14. |
963554
|
[2] |
Hexagon screw
|
|
| 15. |
966170
|
[2] |
Lock nut
|
|
| 16. |
965217
|
[4] |
Flange screw
|
|
| 17. |
860214
|
[1] |
Air vent hose
|
|
| 18. |
942700
|
[1] |
Hose
|
Expansion tank-thermostat housing., For earlier version of expansion tank.
|
| 19. |
11994
|
[2] |
Gasket
|
|
| 20. |
969299
|
[1] |
Hollow screw
|
|
| 21. |
942700
|
[1] |
Hose
|
Expansion tank-thermostat housing., For later version of expansion tank., L=440mm
|
| 22. |
945652
|
[1] |
Hose clamp
|
|
| 23. |
858750
|
[1] |
Banjo nipple
|
|
| 24. |
11994
|
[2] |
Gasket
|
|
| 25. |
969299
|
[1] |
Hollow screw
|
|
| 26. |
860518
|
[1] |
Adapter
|
|
| 27. |
1542187
|
[1] |
Gasket
|
|
| 28. |
955295
|
[4] |
Hexagon screw
|
|
| 29. |
960632
|
[1] |
Plug
|
|
| 30. |
11998
|
[1] |
Gasket
|
|
| 31. |
861111
|
[1] |
Hose
|
Thermostat housing-heat exchanger.
|
| 32. |
943478
|
[1] |
Hose clamp
|
|
