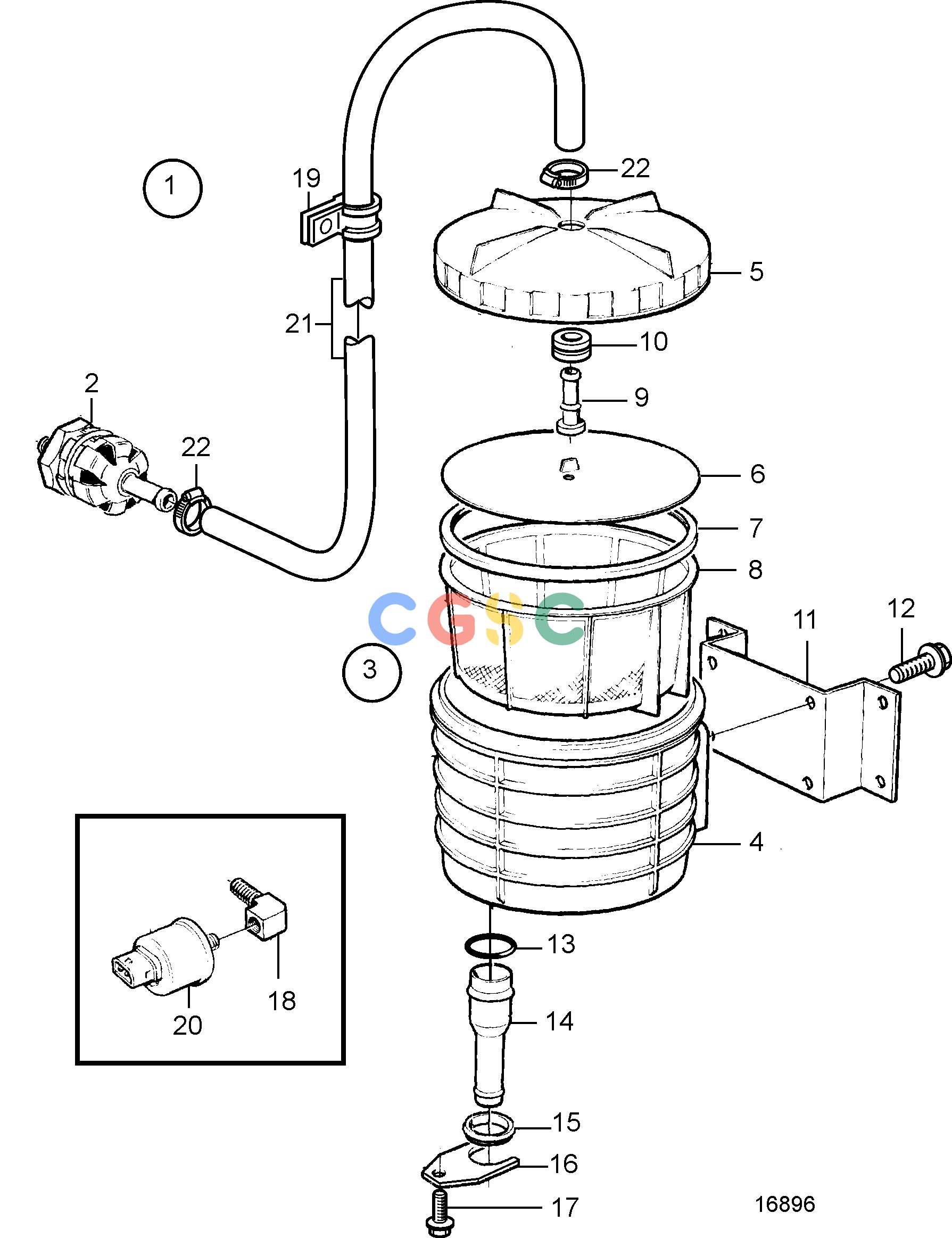

沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-ACooling SystemVacuum Valve and Sea Water FilterEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
254 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21219680
|
[1] |
Vacuum valve kit
|
|
| 2. |
3581358
|
[1] |
Valve
|
|
| 3. |
3581440
|
[1] |
Strainer
|
|
| 4. |
845338
|
[1] |
Strainer housing
|
|
| 5. |
3581440
|
[1] |
Strainer
|
|
| 6. |
3581437
|
[1] |
Pressure plate
|
|
| 7. |
838977
|
[1] |
Seal
|
|
| 8. |
858081
|
[1] |
Strainer
|
|
| 9. |
3581439
|
[1] |
Hose nipple
|
|
| 10. |
843109
|
[1] |
Bushing
|
|
| 11. |
845960
|
[1] |
Bracket
|
|
| 12. |
940199
|
[4] |
Hexagon screw
|
|
| 13. |
845354
|
[2] |
Sealing ring
|
|
| 14. |
21147617
|
[1] |
Connecting pipe
|
L=80mm, (847106)
|
| 14. |
21147616
|
[1] |
Connecting pipe
|
L=125mm, (838582)
|
| 15. |
847017
|
[2] |
Pipe retainer
|
|
| 16. |
21212198
|
[2] |
Retainer
|
(847018)
|
| 17. |
940199
|
[2] |
Hexagon screw
|
|
| 18. |
16218
|
[1] |
Elbow nipple
|
|
| 19. |
952630
|
[2] |
Clamp
|
|
| 20. |
|
|
|
See group 30
|
| 21. |
943367
|
[1] |
Rubber hose
|
|
| 22. |
961663
|
[2] |
Hose clamp
|
|
