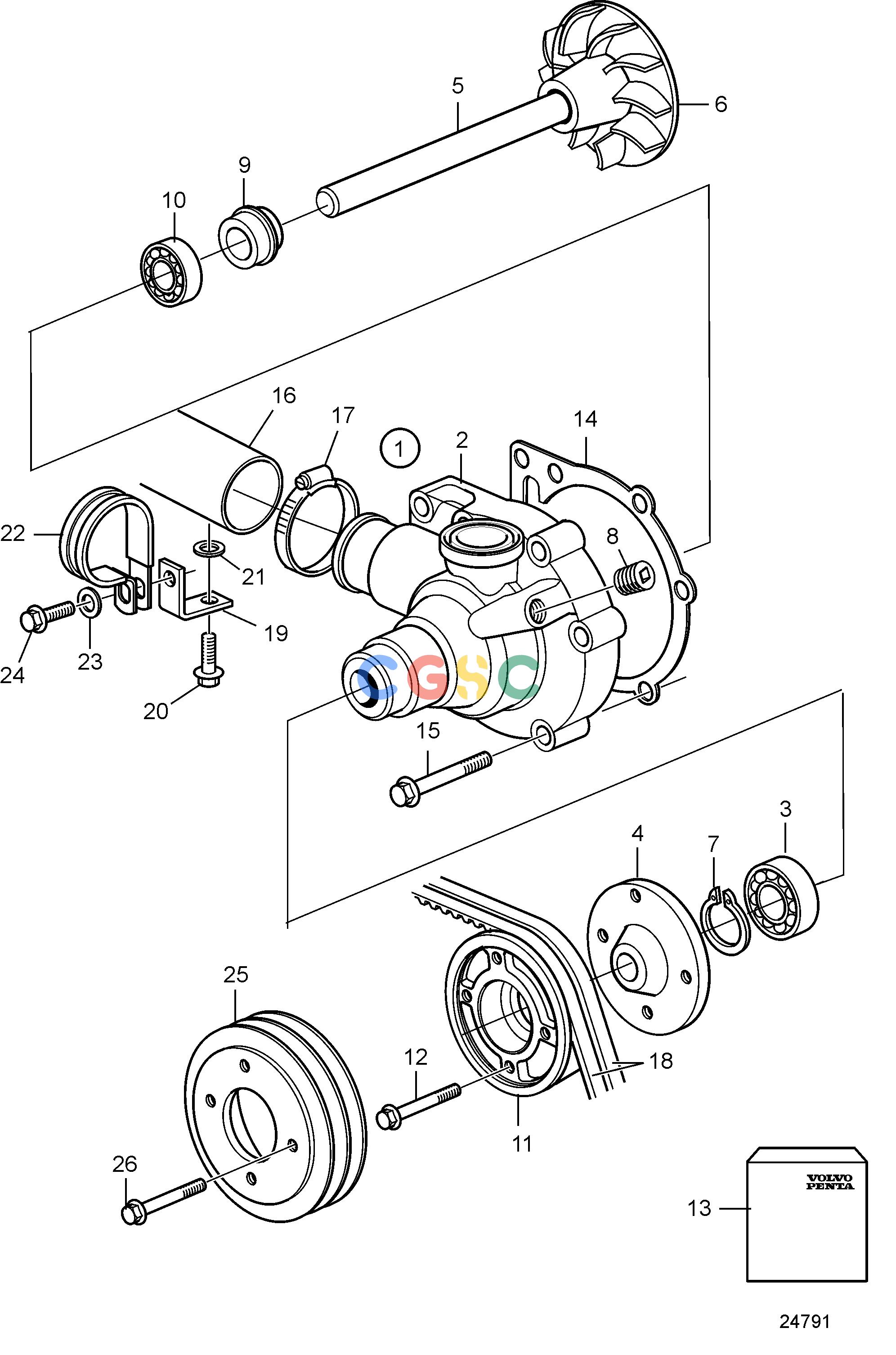

沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-ACooling SystemWater PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
129 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3580777
|
[1] |
Water pump
|
Replaced by 1 pc 3809412, coolant pump, 1 pc 3588383, pulley and 4 pcs 946173, flange screw.
|
| 1. |
3809412
|
[1] |
Water pump
|
|
| 1. |
3803869
|
[1] |
Coolant pump
|
|
| 2. |
|
|
|
|
| 3. |
184861
|
[1] |
Ball bearing
|
Included in overhaul kit., For water pump 3809412
|
| 4. |
3588402
|
[1] |
Hub
|
Included in overhaul kit., For water pump 3809412
|
| 5. |
|
|
|
Included in overhaul kit.
|
| 6. |
3583087
|
[1] |
Impeller
|
Included in overhaul kit., For water pump 3809412
|
| 7. |
914462
|
[1] |
Snap ring
|
Included in overhaul kit.
|
| 8. |
479977
|
[1] |
Plug
|
|
| 9. |
1676432
|
[1] |
Sealing ring
|
Included in overhaul kit.
|
| 10. |
1660609
|
[1] |
Ball bearing
|
Included in overhaul kit.
|
| 11. |
1542235
|
[1] |
Pulley
|
For water pump 3580777
|
| 12. |
946173
|
[4] |
Flange screw
|
For water pump 3580777
|
| 13. |
876793
|
[1] |
Repair kit
|
For water pump 3580777
|
| 13. |
877385
|
[1] |
Repair kit
|
For water pump 3809412
|
| 14. |
859027
|
[1] |
Gasket
|
|
| 15. |
947760
|
[6] |
Flange screw
|
|
| 16. |
861279
|
[1] |
Hose
|
Heat exchanger-expansion tank-water pump., For earlier version of expansion tank.
|
| 16. |
3581097
|
[1] |
Hose
|
Heat exchanger-expansion tank-water pump., For later version of expansion tank.
|
| 17. |
943478
|
[1] |
Hose clamp
|
|
| 18. |
966978
|
[1] |
V-belt
|
|
| 19. |
846780
|
[1] |
Bracket
|
|
| 20. |
965181
|
[1] |
Flange screw
|
|
| 21. |
955894
|
[1] |
Washer
|
|
| 22. |
952635
|
[1] |
Clamp
|
|
| 23. |
955893
|
[1] |
Washer
|
|
| 24. |
948746
|
[1] |
Flange screw
|
|
| 25. |
3588383
|
[1] |
Pulley
|
Late type
|
| 26. |
946173
|
[4] |
Flange screw
|
Late type
|
