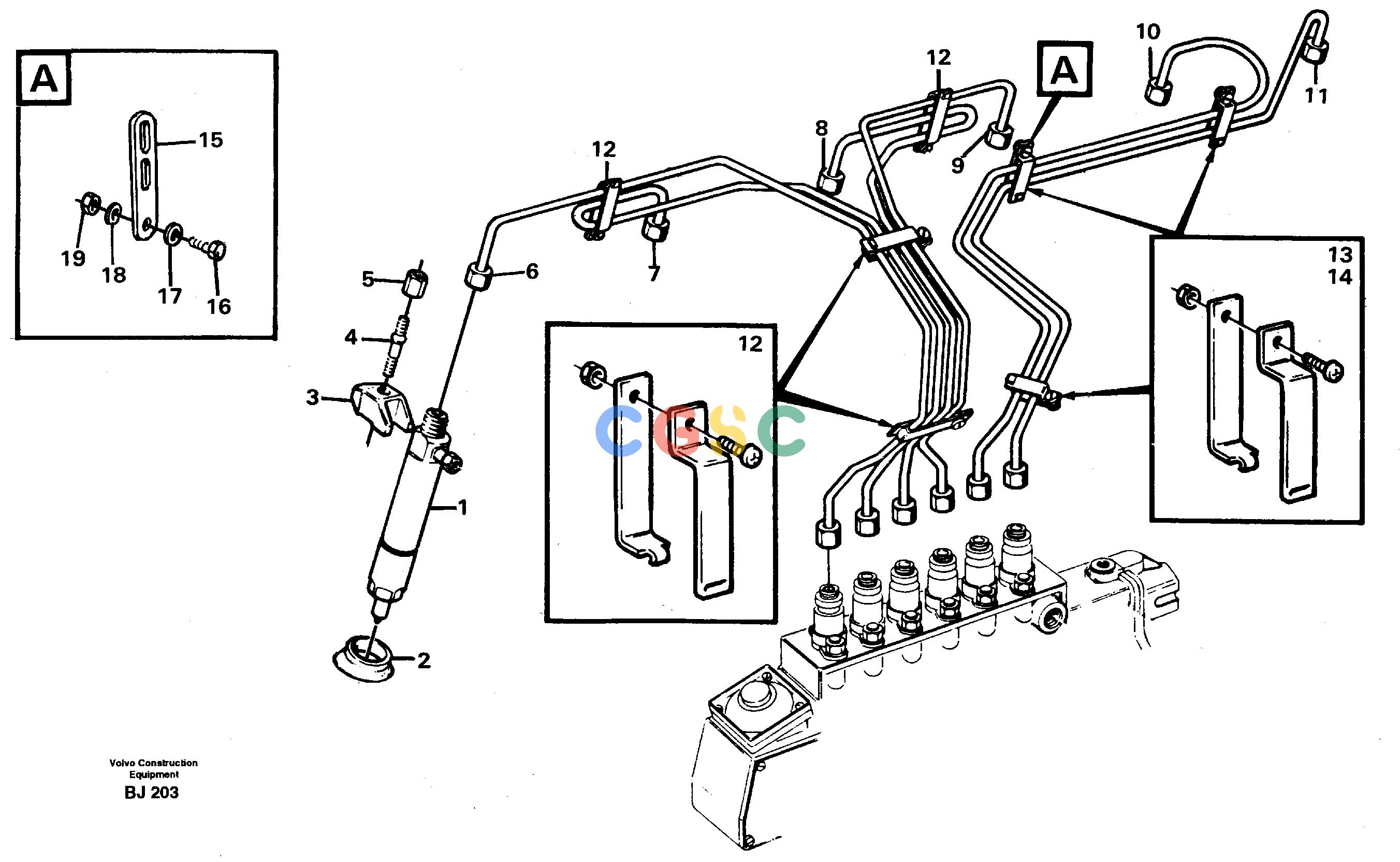

沃尔沃零件查询A30C VOLVO BM Delivery pipe - injectorVOLVO BM A30C SER NO - 2320/- 2275, USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
639 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[6] |
Injector
|
|
| 2. |
VOE469455
|
[6] |
Sealing ring
|
|
| 3. |
VOE469797
|
[6] |
Nozzle retainer
|
|
| 4. |
VOE1545022
|
[6] |
Stud
|
|
| 5. |
VOE13971095
|
[6] |
Flange nut
|
(971095)
|
| 6. |
VOE8194241
|
[1] |
Delivery pipe
|
|
| 7. |
VOE8194242
|
[1] |
Delivery pipe
|
|
| 8. |
VOE8194243
|
[1] |
Delivery pipe
|
|
| 9. |
VOE8194244
|
[1] |
Delivery pipe
|
|
| 10. |
VOE8194245
|
[1] |
Delivery pipe
|
|
| 11. |
VOE8194246
|
[1] |
Delivery pipe
|
|
| 12. |
VOE8194328
|
[3] |
Clamp
|
|
| 13. |
VOE8194327
|
[5] |
Clamp
|
|
| 14. |
VOE8194351
|
[1] |
Clamp
|
|
| 15. |
VOE13965535
|
[1] |
Bracket
|
(965535)
|
| 16. |
VOE950046
|
[1] |
Cross recessed screw
|
|
| 17. |
VOE955893
|
[2] |
Plain washer
|
|
| 18. |
VOE13941906
|
[2] |
Washer
|
(941906)
|
| 19. |
VOE955825
|
[1] |
Hexagon nut
|
|
