沃尔沃零件查询A30C VOLVO BM InjectorVOLVO BM A30C SER NO - 2320/- 2275, USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
696 次

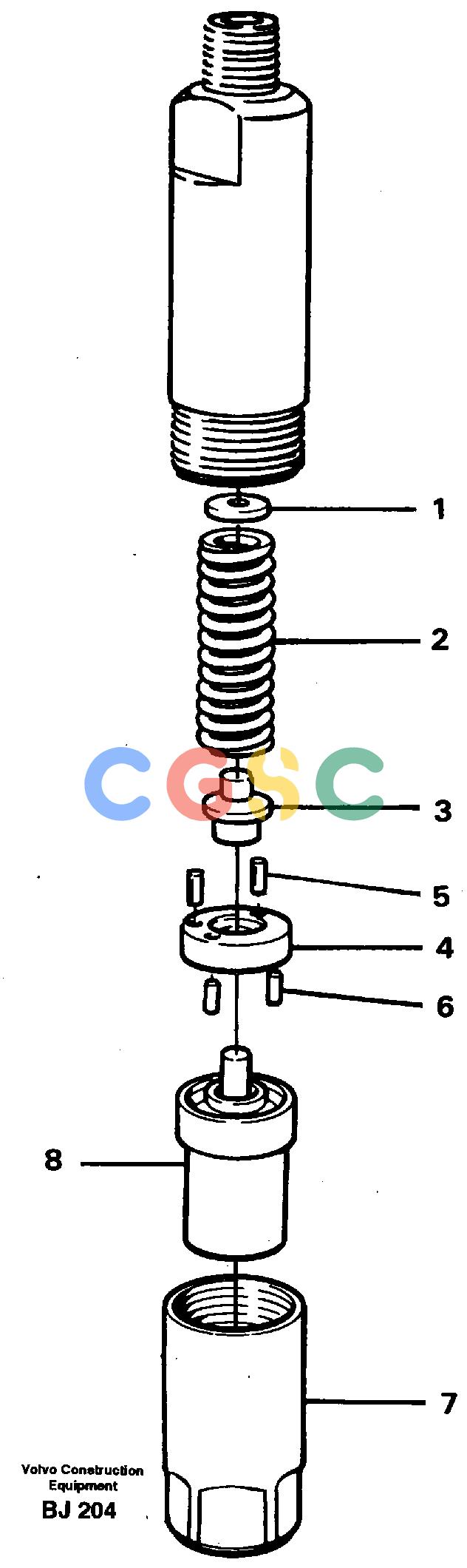

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE479443
|
[1] |
Injector
|
|
| |
VOE478607
|
[1] |
Nozzle retainer
|
|
| 1. |
VOE11700654
|
[REQ] |
Shim
|
THICK=1,00MM (244797)
|
| |
VOE11701280
|
[REQ] |
Shim
|
THICK=1,04MM (244798)
|
| |
VOE3094407
|
[REQ] |
Shim
|
THICK=1,08MM (244788)
|
| |
VOE11701085
|
[REQ] |
Shim
|
THICK=1,12MM (244804)
|
| |
VOE3094408
|
[REQ] |
Shim
|
THICK=1,16MM (244801)
|
| |
VOE846963
|
[REQ] |
Adjusting washer
|
THICK=1,18MM
|
| |
VOE11701282
|
[REQ] |
Shim
|
THICK=1,20MM (244799)
|
| |
VOE11700776
|
[REQ] |
Shim
|
THICK=1,24MM (244805)
|
| |
VOE11701049
|
[REQ] |
Shim
|
THICK=1,28MM (244807)
|
| |
VOE11701106
|
[REQ] |
Shim
|
THICK=1,32MM (244789)
|
| |
VOE846966
|
[REQ] |
Adjusting washer
|
THICK=1,38MM
|
| |
VOE244800
|
[REQ] |
Shim
|
THICK=1,40MM (244800)
|
| |
VOE11700690
|
[REQ] |
Shim
|
THICK=1,44MM (244790)
|
| |
VOE11701281
|
[REQ] |
Shim
|
THICK=1,48MM (244802)
|
| |
VOE11701783
|
[REQ] |
Shim
|
THICK=1,52MM (244791)
|
| |
VOE11700728
|
[REQ] |
Shim
|
THICK=1,54MM (846954)
|
| |
VOE11700653
|
[REQ] |
Shim
|
THICK=1,56MM (244792)
|
| |
VOE11700835
|
[REQ] |
Shim
|
THICK=1,60MM (244793)
|
| |
VOE11701162
|
[REQ] |
Shim
|
THICK=1,64MM (244806)
|
| |
VOE11700126
|
[REQ] |
Shim
|
THICK=1,68MM (244803)
|
| |
VOE3094477
|
[REQ] |
Shim
|
THICK=1,72MM
|
| |
VOE6213408
|
[REQ] |
Shim
|
THICK=1,76MM (244812)
|
| |
VOE11701050
|
[REQ] |
Shim
|
THICK=1,80MM (6213454)
|
| |
VOE244808
|
[REQ] |
Shim
|
THICK=1,84MM
|
| |
VOE6213409
|
[REQ] |
Shim
|
THICK=1,88MM
|
| |
VOE244795
|
[REQ] |
Shim
|
THICK=1,92MM (244795)
|
| |
VOE3094467
|
[REQ] |
Shim
|
THICK=1,96MM
|
| 2. |
VOE244820
|
[1] |
Compression spring
|
|
| 3. |
VOE3094597
|
[1] |
Push rod
|
|
| 4. |
VOE1698513
|
[1] |
Washer
|
|
| 5. |
VOE844339
|
[2] |
Pin
|
|
| 6. |
VOE244447
|
[2] |
Pin
|
|
| 7. |
VOE3092030
|
[1] |
Nut
|
|
| 8. |
VOE479444
|
[1] |
Nozzle
|
|
