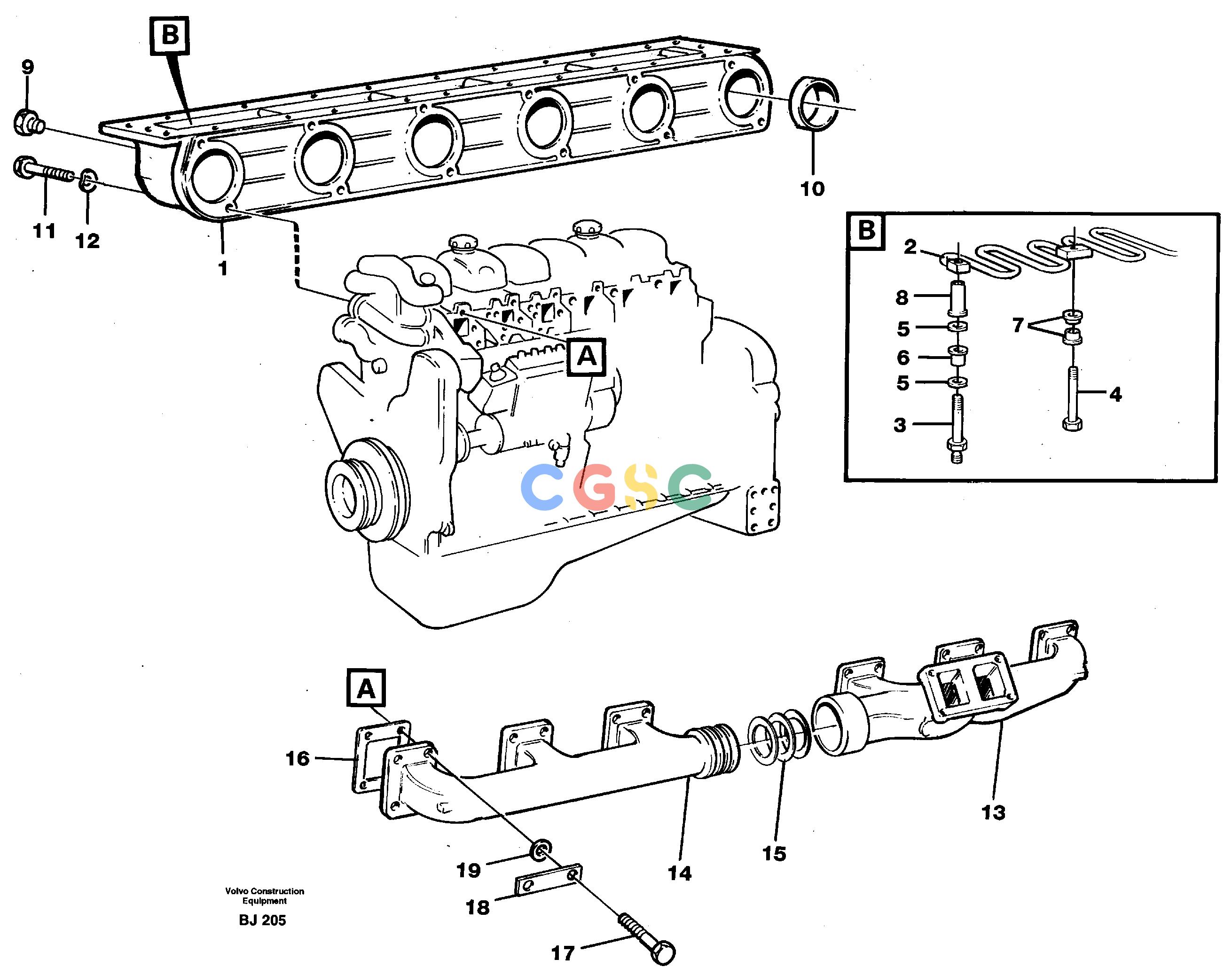

沃尔沃零件查询A30C VOLVO BM Inlet manifold and exhaust manifoldVOLVO BM A30C SER NO - 2320/- 2275, USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
444 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE469806
|
[1] |
Inlet Pipe
|
|
| 2. |
VOE469807
|
[1] |
Heater
|
|
| 3. |
VOE469989
|
[1] |
Terminal screw
|
|
| 4. |
VOE955303
|
[8] |
Hexagon screw
|
|
| 5. |
VOE13949041
|
[9] |
Washer
|
|
| 6. |
VOE468511
|
[1] |
Bushing
|
|
| 7. |
VOE846893
|
[16] |
Bushing
|
|
| 8. |
VOE469909
|
[9] |
Bushing
|
|
| 9. |
VOE479979
|
[1] |
Plug
|
|
| 10. |
VOE469829
|
[6] |
Sealing ring
|
|
| 11. |
VOE955530
|
[4] |
Hexagon screw
|
L=83MM
|
| |
VOE955531
|
[2] |
Hexagon screw
|
L=89MM
|
| |
VOE959793
|
[6] |
Hexagon screw
|
L=114MM
|
| 12. |
VOE13941907
|
[12] |
Washer
|
|
| 13. |
VOE1545326
|
[1] |
Exhaust pipe
|
|
| 14. |
VOE1545028
|
[1] |
Exhaust pipe
|
|
| 15. |
VOE1545109
|
[2] |
Sealing ring
|
|
| |
VOE471219
|
[1] |
Sealing ring
|
|
| 16. |
VOE479107
|
[6] |
Gasket
|
|
| 17. |
VOE945698
|
[24] |
Screw
|
|
| 18. |
VOE13966717
|
[12] |
Tab washer
|
|
| 19. |
VOE941744
|
[23] |
Washer
|
|
