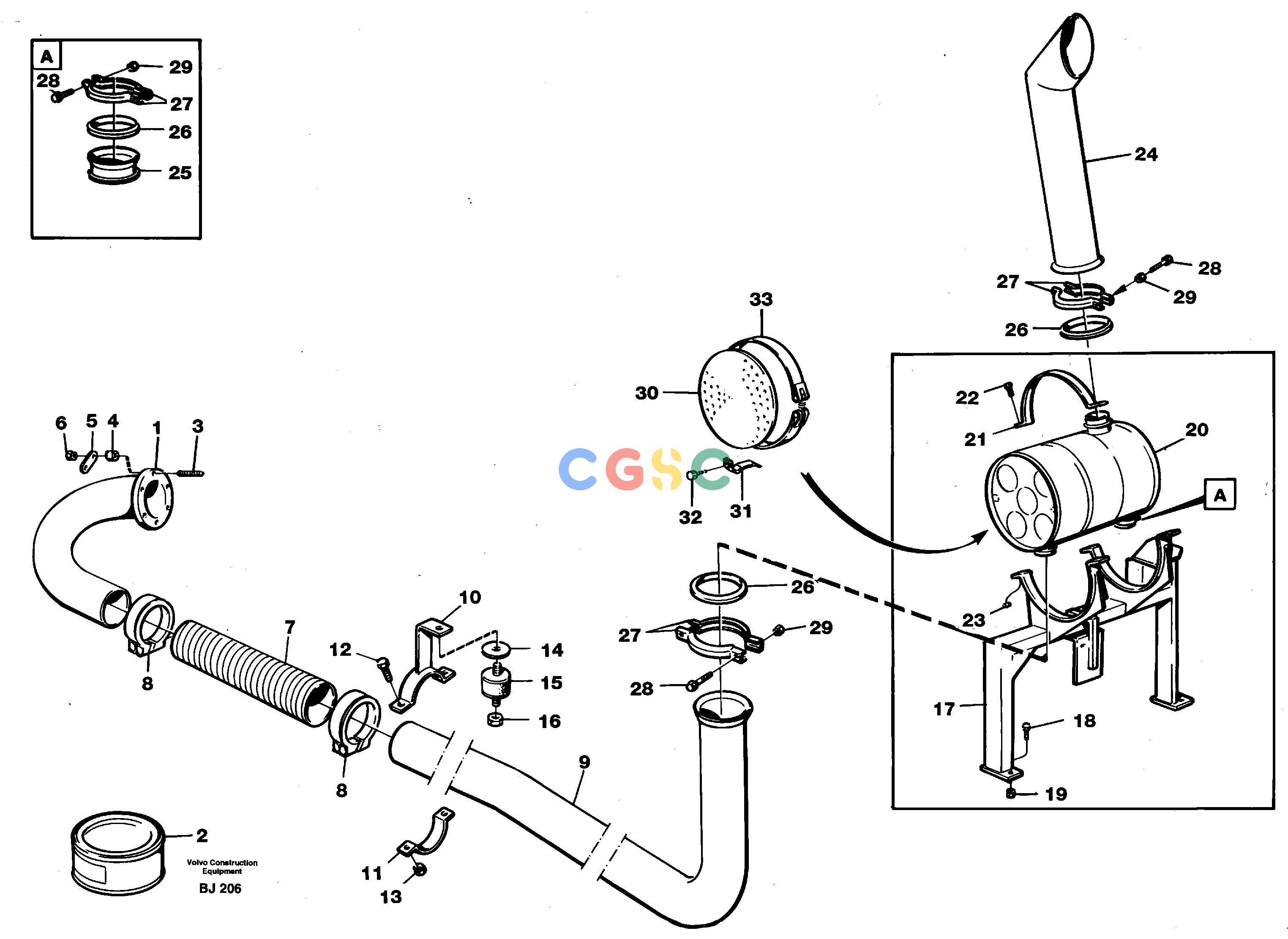

沃尔沃零件查询A30C VOLVO BM Exhaust system, silencerVOLVO BM A30C SER NO - 2320/- 2275, USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
585 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11033135
|
[1] |
Exhaust pipe
|
|
| |
VOE424632
|
[1] |
Gasket
|
|
| 2. |
VOE591247
|
[REQ] |
Sealant
|
|
| 3. |
VOE955304
|
[6] |
Hexagon screw
|
|
| 4. |
VOE13949873
|
[6] |
Spacer washer
|
|
| 5. |
VOE949870
|
[3] |
Tab washer
|
|
| 6. |
VOE946330
|
[6] |
Hexagon nut
|
|
| 7. |
VOE1609345
|
[1] |
Hose
|
|
| 8. |
VOE3943850
|
[2] |
Clamp
|
|
| 9. |
VOE4970735
|
[1] |
Exhaust pipe
|
|
| 10. |
VOE4970736
|
[1] |
Clamp
|
|
| 11. |
VOE967706
|
[1] |
Clamp
|
|
| 12. |
VOE13965185
|
[2] |
Screw
|
|
| 13. |
VOE13971098
|
[2] |
Flange nut
|
|
| 14. |
VOE11053667
|
[2] |
Gasket
|
|
| 15. |
VOE11110276
|
[1] |
Rubber cushion
|
|
| 16. |
VOE971096
|
[2] |
Flange nut
|
|
| 17. |
VOE11052498
|
[1] |
Bracket
|
|
| 18. |
VOE60113111
|
[4] |
Flange screw
|
|
| 19. |
VOE971099
|
[4] |
Flange lock nut
|
|
| 20. |
VOE11056174
|
[1] |
Silencer
|
|
| 21. |
VOE4943025
|
[2] |
Tensioning band
|
|
| 22. |
VOE13947760
|
[4] |
Screw
|
|
| 23. |
VOE13945408
|
[4] |
Nut
|
|
| 24. |
VOE4970586
|
[1] |
End pipe
|
|
| 25. |
VOE4970620
|
[1] |
Cap
|
|
| 26. |
VOE1577704
|
[3] |
Sealing ring
|
|
| 27. |
VOE11056190
|
[6] |
Clamp
|
|
| 28. |
VOE13965179
|
[6] |
Screw
|
|
| 29. |
VOE13945408
|
[6] |
Nut
|
|
| 30. |
VOE1605164
|
[1] |
Protecting plate
|
|
| 31. |
VOE11054481
|
[4] |
Anchorage
|
|
| 32. |
VOE13946173
|
[4] |
Screw
|
|
| 33. |
VOE11050442
|
[1] |
Clamp
|
|
