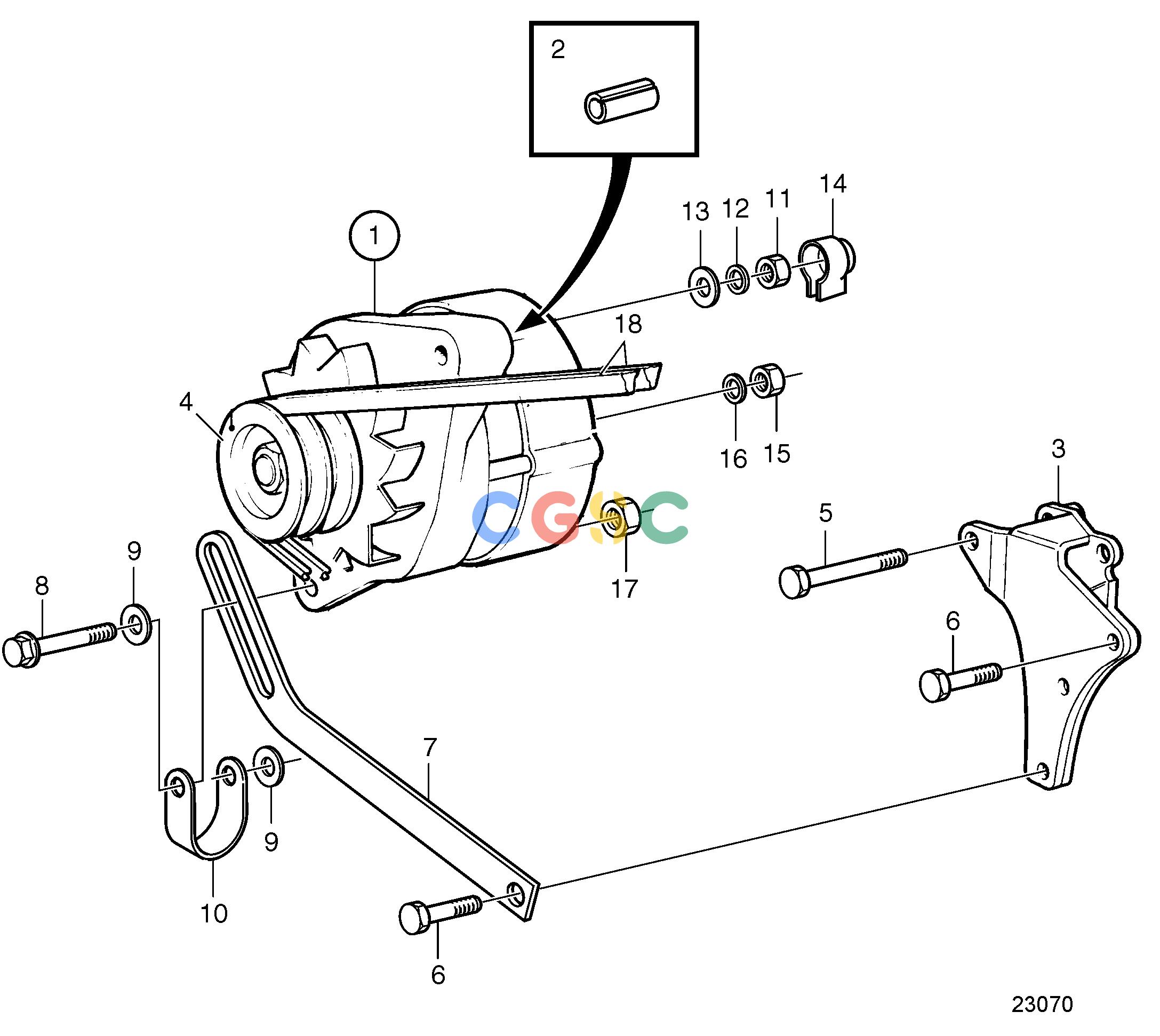

沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-AElectrical SystemAlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
136 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
872235
|
[1] |
Alternator
|
14V 60A
|
| 1. |
3803260
|
[1] |
Alternator, exch
|
14V 60A
|
| 1. |
|
|
|
|
| 1. |
872021
|
[1] |
Alternator
|
28V 60A, repl by 873757
|
| 1. |
873757
|
[1] |
Alternator
|
28V 60A, repl by 873771
|
| 1. |
873771
|
[1] |
Alternator
|
28V 60A
|
| 1. |
3803443
|
[1] |
Alternator, exch
|
28V 60A
|
| 2. |
1610144
|
[1] |
Spring pin
|
|
| 3. |
860271
|
[1] |
Bracket
|
|
| 4. |
841812
|
[1] |
Pulley
|
|
| 5. |
955554
|
[1] |
Hexagon screw
|
|
| 6. |
973924
|
[1] |
Flange screw
|
L=50mm
|
| 6. |
965182
|
[2] |
Flange screw
|
L=80mm
|
| 6. |
969189
|
[1] |
Flange screw
|
L=85mm
|
| 7. |
835352
|
[1] |
Tensioner
|
|
| 8. |
947760
|
[1] |
Flange screw
|
|
| 9. |
955893
|
[2] |
Washer
|
|
| 10. |
466735
|
[1] |
Tensioning loop
|
|
| 11. |
955781
|
[1] |
Hexagon nut
|
|
| 12. |
949607
|
[1] |
Spring washer
|
|
| 13. |
960140
|
[1] |
Washer
|
|
| 14. |
1234326
|
[1] |
Protecting casing
|
|
| 15. |
965483
|
[1] |
Flange nut
|
|
| 16. |
941905
|
[1] |
Spring washer
|
|
| 17. |
945407
|
[1] |
Flange nut
|
|
| 18. |
966978
|
[1] |
V-belt
|
|
