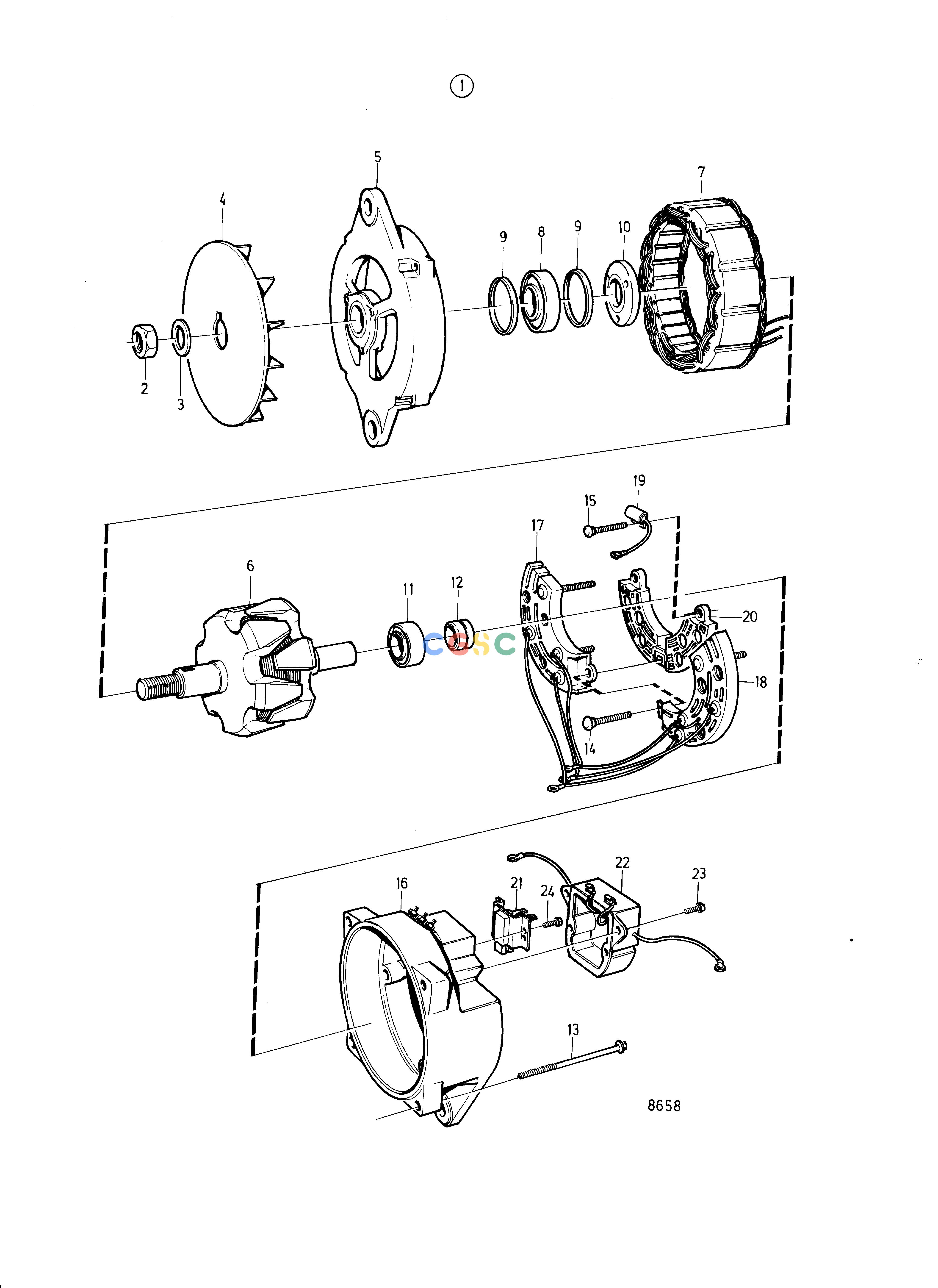

沃尔沃零件查询AD31L-A; AD31P-A; AD41L-A; AD41P-A; D41L-A; TAMD31L-A; TAMD31M-A; TAMD31P-A; TAMD31S-A; TAMD41H-A; TAMD41H-B; TAMD41P-A; TAMD41L-A; TAMD41M-AElectrical SystemAlternator 14V 130A, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
664 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
849747
|
[1] |
Alternator
|
14V, 130A
|
| 1. |
3803577
|
[1] |
Alternator
|
14V, 130A
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
862528
|
[1] |
Rotor
|
|
| 7. |
862529
|
[1] |
Stator
|
|
| 8. |
862509
|
[1] |
Bearing
|
|
| 9. |
862532
|
[2] |
Seal
|
|
| 10. |
|
|
|
|
| 11. |
862533
|
[1] |
Bearing
|
|
| 12. |
862511
|
[1] |
Slip ring
|
|
| 13. |
|
|
|
|
| 14. |
|
|
|
|
| 15. |
|
|
|
|
| 16. |
|
|
|
|
| 17. |
862534
|
[1] |
Diode
|
Pos
|
| 18. |
862535
|
[1] |
Rectifier diode
|
Neg
|
| 19. |
|
|
|
|
| 20. |
|
|
|
|
| 21. |
862536
|
[1] |
Brush set
|
|
| 22. |
862539
|
[1] |
Governor
|
|
| 23. |
|
|
|
|
| 24. |
|
|
|
|
