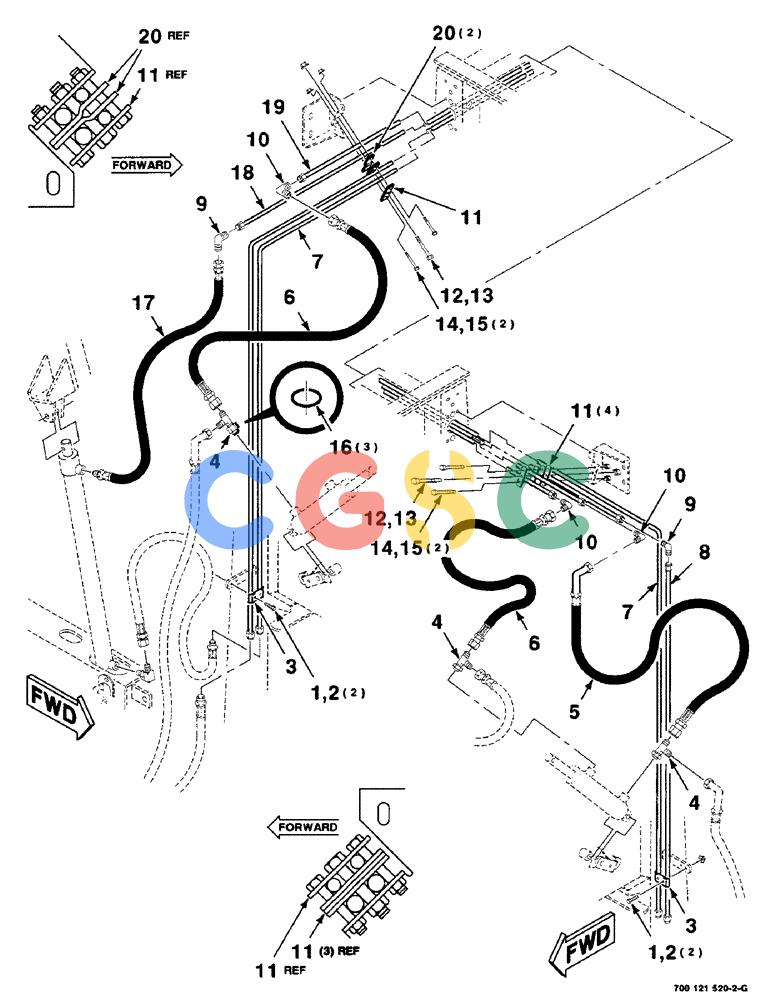

| 1. |
413-520
|
[4] |
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
|
CAS
5/16-18 X 1-1/4 C Superseded by part number: 87657
|
| 2. |
231-5145
|
[4] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 3. |
700116034
|
[2] |
CLAMP
|
HFI
- line
|
| 4. |
218-5243
|
[3] |
TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
Straight run (Includes item 16) 9/16"-18, 37º x 9/16"-18, O-Ring Run Superseded by part number: 86513020
|
| 5. |
700707286
|
[1] |
HOSE
|
CAS
- hydraulic
|
| 6. |
8042715
|
[2] |
HYDRAULIC HOSE,9.65 mm ID x 787.00 mm, SAE 100R1,SAE J517,SAE J343,SAE J516
|
CAS
9.65 mm ID x 787.00 mm, SAE 100R1,SAE J517,SAE J343,SAE J516
|
| 7. |
700709922
|
[2] |
TUBE,12.7 mm OD, 1907, 880 mm Length
|
CAS
LINE - hydraulic
|
| 8. |
700708717
|
[1] |
TUBE,12.7 mm OD, 856 mm Length
|
CAS
LINE - hydraulic
|
| 9. |
218-474
|
[2] |
ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC
|
CAS
union 90º, 3/4"-16, 37º x 3/4"-16, 37º Superseded by part number: 216791
|
| 10. |
218-473
|
[3] |
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC
|
CAS
90 DEGREE ELBOW - union Superseded by part number: 241074
|
| 11. |
700118602
|
[5] |
STRAP
|
HFI
|
| 12. |
413-632
|
[2] |
BOLT,Hex, 3/8" - 16 x 2", Gr 5
|
CAS
Superseded by part number: 88436
|
| 13. |
231-4116
|
[2] |
NUT,3/8"-16, GB
|
CAS
3/8-16 HTLN GR/B Superseded by part number: 88902, E64197
|
| 14. |
413-432
|
[4] |
BOLT,Hex, 1/4" - 20 x 2", Gr 5
|
IH
Superseded by part number: 72187193, 87404
|
| 15. |
232-4114
|
[4] |
LOCK NUT,1/4"-20, GC
|
CAS
1/4-20 HTLN GR B Superseded by part number: 280129
|
| 16. |
738468
|
[3] |
O-RING
|
IH
|
| 17. |
700708714
|
[1] |
HOSE ASSY.
|
CAS
HOSE - hydraulic
|
| 18. |
700707434
|
[1] |
LINE
|
CAS
- hydraulic
|
| 19. |
700707435
|
[1] |
LINE
|
CAS
- hydraulic
|
| 20. |
700118605
|
[2] |
STRAP
|
HFI
|
