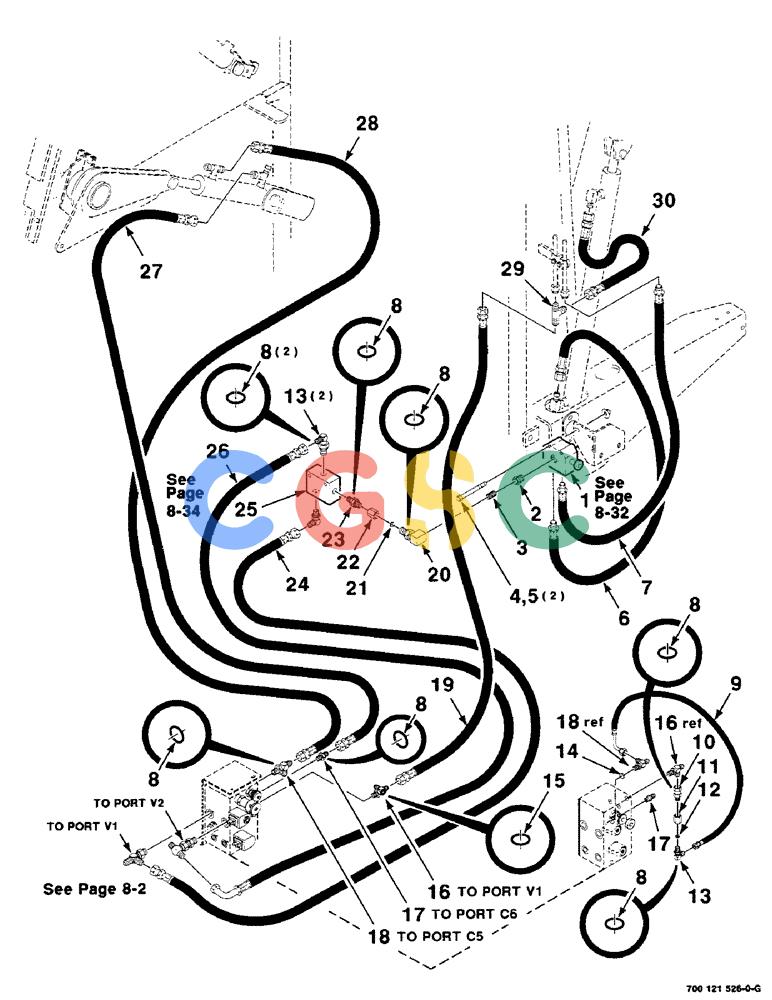

| 1. |
700704264
|
[1] |
VALVE
|
CAS
|
| 2. |
221-89
|
[1] |
REDUCER,Hex, 1/2" x 3/8" NPT
|
CAS
BUSHING - reducer Superseded by part number: 86625018
|
| 3. |
217-1081
|
[1] |
HYD CONNECTOR,3/8" - 18 NPTF
|
CAS
NIPPLE Superseded by part number: 72187013, 87041527
|
| 4. |
413-528
|
[2] |
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
|
CAS
Superseded by part number: 9707515, 72187200
|
| 5. |
231-5145
|
[2] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 6. |
700708927
|
[1] |
HYDRAULIC HOSE,9.65 mm ID x 850.00 mm, SAE 100R2
|
CAS
9.65 mm ID x 850.00 mm, SAE 100R2
|
| 7. |
700708929
|
[1] |
HYDRAULIC HOSE,9.65 mm ID x 1040.00 mm, SAE 100R2
|
CAS
9.65 mm ID x 1040.00 mm, SAE 100R2
|
| 8. |
738468
|
[8] |
O-RING
|
IH
|
| 9. |
700712460
|
[1] |
HOSE
|
CAS
- hydraulic
|
| 10. |
700709216
|
[1] |
ADAPTER
|
CAS
- swivel (includes item 8) Superseded by part number: 31-3087
|
| 11. |
700120630
|
[1] |
COUPLING
|
CAS
- special, plated
|
| 12. |
700712615
|
[1] |
ORIFICE
|
CAS
PLATE - orifice
|
| 13. |
218-5105
|
[3] |
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
(includes item 8) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring Superseded by part number: 76344, 72186128
|
| 14. |
700707872
|
[1] |
ORIFICE
|
CAS
- plate, .081
|
| 15. |
237-6008
|
[1] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
|
CAS
8-1, 90 Duro, .644" ID x .087" Thk Superseded by part number: 128825
|
| 16. |
700701638
|
[1] |
3 WAY CONNECTION
|
CAS
TEE - straight run (includes item 15) Superseded by part number: 265808, 128825
|
| 17. |
218-5057
|
[2] |
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
|
CAS
CONNECTOR - flared (includes item 8) Superseded by part number: 76350
|
| 18. |
218-5243
|
[1] |
TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
Straight run (Includes item 8) 9/16"-18, 37º x 9/16"-18, O-Ring Run Superseded by part number: 86513020
|
| 19. |
700711098
|
[1] |
HYDRAULIC HOSE,9.65 mm ID x 1100.00 mm, SAE J516
|
CAS
9.65 mm ID x 1100.00 mm, SAE J516
|
| 20. |
7791916
|
[1] |
ELBOW
|
CAS
(includes item 8)
|
| 21. |
700712162
|
[1] |
ORIFICE
|
CAS
|
| 23. |
700711972
|
[1] |
UNION
|
CAS
ADAPTOR (includes item 8)
|
| 24. |
700712518
|
[1] |
HYDRAULIC HOSE,9.65 mm ID x 950.00 mm, SAE 100R2, SAE J 517
|
CAS
9.65 mm ID x 950.00 mm, SAE 100R2, SAE J517
|
| 25. |
700712458
|
[1] |
VALVE
|
CAS
ASSEMBLY
|
| 27. |
1270453C1
|
[1] |
HYDRAULIC HOSE
|
IH
HOSE - hydraulic
|
| 28. |
7796287
|
[1] |
HOSE
|
CAS
- hydraulic
|
| 29. |
218-594
|
[1] |
TEE,3/4"-16, 37 Degree
|
CAS
- flared Superseded by part number: 72187027, 128996
|
| 30. |
700708926
|
[1] |
HYDRAULIC HOSE,9.65 mm ID x 600.00 mm, SAE 100R2
|
CAS
9.65 mm ID x 600.00 mm, SAE 100R2
|
