纽荷兰零件查询(F5CE5454B A005) - ENGINE 504387947 - 84230116 (10.501.AB) - HEAT EXCHANGER - ENGINE - EGR GROUP New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
1039 次

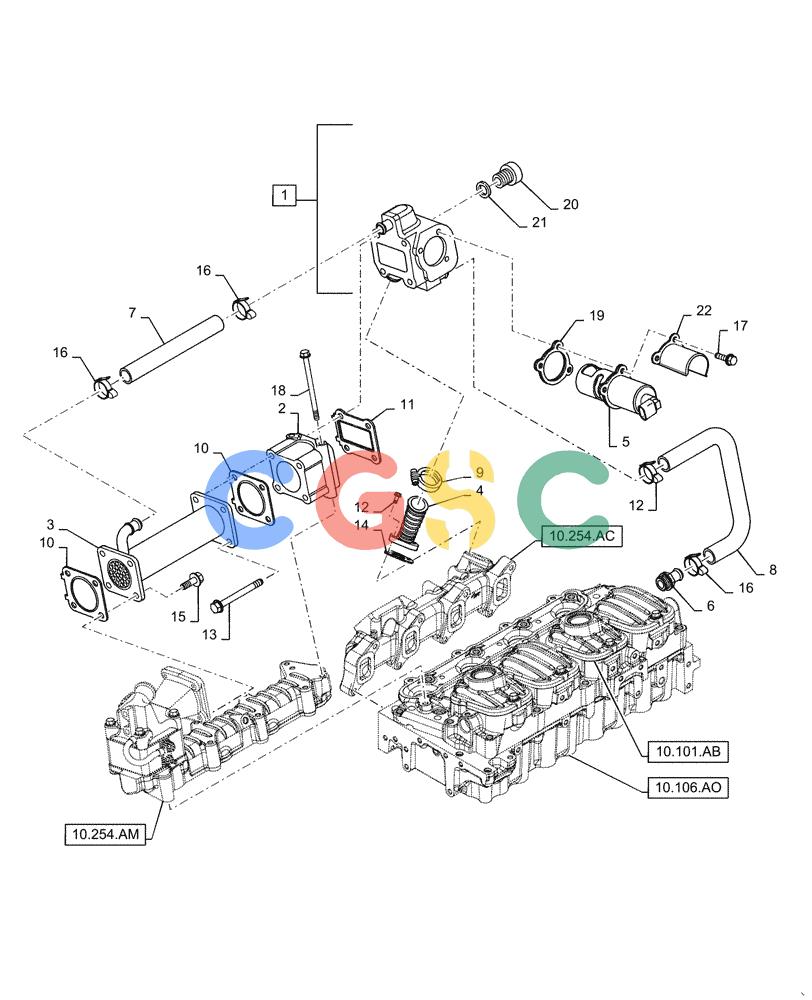

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 504357765 | [1] | BRACKET | TORIncl 20, 21 |
| 2. | 504385854 | [1] | BRACKET | TOR |
| 3. | 504250954 | [1] | HEAT EXCHANGER | TOR |
| 4. | 504220149 | [1] | JUNCTION | TOR |
| 5. | 8097663 | [1] | BY-PASS VALVE | TOR |
| 6. | 504249332 | [1] | FITTING | TOR |
| 7. | 504357767 | [1] | SLEEVE | TOR |
| 8. | 504357768 | [1] | SLEEVE | TOR |
| 9. | 504196032 | [1] | MOUNTING CLIP | TOR |
| 10. | 504221516 | [2] | GASKET | TOR |
| 11. | 504221515 | [1] | GASKET | TOR |
| 12. | 4798845 | [2] | BOLT,M8 x 1.25 x 16.50mm | TOR |
| 13. | 2852267 | [4] | FLANGE BOLT,Hex, M8 x 1.25 x 90mm | TOR Superseded by part number: 16598224 |
| 14. | 504341194 | [1] | GASKET | TOR |
| 15. | 16673735 | [4] | BOLT,Hex, M8 x 1.25 x 25mm | TOR Superseded by part number: 10278301 |
| 16. | 4893234 | [4] | HOSE CLAMP | TOR |
| 17. | 504367631 | [3] | BOLT,Flng, M6 x 18mm | TOR |
| 18. | 16598524 | [2] | SCREW,M8 x 120mm | TOR |
| 19. | 504225741 | [1] | GASKET | TOR |
| 20. | 10278301 | [1] | PLUG,M28 x 1.5 x 11, Brass | BAS Superseded by part number: 10278311 |
| 21. | 99432291 | [1] | GASKET,28mm ID | TOR Superseded by part number: 5801560863 |
| 22. | 504363071 | [1] | SCRAPER BLADE | TOR |
