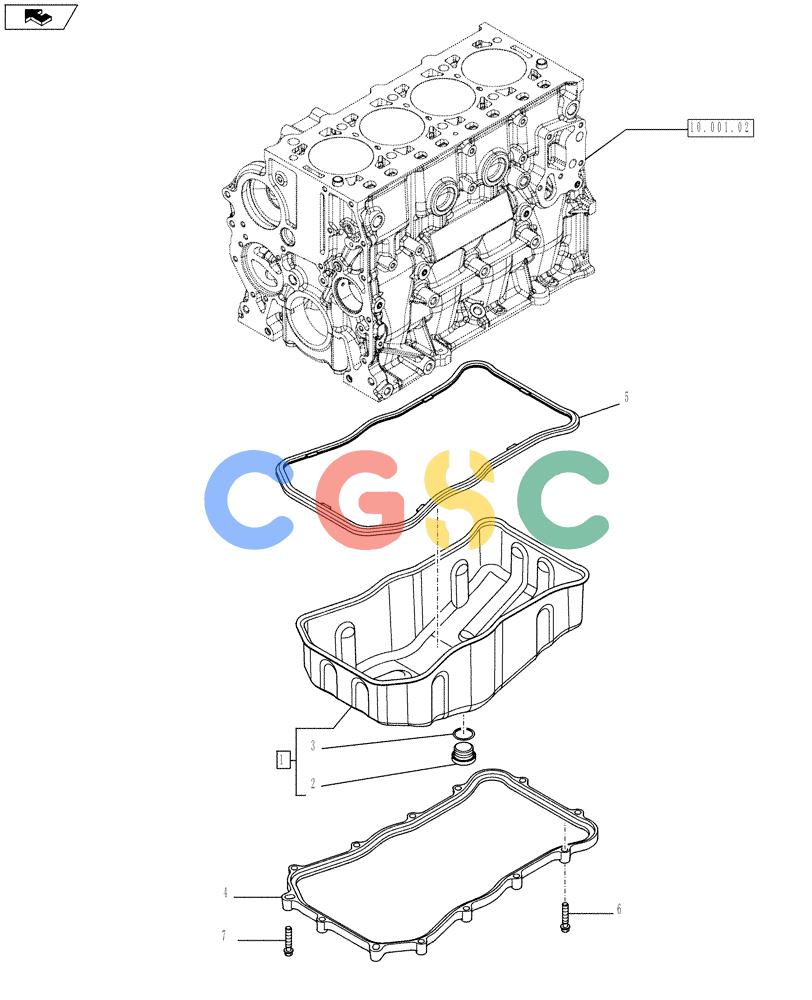

纽荷兰零件查询(F5CE5454C A003) - ENGINE 504387948 - 84171653 (10.102.01) - OIL SUMP & RELATED PARTS (504179441) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
202 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 504179445 | [1] | ENGINE OIL PAN | TOR- ASSY |
| 2. | 4894139 | [1] | PLUG,Hex Soc, M22 x 1.5 | TOR |
| 3. | 5135740 | [1] | O-RING,0.924" ID x 1.13" OD x 0.103" | TTF Superseded by part number: 14457780 |
| 4. | 504179442 | [1] | SPACER | TOR |
| 5. | 504179443 | [1] | OIL PAN GASKET SET | TOR |
| 6. | 16586625 | [11] | BOLT,M8 x 35mm | TORM8 x 35 mm |
| 7. | 504049517 | [2] | SCREW | TORM10 x 1,5 x 90 |
