斗山零件查询MAIN PIPING - TWO WAY DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
995 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

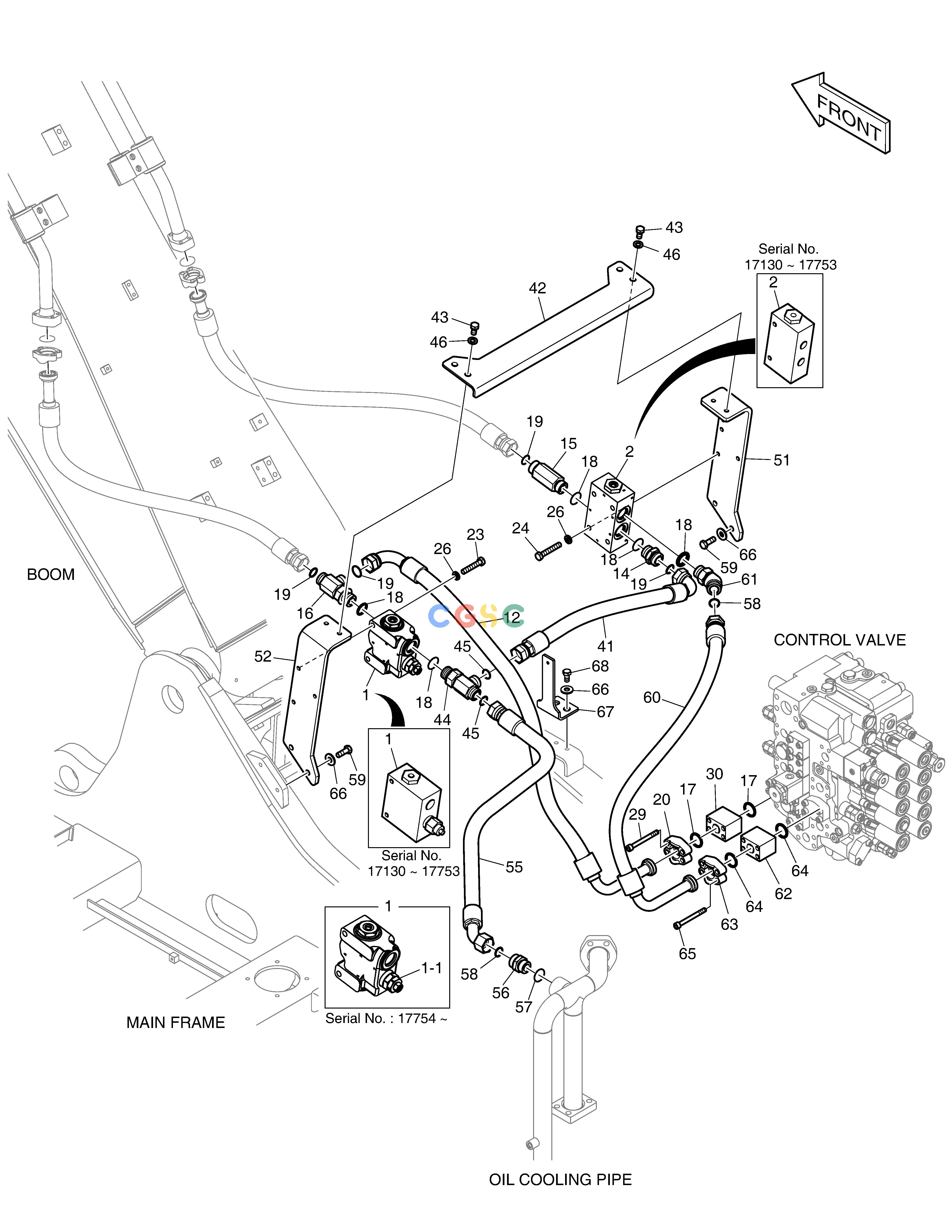

K1044602A
|
[-] |
MAIN PIPING-TWO WAY
|
|
| 1. |
410132-00025
|
[1] |
VALVE,SELECTOR
|
|
| 1. |
410132-00007
|
[1] |
|
410132-00025
|
| 1-1. |
410127-00463
|
[1] |
|
|
| 12. |
DS2026201
|
[1] |
HOSE
|
|
| 14. |
DS2232004
|
[1] |
ADAPTER
|
|
| 15. |
DS2232107
|
[1] |
ADAPTER
|
|
| 16. |
2181-2293D4
|
[1] |
TEE
|
|
| 17. |
2180-1026D19
|
[2] |
O-RING
|
|
| 18. |
S8000291
|
[5] |
O-RING
|
|
| 19. |
S8030161
|
[4] |
O-RING
|
|
| 2. |
410111-00130A
|
[1] |
VALVE
|
|
| 2. |
410132-00008
|
[1] |
|
|
| 20. |
2181-9078
|
[2] |
FLANGE;SPLIT
|
|
| 23. |
S0561466
|
[2] |
BOLT
|
|
| 24. |
S0561366
|
[2] |
BOLT
|
|
| 24. |
S0561266
|
[2] |
BOLT
|
|
| 26. |
S5102703
|
[4] |
WASHER
|
|
| 29. |
S2213466
|
[4] |
SOCKET-HEAD BOLT
|
|
| 30. |
2181-2170
|
[1] |
BLOCK;SPACER
|
|
| 41. |
DS2013834
|
[1] |
HOSE
|
|
| 42. |
K1000358B
|
[1] |
BRACKET
|
|
| 43. |
S0515066
|
[4] |
BOLT
|
|
| 44. |
DS2376015
|
[1] |
|
|
| 44. |
2181-2293D4
|
[1] |
TEE
|
DS2376015
|
| 45. |
S8030161
|
[2] |
O-RING
|
|
| 46. |
120804-00077
|
[4] |
WASHER
|
|
| 51. |
195-03436B
|
[1] |
BRACKET
|
|
| 52. |
195-03435B
|
[1] |
BRACKET
|
|
| 55. |
DS2012216
|
[1] |
HOSE
|
|
| 55. |
DS2012387
|
[1] |
HOSE
|
|
| 56. |
DS2232004
|
[1] |
ADAPTER
|
|
| 57. |
S8000291
|
[1] |
O-RING
|
|
| 58. |
S8030161
|
[2] |
O-RING
|
|
| 59. |
S0515366
|
[4] |
BOLT
|
|
| 60. |
DS2018216
|
[1] |
HOSE
|
|
| 61. |
2181-2816D2
|
[1] |
ELBOW
|
|
| 62. |
2181-2170
|
[1] |
BLOCK;SPACER
|
|
| 63. |
2181-9078
|
[2] |
FLANGE;SPLIT
|
|
| 64. |
2180-1026D19
|
[2] |
O-RING
|
|
| 65. |
S2213466
|
[4] |
SOCKET-HEAD BOLT
|
|
| 66. |
120804-00079
|
[4] |
WASHER
|
|
| 66. |
120804-00079
|
[6] |
WASHER
|
|
| 67. |
110406-05157
|
[1] |
|
|
| 68. |
S0515066
|
[8] |
BOLT
|
|
