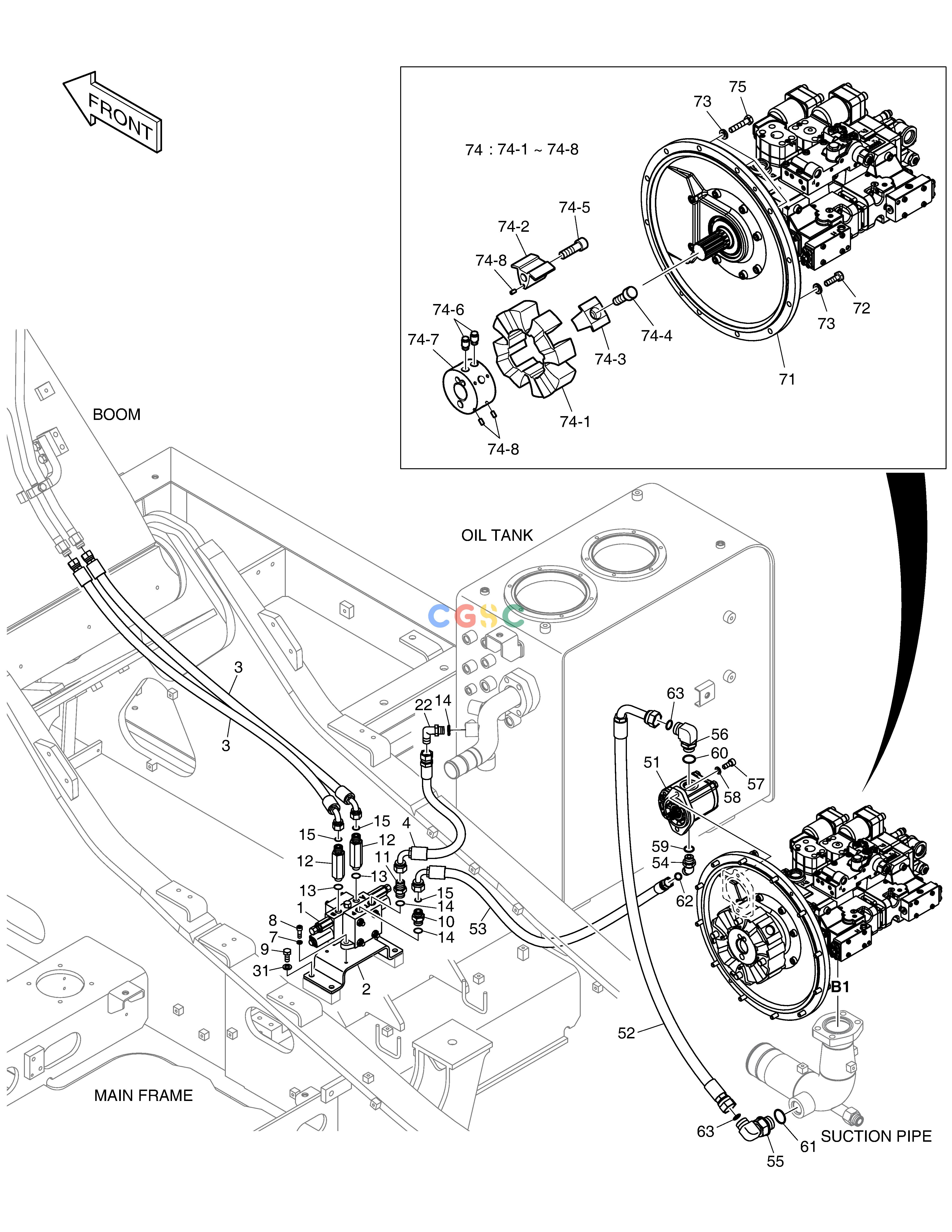

斗山零件查询MAIN PIPING-ROTATION DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
595 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-13882
|
[-] |
|
|
| 1. |
426-00284B
|
[1] |
VALVE;ONE SPOOL
|
|
| 10. |
DS2232012
|
[1] |
ADAPTER
|
|
| 11. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 12. |
DS2232108
|
[2] |
ADAPTER
|
|
| 13. |
S8000141
|
[2] |
O-RING
|
|
| 14. |
S8000181
|
[3] |
O-RING
|
|
| 15. |
S8030081
|
[3] |
O-RING
|
|
| 2. |
K1000352A
|
[1] |
BRACKET
|
|
| 22. |
2181-1702D2
|
[1] |
ELBOW
|
|
| 3. |
DS2013672
|
[2] |
HOSE
|
|
| 31. |
120804-00076
|
[4] |
WASHER
|
|
| 4. |
DS2054472
|
[1] |
|
|
| 51. |
401-00434
|
[1] |
PUMP;GEAR
|
|
| 52. |
DS20132720
|
[1] |
|
|
| 53. |
DS20131143
|
[1] |
|
|
| 54. |
DS2338004
|
[1] |
|
|
| 55. |
DS2304003
|
[1] |
ELBOW
|
|
| 56. |
DS2304011
|
[1] |
|
|
| 57. |
S2212066
|
[2] |
BOLT
|
|
| 58. |
S5020613
|
[2] |
WASHER
|
|
| 59. |
S8000181
|
[1] |
O-RING
|
|
| 60. |
S8000231
|
[1] |
O-RING
|
|
| 61. |
S8000291
|
[1] |
O-RING
|
|
| 62. |
S8030081
|
[1] |
O-RING
|
|
| 63. |
S8030121
|
[2] |
O-RING
|
|
| 7. |
S5110503
|
[3] |
WASHER
|
|
| 71. |
400914-00626
|
[1] |
|
|
| 72. |
S0558366
|
[9] |
BOLT M10X1.5X40
|
|
| 73. |
120804-00070
|
[12] |
WASHER
|
|
| 74. |
2414-9041
|
[1] |
COUPLING
|
|
| 74-1. |
2474-7010
|
[1] |
ELEMENT
|
|
| 74-2. |
2217-7003
|
[4] |
INSERT(A)
|
|
| 74-3. |
2217-7004
|
[4] |
INSERT(B)
|
|
| 74-4. |
2120-7032
|
[4] |
BOLT;SOCKET M16X2.0X50
|
|
| 74-5. |
2120-7033
|
[4] |
BOLT;SOCKET
|
|
| 74-6. |
2120-7034
|
[2] |
BOLT;SOCKET M16X2.0X28
|
|
| 74-7. |
2219-7003
|
[1] |
HUB;CLAMPING
|
|
| 74-8. |
2123-7032
|
[12] |
PIN;SPRING
|
|
| 75. |
S0558566
|
[3] |
BOLT
|
|
| 8. |
S2209066
|
[3] |
BOLT
|
|
| 9. |
S0512066
|
[4] |
. BOLT
|
|
