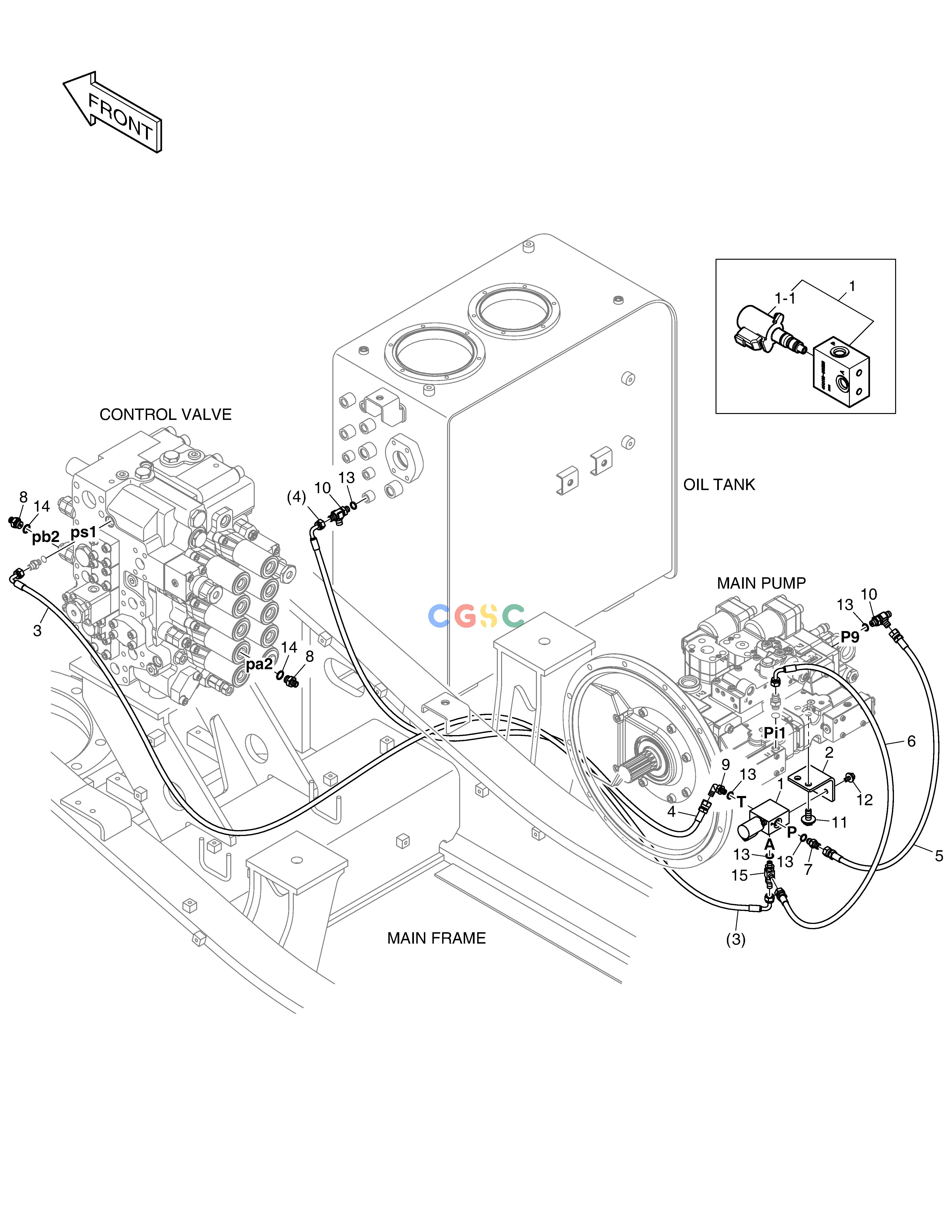

斗山零件查询PILOT PIPING - ONE OR TWO WAY DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
131 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-13890
|
[-] |
|
|
| 1. |
410116-00526
|
[1] |
|
|
| 1-1. |
410116-00646
|
[1] |
|
|
| 10. |
2181-1951D1
|
[2] |
TEE
|
|
| 11. |
DS0025025
|
[2] |
BOLT
|
|
| 12. |
DS0025033
|
[2] |
BOLT
|
|
| 13. |
S8000111
|
[5] |
O-RING
|
|
| 14. |
S8000141
|
[2] |
O-RING
|
|
| 15. |
181-00779
|
[1] |
TEE
|
|
| 2. |
110425-00220A
|
[1] |
|
|
| 3. |
DS2091332
|
[1] |
|
|
| 4. |
DS2093142
|
[1] |
HOSE
|
|
| 5. |
DS2094048
|
[1] |
HOSE
|
|
| 6. |
DS2154014
|
[1] |
|
|
| 7. |
2471-1133
|
[1] |
FILTER;ADAPTER
|
|
| 8. |
2181-1126D36
|
[2] |
ADAPTER
|
|
| 9. |
2181-1702D4
|
[1] |
ELBOW
|
|
