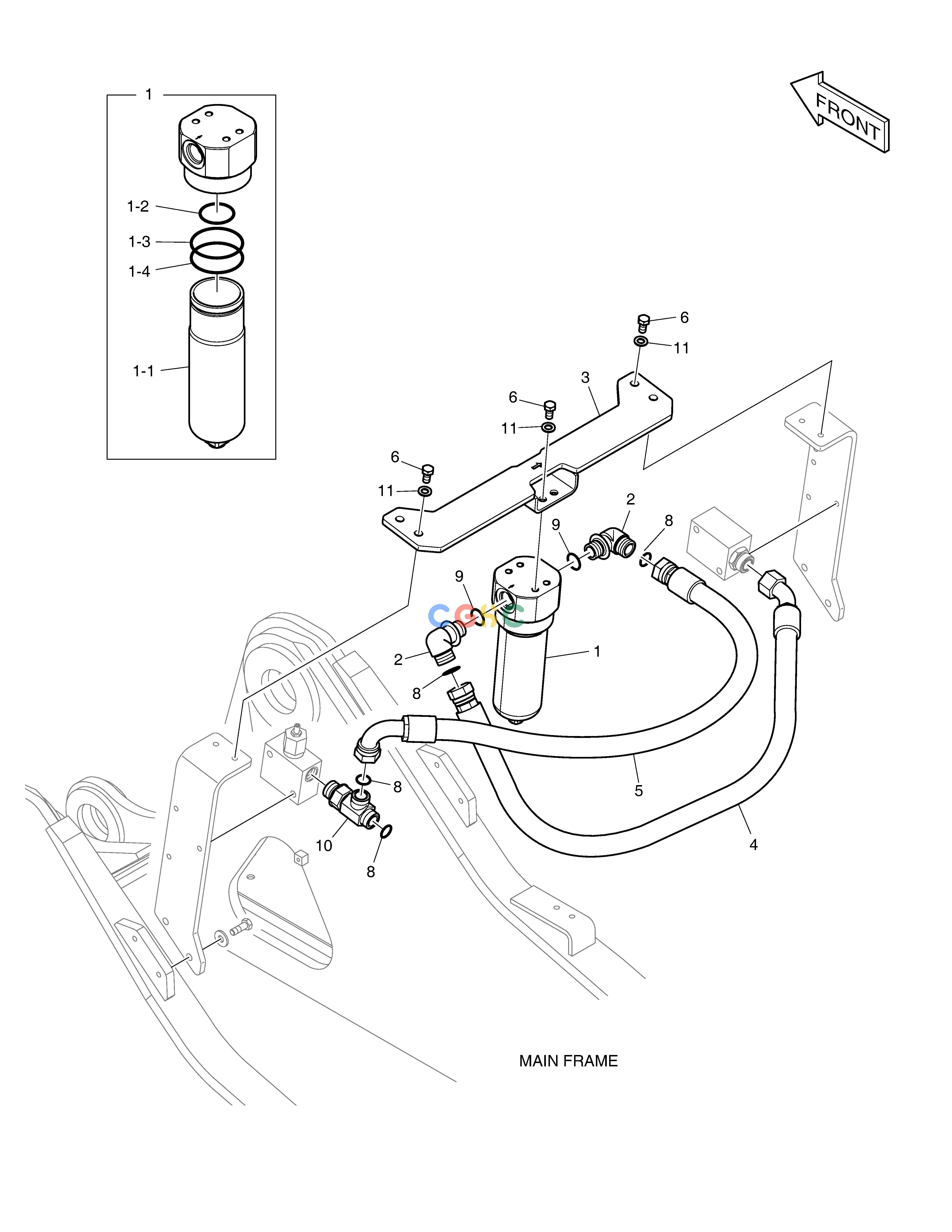

斗山零件查询ONE WAY PIPING - WITH FILTER DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
938 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400406-00569
|
[-] |
|
|
| 1. |
471-00114
|
[1] |
FILTER;BREAKER
|
|
| 1-1. |
474-00046
|
[1] |
ELEMENT;BREAKER FILTER
|
|
| 1-2. |
2180-1026D19
|
[1] |
O-RING
|
|
| 1-3. |
S8010751
|
[1] |
O-RING
|
|
| 1-4. |
401003-00260
|
[1] |
|
|
| 10. |
2181-2293D4
|
[1] |
TEE
|
|
| 11. |
120804-00077
|
[8] |
WASHER
|
|
| 2. |
DS2304004
|
[2] |
ELBOW
|
|
| 3. |
195-03437E
|
[1] |
BRACKET
|
|
| 4. |
DS2012387
|
[1] |
HOSE
|
|
| 5. |
DS2013220
|
[1] |
HOSE
|
|
| 6. |
S0515066
|
[8] |
BOLT
|
|
| 8. |
S8030161
|
[4] |
O-RING
|
|
| 9. |
S8000291
|
[2] |
O-RING
|
|
