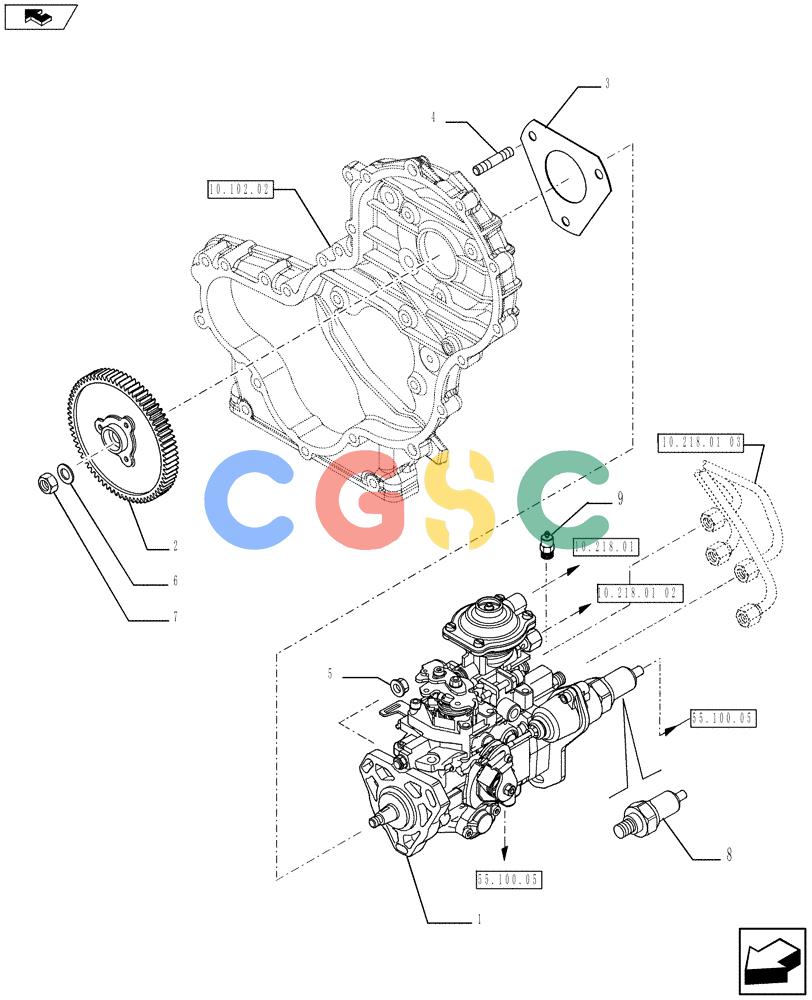

纽荷兰零件查询(F5CE5454C A003) - ENGINE 504387948 - 84171653 (10.240.01[01]) - INJECTION PUMP (504385878) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
750 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 504387476 | [1] | FUEL INJECTION PUMP | TOR67 KW |
| 1. | 504387476R | [1] | REMAN-INJECTION PUMP | TOR |
| 1. | 504387476C | [1] | CORE-INJECTION PUMP | TORReturn Number |
| 2. | 504240405 | [1] | GEAR | TOR |
| 3. | 2852885 | [1] | GASKET,1.2mm Thk | TOR |
| 4. | 13517124 | [3] | STUD | JES |
| 5. | 500368408 | [3] | NUT,Hex, M8 x 1.25 | TORM8X1,25 |
| 6. | 17095401 | [1] | WASHER | TOR |
| 7. | 16980331 | [1] | NUT,M14 x 1.5 | TORM14X1,5 |
| 8. | 93160151 | [1] | SENDER UNIT | JES |
| 9. | 42533181 | [1] | SHUT-OFF VALVE | TOR |
