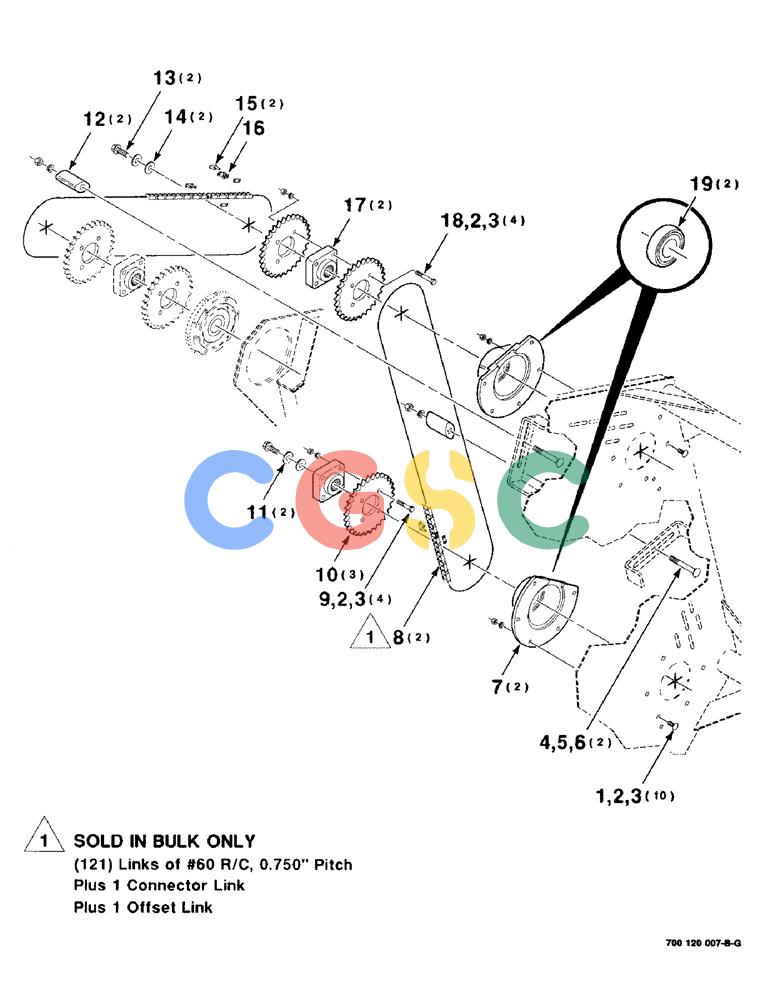

凯斯零件查询(8480) - CASE IH FIXED CHAMBER ROUND BALER (1/90-12/00) (2-24) - ROLLER DRIVE ASSEMBLY, TAILGATE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
857 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
434-616
|
[10] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSSNB Superseded by part number: 80280503
|
| 2. |
492-11038
|
[18] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 3. |
425-106
|
[18] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 4. |
411-864
|
[2] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 2
|
CAS
1/2-13 X 4 RHSNB Superseded by part number: 87495288
|
| 5. |
80679
|
[2] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 6. |
425-108
|
[2] |
NUT,1/2" - 13, Gr 5
|
CAS
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| 7. |
700120234
|
[2] |
HOUSING ASSY.
|
CAS
HOUSING ASSEMBLY (Includes Item 19)
|
| 8. |
611362R91
|
[2] |
CHAIN (AG)
|
IH
CHAIN - roller #60 (10 foot bulk) Superseded by part number: 611362R91X
|
| 9. |
413-632
|
[4] |
BOLT,Hex, 3/8" - 16 x 2", Gr 5
|
CAS
Superseded by part number: 88436
|
| 10. |
700120239
|
[3] |
SPROCKET ASSY.
|
HFI
SPROCKET - 30 tooth
|
| 11. |
700120270
|
[2] |
WASHER
|
CAS
- special
|
| 12. |
700709424
|
[2] |
TIGHTENER
|
CAS
CASTING - chain tightener
|
| 13. |
8701237
|
[2] |
BOLT
|
CAS
1/2-13 X 1-1/2 HFS GR8
|
| 14. |
700711557
|
[2] |
WASHER
|
CAS
1/2 HARDENED WIDE PLAIN WASHER
|
| 15. |
241-1416
|
[2] |
LINK
|
CAS
- connector, #60 R/C Superseded by part number: 241-1316
|
| 16. |
241-1716
|
[1] |
LINK,19.05mm Pitch
|
CAS
OFFSET LINK (o-ring)
|
| 17. |
700120251
|
[2] |
HUB
|
HFI
- splined
|
| 18. |
413-640
|
[4] |
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
|
CAS
Superseded by part number: 87936
|
| 19. |
1322251C91
|
[2] |
COLLAR
|
IH
BEARING - spherical Superseded by part number: 563733
|
