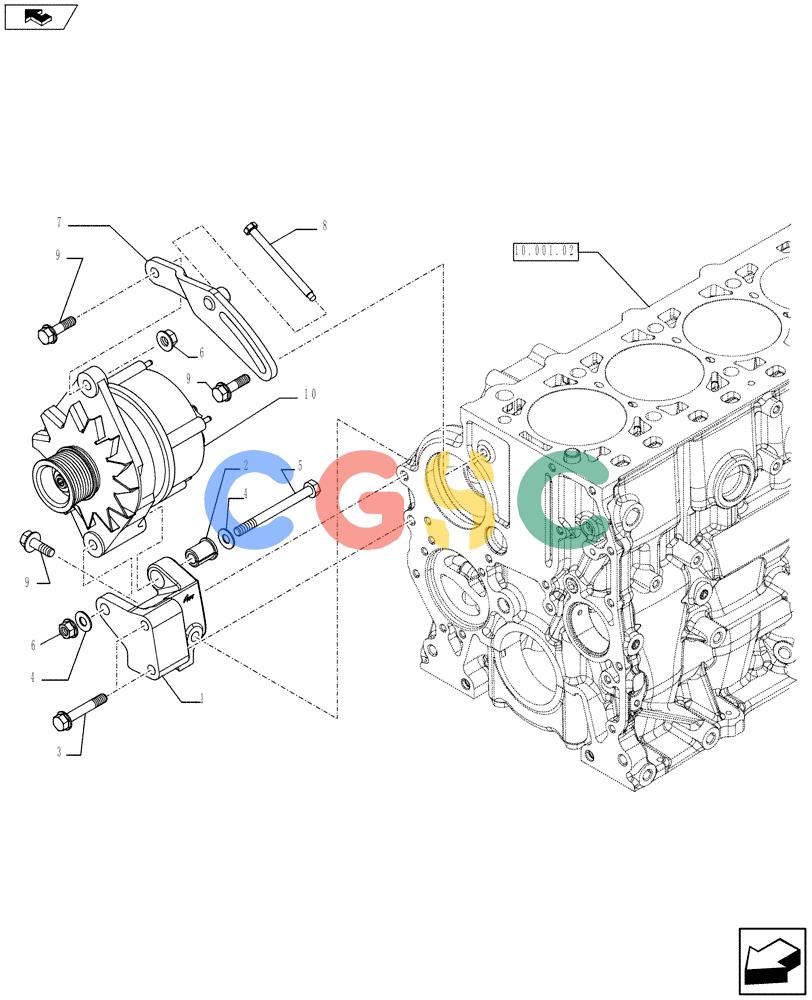

纽荷兰零件查询(F5CE5454C A003) - ENGINE 504387948 - 84171653 (55.301.02) - ENGINE, ALTERNATOR MOUNTING (504388098) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025,浏览:
760 次


| Pos. | Part No | Qty | Parts name | Comments |
| 1. | 504276997 | [1] | BRACKET, SUPPORTING | TOR |
| 2. | 2852181 | [1] | SPACER,10.4mm ID x 22mm OD x 35mm L | TOR Superseded by part number: 504060839 |
| 3. | 16587824 | [2] | BOLT,Hex, M10 x 1.5 x 60mm | TORM10 x 1.5 x 60 |
| 4. | 17095104 | [2] | WASHER | LECD. 10X21X2 mm Superseded by part number: |
| 5. | 16609024 | [1] | BOLT | TOR Superseded by part number: 15972221 |
| 6. | 17044821 | [1] | NUT | BASM10 Superseded by part number: 17044825 |
| 6. | 17037921 | [1] | NUT | TOR Superseded by part number: 17037925 |
| 7. | 504243953 | [1] | BELT TENSIONER | TOR |
| 8. | 504302206 | [1] | BOLT | TOR |
| 9. | 16587325 | [3] | SCREW,Hex, M10 x 35mm | TORM10 x 35 |
