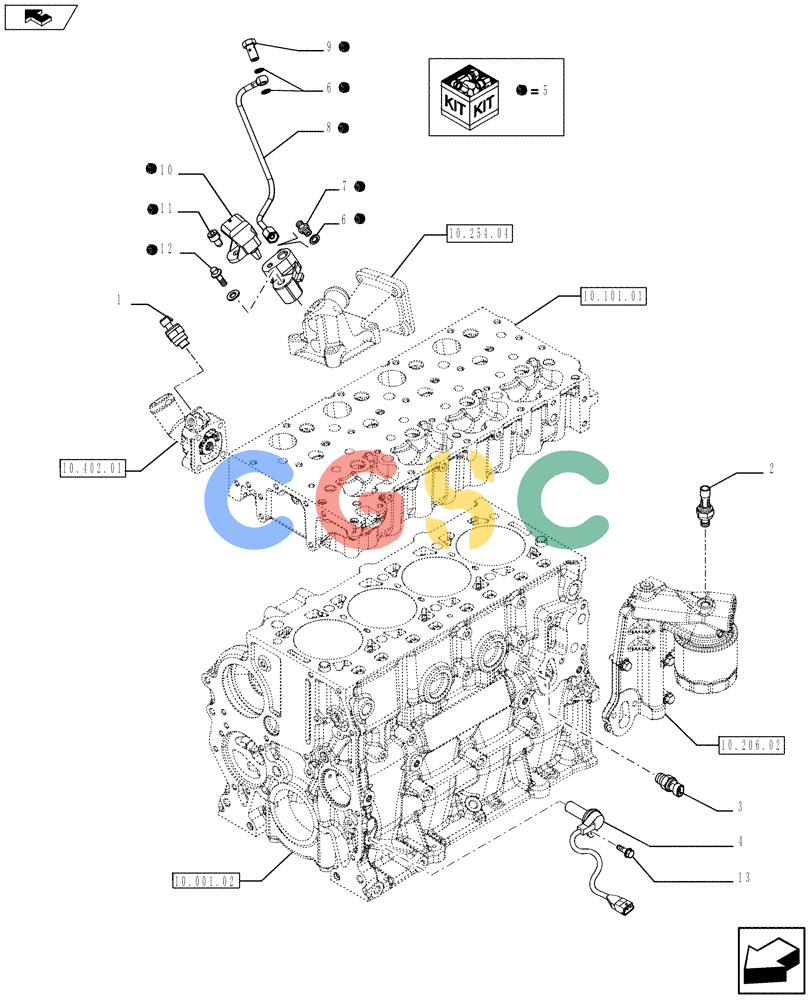

纽荷兰零件查询(F5CE5454C A003) - ENGINE 504387948 - 84171653 (55.414.01[02]) - DIAGNOSTIC SENSOR (504308864) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
892 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852157 | [1] | SENSOR | TORWater Superseded by part number: 504025599 |
| 2. | 2852889 | [1] | PRESSURE SWITCH | TOR Superseded by part number: 504084983 |
| 3. | 504273290 | [1] | SENSOR | TORWater temperature KSB |
| 4. | 500374763 | [1] | TRANSMITTER | TORCrankshaft |
| 5. | 504307972 | [1] | Air press. & temperature | SUPPORT |
| 6. | 10260150 | [3] | SEALING WASHER,M10.2 x 14 x 1, Alum | BAS |
| 7. | 41905549 | [1] | | HYD CONNECTOR |
| 8. | 504309070 | [1] | | PIPE |
| 9. | 16511111 | [1] | BANJO BOLT | TOR Superseded by part number: 16511114 |
| 10. | 504245257 | [1] | SENSOR | TOR Superseded by part number: 504369148 |
| 11. | 16689121 | [1] | SCREW,Skt Hd, M6 x 16mm | TORM6 x 16 Superseded by part number: 4895427 |
| 12. | 16592625 | [1] | SCREW,M8 x 80mm | TOR |
| 13. | 16585625 | [1] | SCREW,Hex, M6 x 12mm | TORM6X12 mm |
