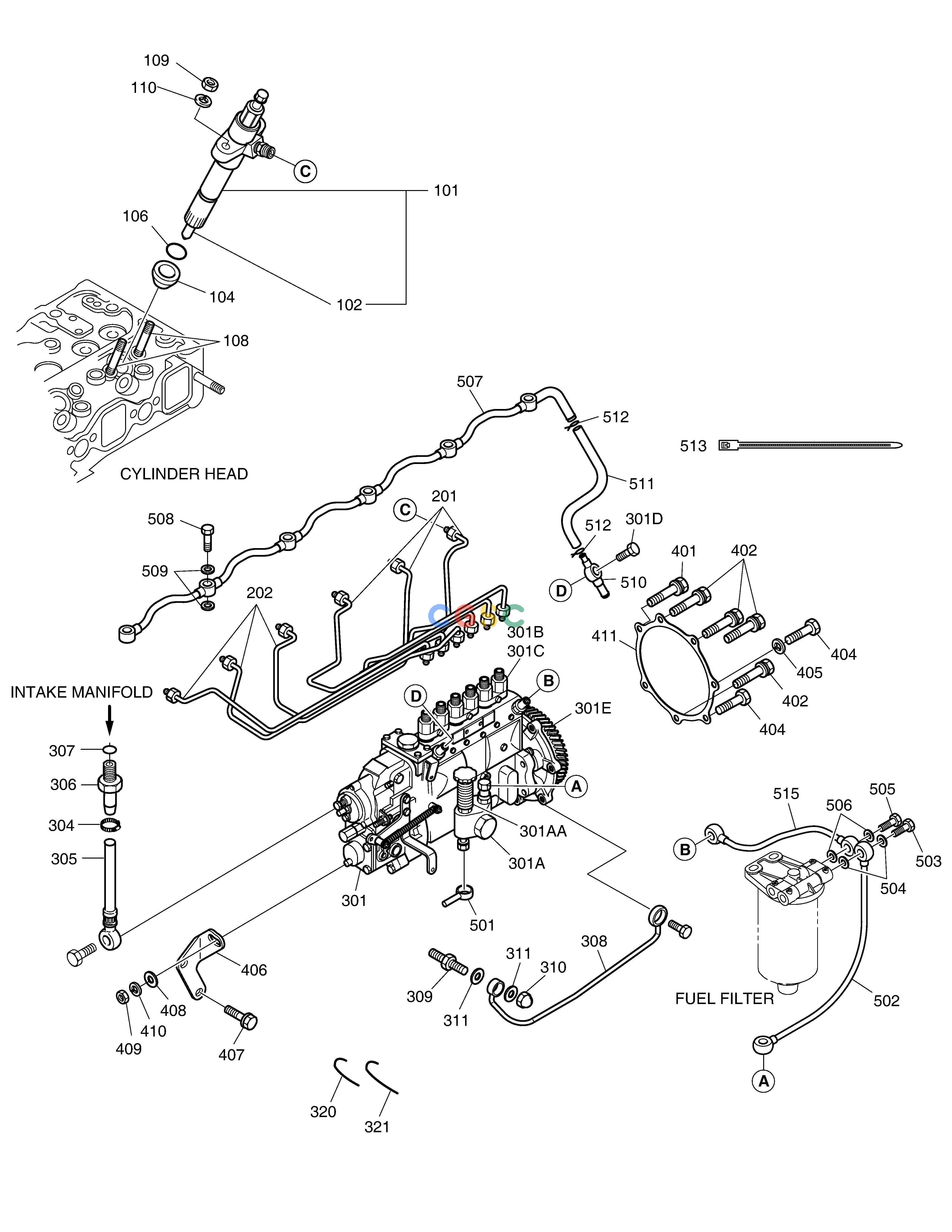

斗山零件查询FUEL SYSTEM DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
365 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 101. |
150118-00113
|
[6] |
NOZZLE ASSY,INJECTION
|
|
| 101. |
65.10101-7085B
|
[6] |
|
150118-00135
|
| 101. |
150118-00135
|
[6] |
|
150118-00113
|
| 101. |
65.10101-7099A
|
[6] |
NOZZLE HOLDER ASS'Y
|
65.10101-7085B
|
| 102. |
65.10102-6055
|
[1] |
NOZZLE
|
65.10102-6055A
|
| 102. |
65.10102-6055A
|
[1] |
NOZZLE
|
150118-00122
|
| 102. |
150118-00122
|
[1] |
. NOZZLE,FUEL INJECTION
|
|
| 102. |
65.10102-6069
|
[1] |
NOZZLE
|
|
| 104. |
65.96507-0044B
|
[6] |
RING;SEAL
|
|
| 106. |
65.96507-0050
|
[6] |
SEAL;RING
|
|
| 108. |
65.90201-0099
|
[12] |
BOLT;STUD
|
|
| 109. |
06.11063-8214
|
[12] |
. NUT
|
|
| 110. |
06.16731-2107
|
[12] |
WASHER
|
|
| 201. |
65.10301-6202
|
[1] |
PRESSURE PIPE ASS`Y
|
|
| 201. |
65.10301-6088
|
[1] |
PRESSURE PIPE ASS'Y
|
65.10301-6202
|
| 202. |
65.10301-6203
|
[1] |
PRESSURE PIPE ASS`Y
|
|
| 202. |
65.10301-6089
|
[1] |
PRESSURE PIPE ASS'Y
|
65.10301-6203
|
| 301. |
400912-00071
|
[1] |
|
|
| 301. |
65.11101-7420A
|
[1] |
PUMP;INJECTION
|
400912-00071
|
| 301A. |
105220-649A
|
[1] |
PUMP,FEED
|
|
| 301AA. |
400908-00004
|
[1] |
. HAND PRIMING PUMP
|
|
| 301B. |
131150-2620
|
[6] |
PLUNGER
|
|
| 301C. |
65.11108-6006S
|
[6] |
|
|
| 301D. |
131424-1520
|
[1] |
VALVE;OVERFLOW
|
|
| 301E. |
156639-8820
|
[1] |
COUPLING
|
|
| 304. |
06.67020-0101
|
[1] |
CLAMP;HOSE
|
|
| 305. |
65.08301-6008
|
[1] |
HOSE;AIR
|
|
| 306. |
65.98131-0050
|
[1] |
CONN SCREW
|
|
| 307. |
06.56180-0714
|
[1] |
RING;SEAL
|
|
| 308. |
65.05701-5200
|
[1] |
PIPE;OIL
|
|
| 309. |
65.98155-0011
|
[1] |
UNION;HOLLOW
|
|
| 310. |
06.12172-9314
|
[1] |
NUT;CAP
|
|
| 311. |
06.56180-0714
|
[2] |
RING;SEAL
|
|
| 320. |
65.11596-0001
|
[3] |
WIRE;SEAL
|
|
| 321. |
65.11596-0002
|
[1] |
WIRE;SEAL
|
|
| 330. |
150112-00007
|
[1] |
|
|
| 401. |
06.01913-3122
|
[1] |
BOLT ASS`Y M8X55
|
|
| 402. |
06.01913-3124
|
[4] |
BOLT ASS`Y M8X65
|
|
| 404. |
06.01283-7128
|
[2] |
BOLT;HEX. M8X85
|
|
| 405. |
06.16731-2107
|
[1] |
WASHER
|
|
| 406. |
65.11401-0002C
|
[1] |
BRACKET;REAR
|
|
| 407. |
06.01953-3213
|
[2] |
BOLT ASS`Y M10X1.25X20
|
|
| 408. |
06.15010-2312
|
[1] |
WASHER;PLAIN
|
|
| 409. |
06.11063-9215
|
[1] |
NUT M10X1.25
|
|
| 410. |
06.16731-2108
|
[1] |
WASHER;SPRING
|
|
| 411. |
65.11902A0001
|
[1] |
GASKET;INJECTION PUMP MOUNTING
|
|
| 501. |
65.12301-5022
|
[1] |
PIPE;FUEL(RETURN)
|
|
| 502. |
65.96341-0100
|
[1] |
HOSE;FUEL
|
65.96341-0140
|
| 502. |
65.96341-0140
|
[1] |
HOSE,FUEL
|
|
| 503. |
06.78144-2204
|
[1] |
SCREW;HOLLOW
|
|
| 504. |
65.96507-0043
|
[2] |
. RING;SEAL
|
|
| 505. |
06.78144-2204
|
[1] |
SCREW;HOLLOW
|
|
| 506. |
65.96507-0043
|
[2] |
. RING;SEAL
|
|
| 507. |
65.12301-5824
|
[1] |
PIPE;FUEL
|
|
| 508. |
65.98150-0015B
|
[6] |
SCREW;HOLLOW
|
|
| 509. |
65.96507-0001
|
[12] |
RING;SEAL
|
|
| 509. |
06.56180-0712
|
[12] |
RING;SEAL
|
65.96507-0001
|
| 510. |
65.12301-5825
|
[1] |
PIPE;FUEL(RETURN)
|
|
| 511. |
65.96301-0176
|
[1] |
HOSE;RUBBER
|
|
| 512. |
65.97401-0089
|
[2] |
CLIP
|
|
| 513. |
65.97460-0002
|
[1] |
CABLE TIE
|
|
| 515. |
65.96341-0140
|
[1] |
HOSE,FUEL
|
|
| 515. |
65.96341-0100
|
[1] |
HOSE;FUEL
|
65.96341-0140
|
