斗山零件查询INTAKE & EXHAUST MANIFOLD DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
698 次

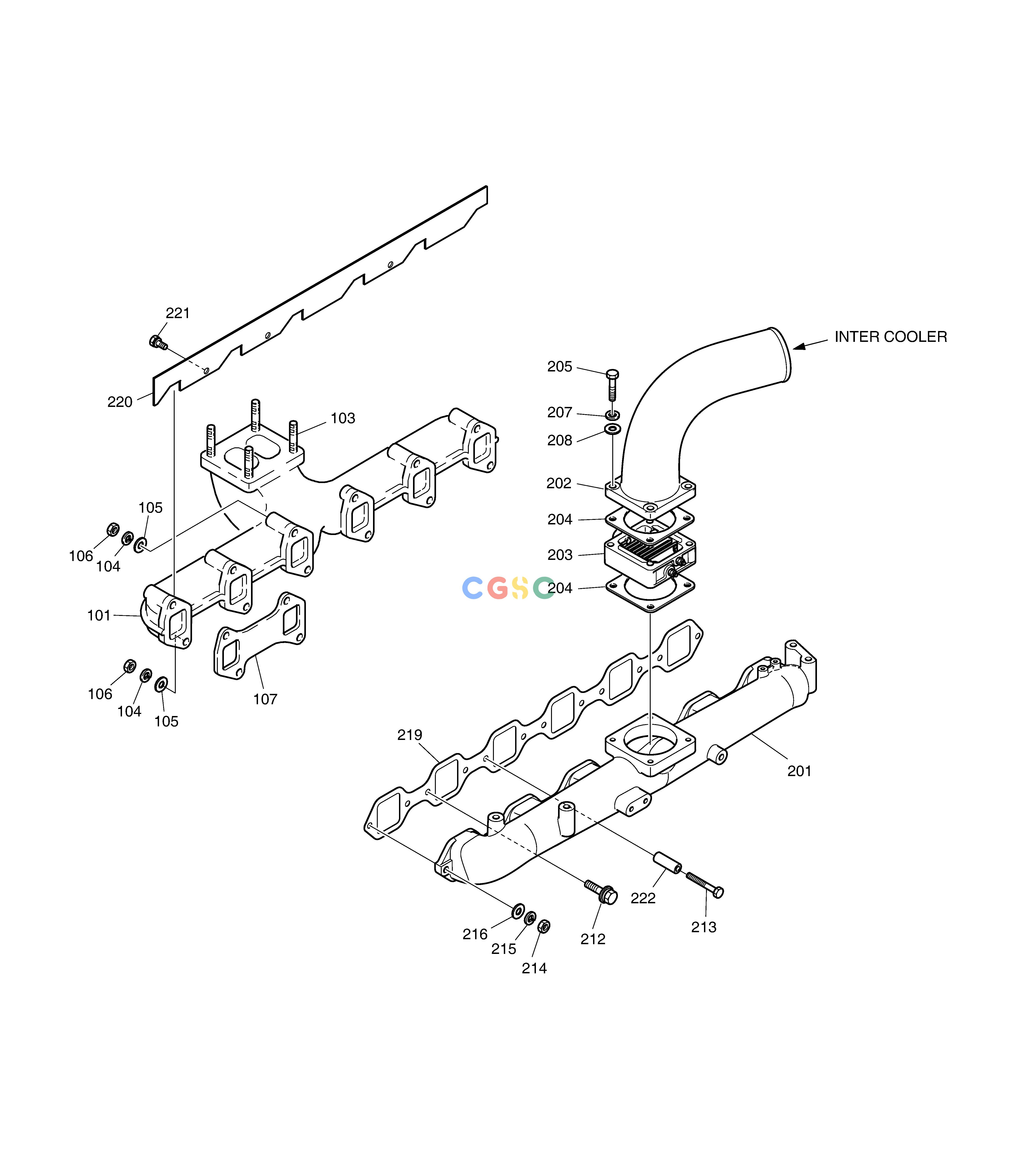

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 101. |
65.08101-0274
|
[1] |
MANIFOLD;EXHAUST
|
65.08101-0199
|
| 101. |
65.08101-0199
|
[1] |
MANIFOLD;EXHAUST
|
|
| 103. |
06.06175-8208
|
[4] |
BOLT;STUD M10X1.25X30
|
|
| 104. |
06.16731-2107
|
[12] |
WASHER
|
|
| 105. |
06.15010-2311
|
[12] |
WASHER
|
|
| 106. |
06.11063-8214
|
[12] |
. NUT
|
|
| 107. |
65.08901-0028
|
[3] |
GASKET;EXHAUST MANIFOLD
|
400610-00041
|
| 107. |
400610-00041
|
[3] |
GASKET,EXHAUST MANIFOLD
|
|
| 201. |
65.08201-5062
|
[1] |
MANIFOLD;INTAKE
|
65.08201-5062A
|
| 201. |
65.08201-5062A
|
[1] |
|
|
| 202. |
65.08202-0175
|
[1] |
STAKE;INTAKE
|
|
| 203. |
65.26803-7028B
|
[1] |
AIR HEATER
|
|
| 204. |
65.09904-0008
|
[2] |
GASKET;AIR HEATER
|
|
| 205. |
06.01923-3124
|
[4] |
BOLT ASS`Y M8X65
|
|
| 207. |
06.16731-2107
|
[4] |
WASHER
|
|
| 208. |
06.15010-2311
|
[4] |
WASHER
|
|
| 212. |
65.90020-0142
|
[7] |
BOLT ASS`Y
|
|
| 213. |
06.01013-9127
|
[1] |
BOLT M8X120
|
|
| 214. |
06.11063-8214
|
[3] |
. NUT
|
|
| 215. |
06.16731-2107
|
[3] |
WASHER
|
|
| 216. |
06.15010-2311
|
[3] |
WASHER
|
|
| 219. |
65.08902-0034
|
[1] |
GASKET;INTAKE MANIFOLD
|
|
| 220. |
111002-00142
|
[1] |
SCREEN,HEAT;EXHAUST MANIFOLD
|
|
| 220. |
65.08120-0026
|
[1] |
HEAT;SCREEN
|
111002-00142
|
| 221. |
06.01913-3111
|
[3] |
BOLT ASS`Y M8X16
|
|
| 222. |
65.91701-0029
|
[1] |
SPACER
|
|
