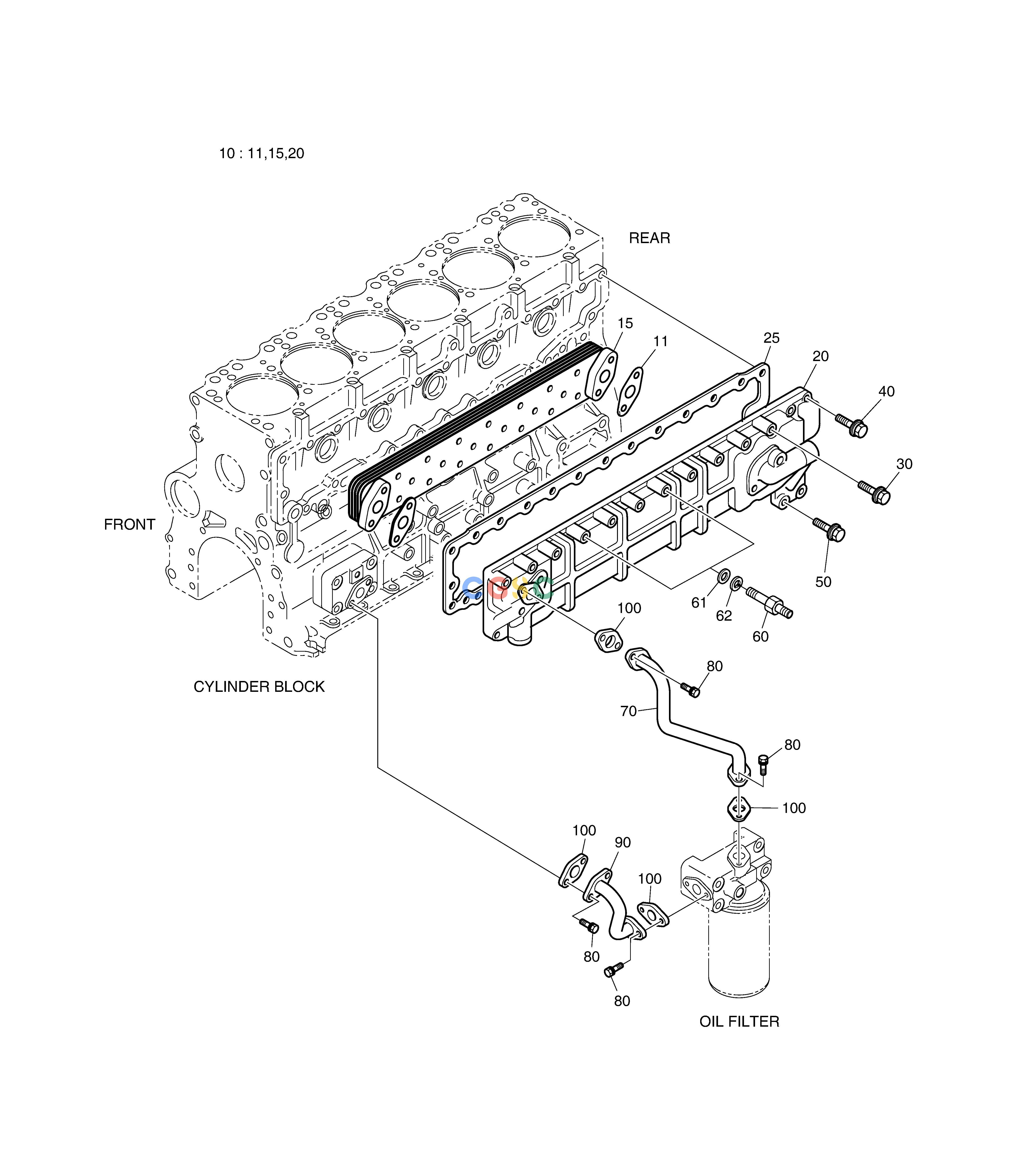

斗山零件查询OIL COOLER DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
347 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
65.05601-7056E
|
[1] |
. OIL COOLER ASS`Y
|
|
| 100. |
65.05903A0001
|
[4] |
GASKET
|
|
| 11. |
65.05902-0025
|
[2] |
.. GASKET;ELEMENT
|
|
| 15. |
65.05606-5024
|
[1] |
.. ELEMENT;OIL COOLER
|
|
| 20. |
65.05604-0013B
|
[1] |
.. HOUSING;OIL COOLER
|
|
| 25. |
65.05902A0005
|
[1] |
GASKET;OIL COOLER
|
|
| 30. |
06.01923-3120
|
[12] |
. BOLT ASS`Y M8X45
|
|
| 40. |
06.01923-3115
|
[14] |
BOLT ASS`Y M8X25
|
|
| 50. |
06.01923-3113
|
[2] |
BOLT ASS`Y M8X20
|
|
| 60. |
65.90201-0103
|
[2] |
. BOLT;STUD
|
|
| 61. |
06.15010-2311
|
[2] |
WASHER
|
|
| 62. |
06.16731-2107
|
[2] |
WASHER
|
|
| 70. |
65.05701-5531
|
[1] |
OIL PIPE ASS'Y
|
|
| 80. |
06.01913-3114
|
[8] |
BOLT ASS`Y M8X22
|
|
| 90. |
65.05701-5530
|
[1] |
PIPE ASS'Y;OIL
|
|
