神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (00-012) - CONNECTING ROD AND BEARING Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
792 次

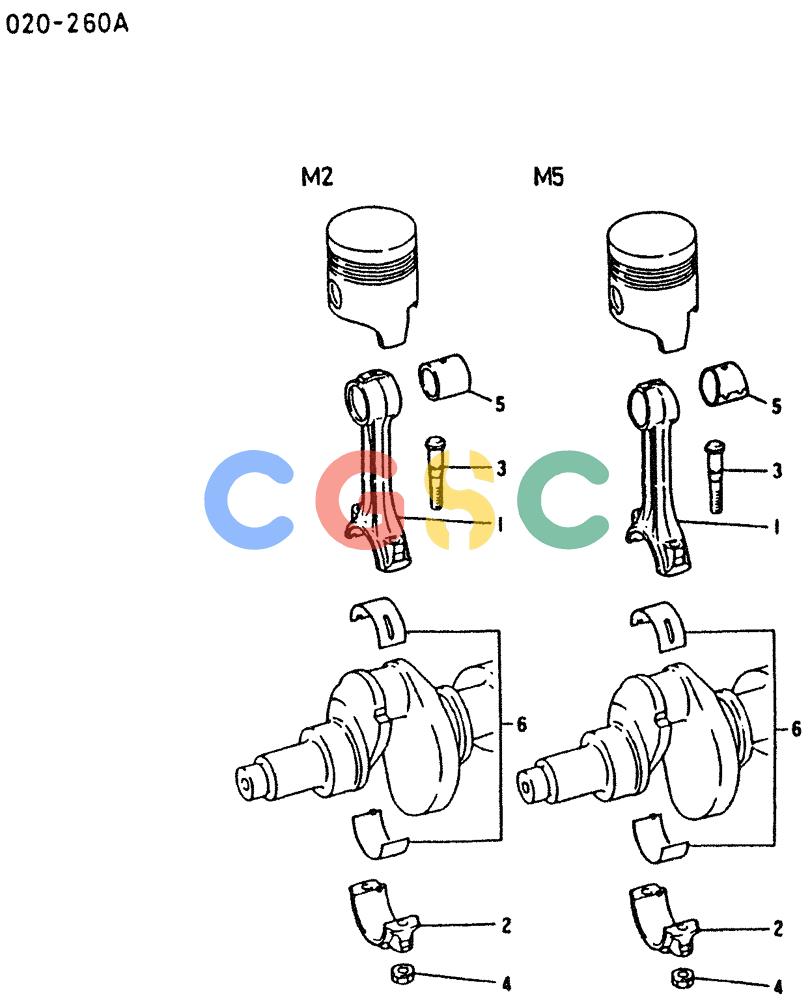

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-5. | VAME072119 | [6] | CONNECTING ROD | KOBCONNECTING ROD ASSY,FOR M2 ONLY |
| . . | VAME072120 | [6] | CONNECTING ROD | KOBFOR M5 ONLY |
| 1. | NSS | [6] | NOT SOLD SEPARAT | CONROD,CONNECTING |
| 2. | NSS | [6] | NOT SOLD SEPARAT | CONCAP,CONN-ROD |
| 3. | VAME032553 | [12] | SCREW | KOBBOLT |
| 4. | VAME032042 | [12] | NUT | KOBNUT Superseded by part number: 132467A1 |
| 5. | VAME072126 | [6] | BUSHING | KOBBUSHING,CONN-ROD,FOR M2 ONLY |
| . . | VAME072128 | [6] | BUSHING | KOBFOR M6 ONLY |
| 6. | VAME999891 | [1] | METAL SET STD C/ROD CONN-ROD BEARING SET, ONE MODEL STD,FOR M2 ONLY | METAL SET STD C/ROD CONN-ROD BEARING SET, ONE MODEL STD,FOR M2 ONLY |
| . . | VAME999892 | [1] | SET OF STD MAIN BRGS | KOBSTD,FOR M6 ONLY Superseded by part number: VAME997367 |
| . . | VAME999893 | [1] | BEARING | KOBUS 0.25,FOR M2 ONLY Superseded by part number: VAME997368 |
| . . | VAME999894 | [1] | SET | KOBUS 0.25,FOR M6 ONLY Superseded by part number: VAME997368 |
| . . | VAME999895 | [1] | METAL SET US 0.50,FOR M2 ONLY | METAL SET US 0.50,FOR M2 ONLY |
| . . | VAME999896 | [1] | SET | KOBUS 0.50,FOR M6 ONLY |
| . . | VAME999897 | [1] | METAL SET 075 C/ROD US 0.75,FOR M2 ONLY | METAL SET 075 C/ROD US 0.75,FOR M2 ONLY |
| . . | VAME999898 | [1] | US 1.75,FOR M6 ONLY | |
| . . | VAME999899 | [1] | METAL SET 100 C/ROD US 1.00,FOR M2 ONLY | METAL SET 100 C/ROD US 1.00,FOR M2 ONLY |
| . . | VAME999900 | [1] | MAIN BEARING SET US 1.00,FOR M6 ONLY | MAIN BEARING SET US 1.00,FOR M6 ONLY |
