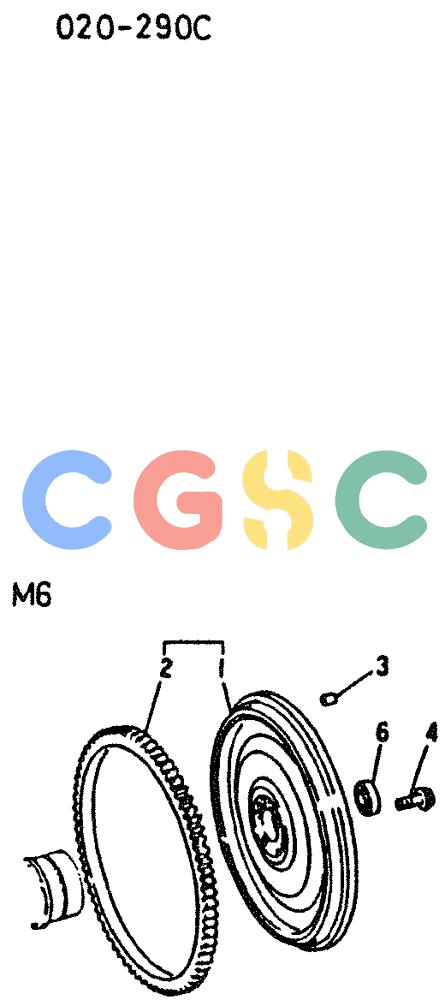

神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (00-013) - FLYWHEEL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
121 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-2. | VAME047049 | [1] | FLYWHEEL | KOBFLYWHEEL ASSY |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONFLYWHEEL |
| 2. | VAME032645 | [1] | RING GEAR | KOBGEAR,RING Superseded by part number: VAME072527 |
| 3. | VAMF472405 | [2] | DOWEL | KOBPIN,DOWEL 10 Superseded by part number: 132323A1 |
| 4. | VAMH000861 | [6] | BOLT | KOBBOLT,F/W 16X45 |
| 6. | VAMH040027 | [1] | BALL BEARING | KOBBEARING,BALL |
