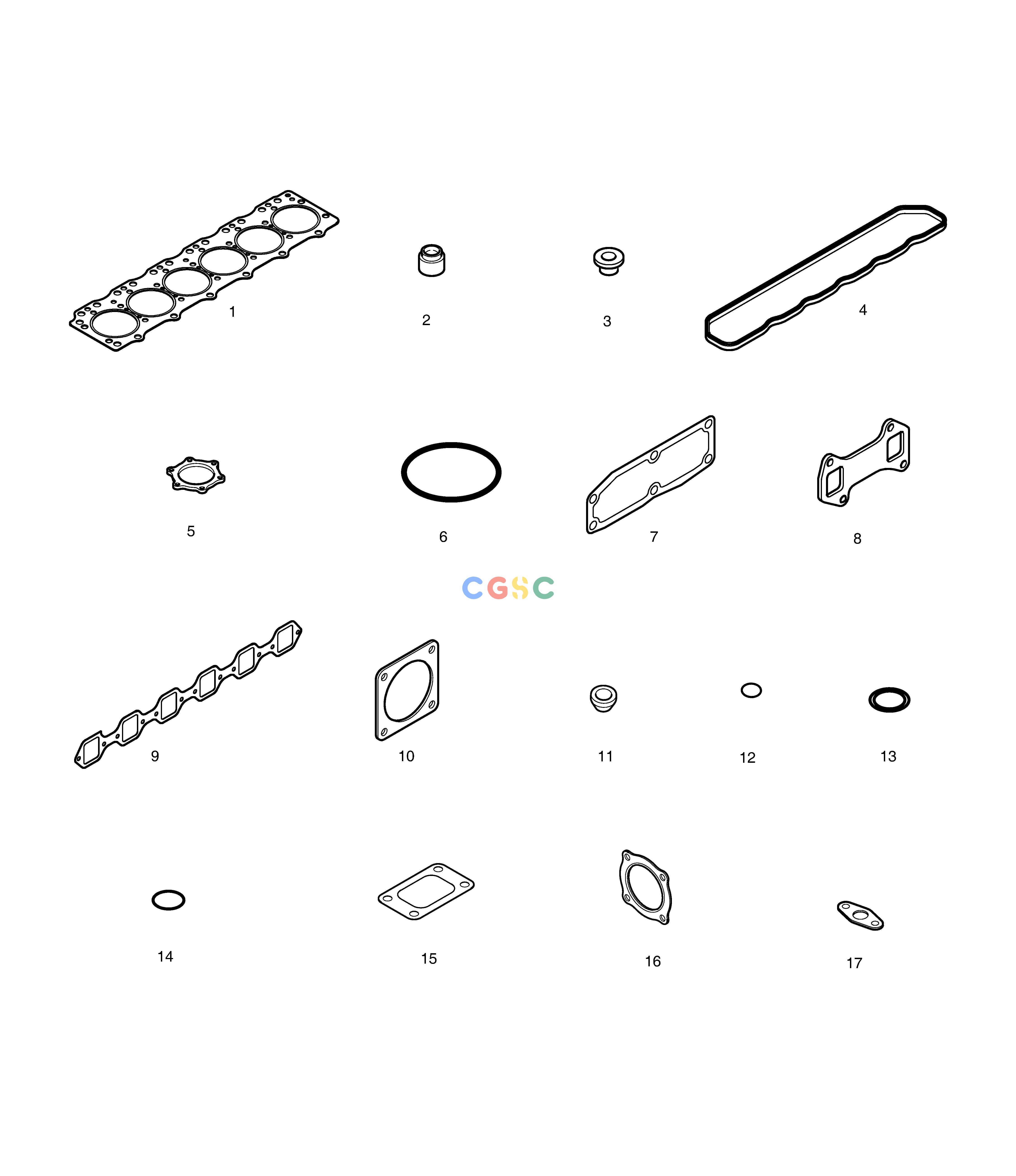

斗山零件查询OVER HAUL GASKET KIT-TOP DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
131 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
65.99605-8020
|
[1] |
OVER HAUL GASKET KIT-TOP
|
|
| 1. |
65.03901-0066A
|
[1] |
GASKET;CYLINDER HEAD
|
|
| 10. |
65.09904-0008
|
[2] |
GASKET;AIR HEATER
|
|
| 11. |
65.96507-0044B
|
[6] |
RING;SEAL
|
|
| 12. |
65.96507-0050
|
[6] |
SEAL;RING
|
|
| 13. |
06.56180-0712
|
[12] |
RING;SEAL
|
|
| 14. |
65.96501-0032B
|
[1] |
O-RING;BREATHER
|
|
| 15. |
65.09901-0018A
|
[1] |
GASKET
|
|
| 16. |
65.09901-0020
|
[1] |
GASKET;TURBO CHARGER
|
|
| 17. |
65.96601-0067
|
[1] |
GASKET;T/C OIL RETURN
|
|
| 2. |
65.04902-0011A
|
[12] |
SEAL;VALVE STEM
|
|
| 3. |
65.03905-0023A
|
[4] |
GASKET;CYLINDER HEAD COVER MOUNTIN
|
|
| 4. |
65.03905-0002B
|
[1] |
GASKET;CYLINDER HEAD COVER
|
|
| 5. |
65.03903-0001
|
[1] |
. PACKING;BREATHER PIPE
|
|
| 6. |
65.06904-0003
|
[1] |
GASKET;THERMOSTAT
|
|
| 7. |
65.06904A0004
|
[1] |
GASKET;THERMOSTAT HSG
|
|
| 8. |
65.08901-0028
|
[3] |
GASKET;EXHAUST MANIFOLD
|
|
| 9. |
65.08902-0034
|
[1] |
GASKET;INTAKE MANIFOLD
|
|
