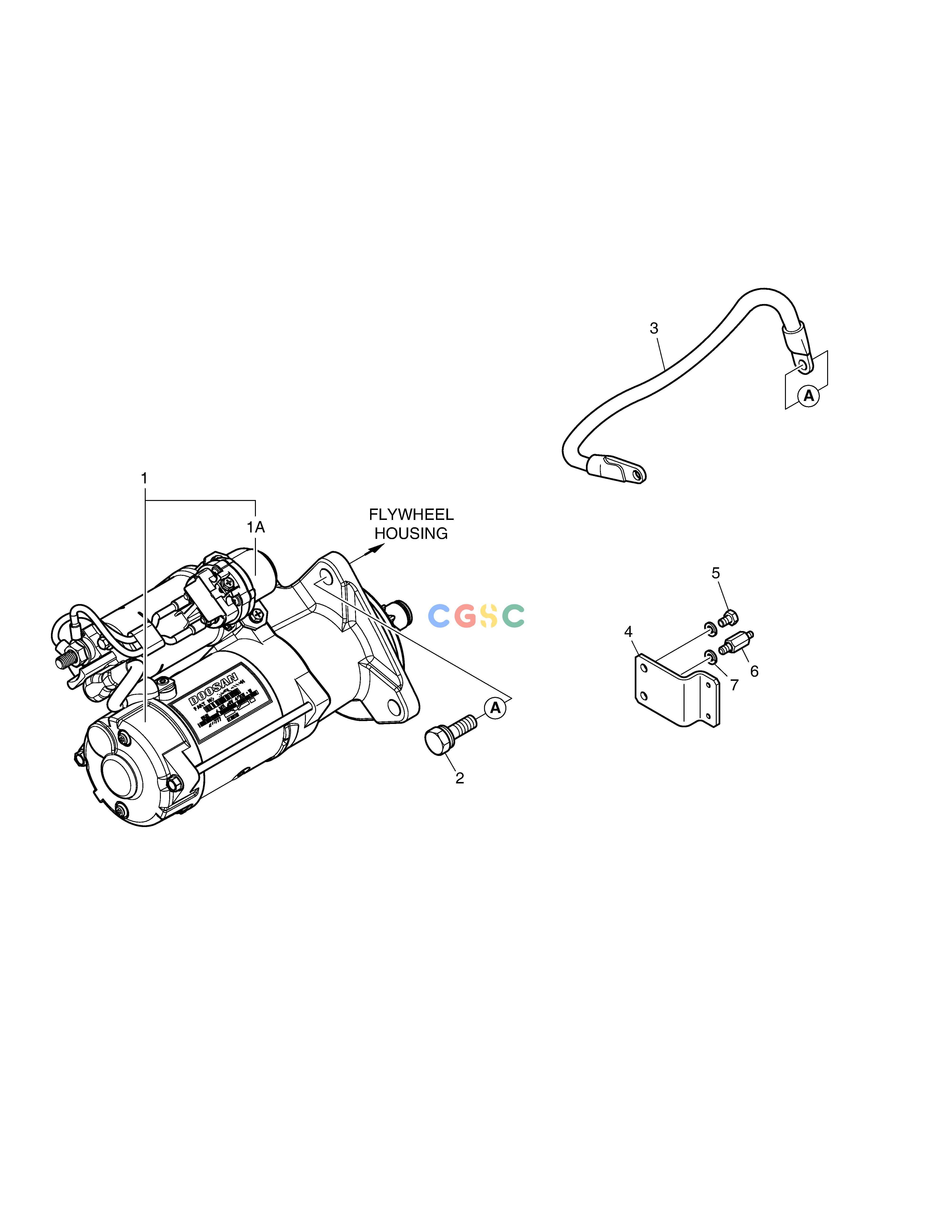

斗山零件查询STARTER DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
820 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.26201-7076B
|
[1] |
STARTER
|
65.26201-7076C
|
| 1. |
65.26201-7076C
|
[1] |
|
300516-00003
|
| 1. |
300516-00003
|
[1] |
STARTER
|
300516-00041
|
| 1. |
300516-00041
|
[1] |
STARTER ASSY
|
300516-00041A
|
| 1. |
300516-00041A
|
[1] |
STARTER ASS`Y
|
|
| 1A. |
301206-00010
|
[1] |
. RELAY,STARTER
|
|
| 2. |
06.01943-3318
|
[3] |
BOLT ASS`Y M12X1.5X35
|
|
| 3. |
65.29101-5001
|
[1] |
WIRE;ELECTRIC
|
|
| 4. |
65.97480-0223
|
[1] |
HOLDER
|
|
| 5. |
06.01943-3213
|
[1] |
BOLT ASS`Y M10X1.25X20
|
|
| 6. |
65.90201-0168
|
[1] |
BOLT;STUD
|
|
| 7. |
06.16731-2108
|
[1] |
WASHER;SPRING
|
|
