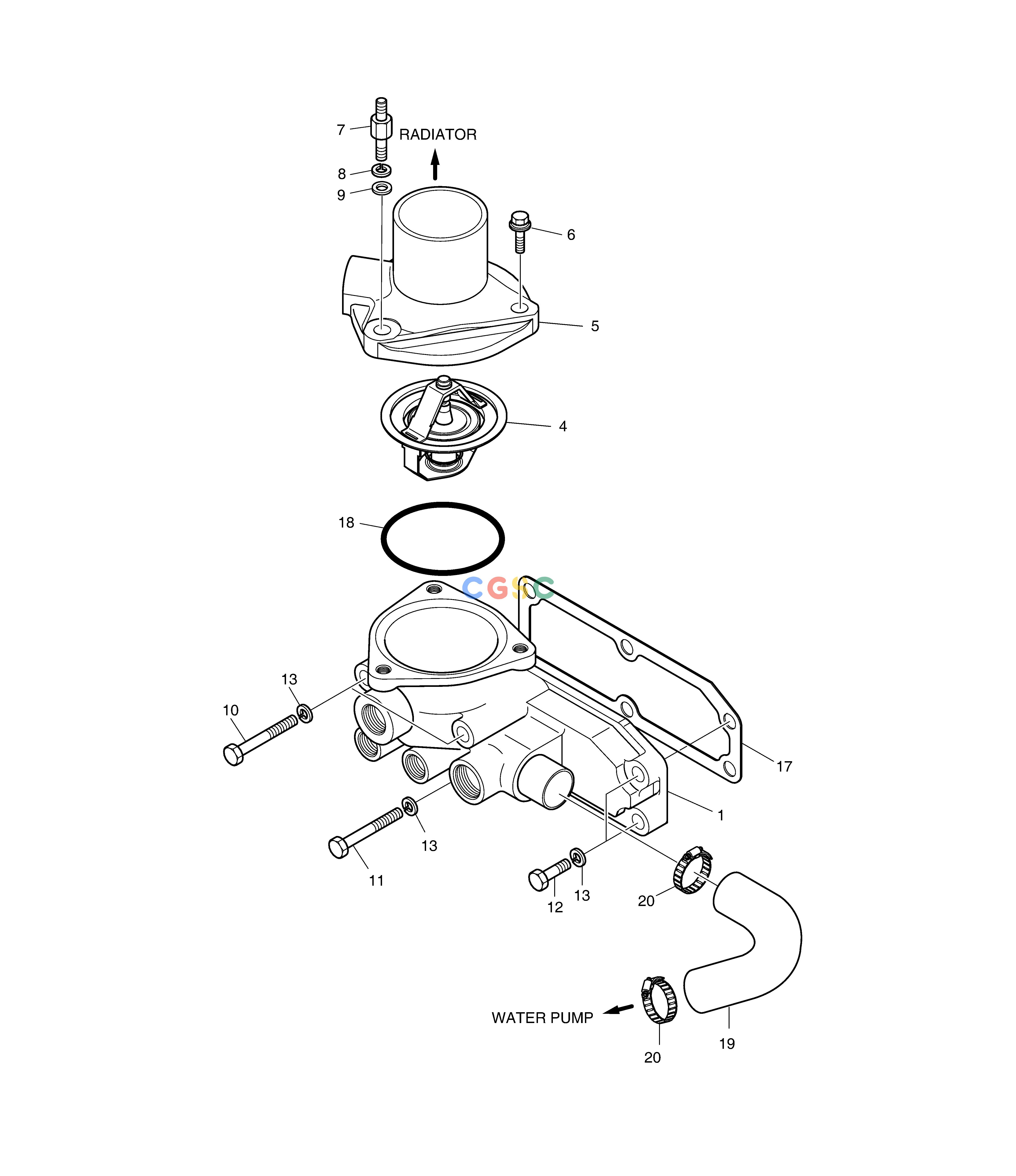

斗山零件查询THERMOSTAT DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
278 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.06404-5032
|
[1] |
HOUSING ASS`Y
|
|
| 10. |
06.01493-4217
|
[2] |
BOLT M10X1.25X90
|
|
| 11. |
06.01493-4216
|
[1] |
BOLT M10X1.25X85
|
|
| 12. |
06.01943-3217
|
[3] |
BOLT M10X1.25X30
|
|
| 13. |
06.16044-0211
|
[6] |
WASHER;SPRING
|
|
| 17. |
65.06904A0004
|
[1] |
GASKET;THERMOSTAT HSG
|
|
| 18. |
65.06904-0003
|
[1] |
GASKET;THERMOSTAT
|
|
| 19. |
65.96301-0045C
|
[1] |
HOSE;RUBBER
|
|
| 20. |
06.67020-0105
|
[2] |
CLAMP
|
|
| 4. |
65.06402-5015
|
[1] |
THERMOSTAT
|
|
| 5. |
65.06405-0039
|
[1] |
OUTLET;WATER
|
|
| 6. |
06.01923-3114
|
[2] |
BOLT ASS`Y M8X22
|
|
| 7. |
65.90201-0037
|
[1] |
BOLT;SPACER
|
|
| 8. |
06.16731-2107
|
[1] |
WASHER
|
|
| 9. |
06.15010-2311
|
[1] |
WASHER
|
|
