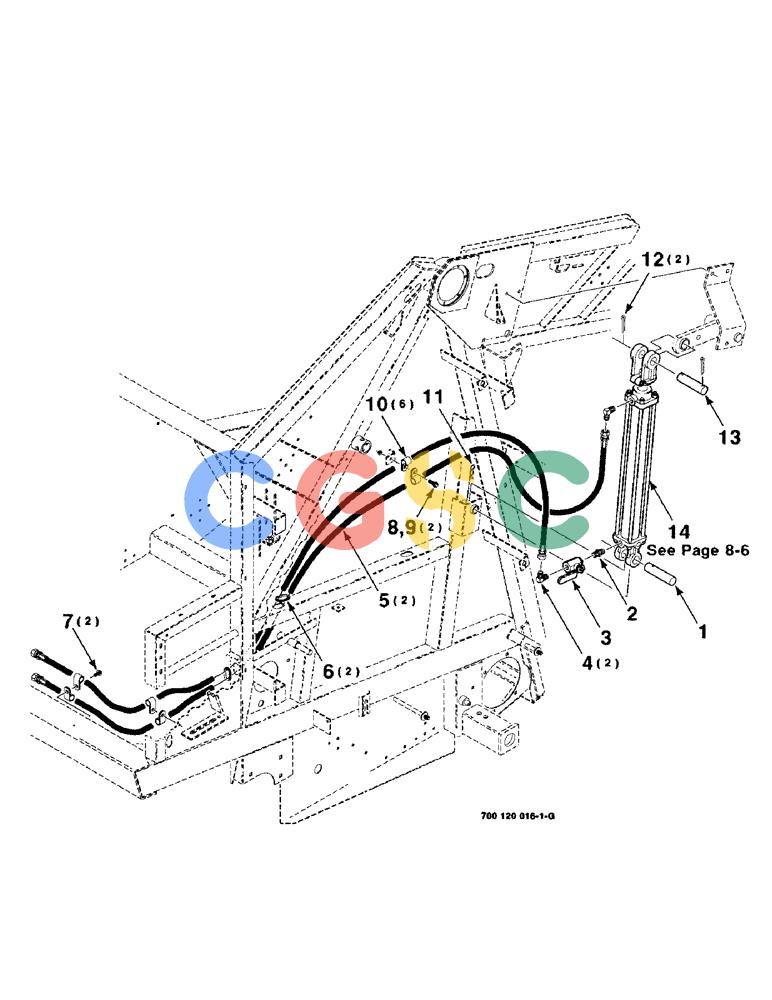

凯斯零件查询(8480) - CASE IH FIXED CHAMBER ROUND BALER (1/90-12/00) (8-02) - HYDRAULIC ASSEMBLY, LEFT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
947 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700120265
|
[1] |
PIN
|
HFI
|
| 2. |
217-1081
|
[1] |
HYD CONNECTOR,3/8" - 18 NPTF
|
CAS
NIPPLE - hex 3/8-18 Superseded by part number: 72187013, 87041527
|
| 3. |
700709593
|
[1] |
VALVE
|
IH
|
| 4. |
218-1053
|
[2] |
ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF
|
CAS
90 DEGREES Superseded by part number: 235131
|
| 5. |
7075781
|
[2] |
HYDRAULIC HOSE,0.25" ID x 108.27", SAE 100R7
|
CAS
HOSE - hydraulic
|
| 6. |
248-21114
|
[2] |
GROMMET,1 1/2" ID x 1 3/4" Groove Dia
|
CAS
|
| 7. |
172463
|
[2] |
SELF-TAP SCREW,Hex Hd, 5/16" x 1"
|
CAS
5/16-18 X 3/4 HWHTCTS
|
| 8. |
121-115
|
[2] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 9. |
231-5145
|
[2] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 10. |
515-25127
|
[6] |
CLAMP,1/2", Insul, 1/2" Bolt
|
CAS
Line 1/2", Insul, 1/2" Bolt Superseded by part number: 86632595
|
| 11. |
062455
|
[1] |
PIN, SPLIT (COTTER)
|
CAS
.178 WIRE HAIR PIN COTTER
|
| 12. |
432-1632
|
[2] |
COTTER PIN,1/4" x 2"
|
CAS
Pin, Split (Cotter), 1/4" x 2" Superseded by part number: 88182
|
| 13. |
700120264
|
[1] |
PIN
|
HFI
|
| 14. |
700709594
|
[1] |
CYLINDER
|
CAS
COMPLETE - hydraulic
|
