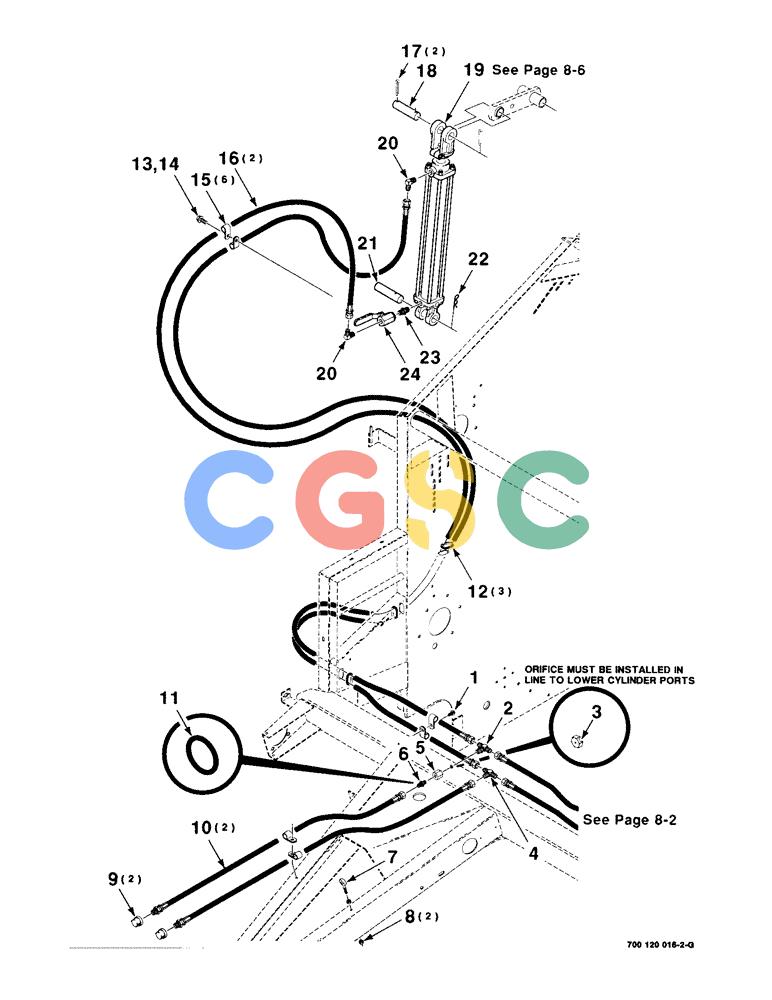

| 1. |
172463
|
[1] |
SELF-TAP SCREW,Hex Hd, 5/16" x 1"
|
CAS
5/16-18 X 3/4 HWHTCTS
|
| 2. |
218-5182
|
[1] |
TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
- hydraulic Superseded by part number: 163335
|
| 3. |
674516R1
|
[1] |
PORT
|
IH
ORIFICE
|
| 4. |
218-593
|
[1] |
TEE,9/16"-18, 37 Degree
|
CAS
Superseded by part number: 72187026, 76355
|
| 5. |
700120630
|
[1] |
COUPLING
|
CAS
- special
|
| 6. |
218-5057
|
[1] |
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
|
CAS
CONNECTOR - flared (Incl. Item 11) Superseded by part number: 76350
|
| 7. |
866061
|
[1] |
EYEBOLT
|
CAS
|
| 8. |
231-5144
|
[2] |
SERRATED NUT,Flg, USR, 1/4"-20
|
CAS
Superseded by part number: 523282, 72187066
|
| 9. |
746677
|
[2] |
CAP
|
CAS
- pipe
|
| 10. |
700709591
|
[2] |
HYDRAULIC HOSE,6.35 mm ID x 2900.00 mm, TYPE 100R7
|
CAS
6.35 mm ID x 2900.00 mm, TYPE 100R7
|
| 11. |
738468
|
[1] |
O-RING
|
IH
|
| 12. |
248-21114
|
[3] |
GROMMET,1 1/2" ID x 1 3/4" Groove Dia
|
CAS
|
| 13. |
121-115
|
[1] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 14. |
231-5145
|
[1] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 15. |
515-25127
|
[6] |
CLAMP,1/2", Insul, 1/2" Bolt
|
CAS
Line 1/2", Insul, 1/2" Bolt Superseded by part number: 86632595
|
| 16. |
7075781
|
[2] |
HYDRAULIC HOSE,0.25" ID x 108.27", SAE 100R7
|
CAS
HOSE - hydraulic
|
| 17. |
432-1632
|
[2] |
COTTER PIN,1/4" x 2"
|
CAS
Pin, Split (Cotter), 1/4" x 2" Superseded by part number: 88182
|
| 18. |
700120264
|
[1] |
PIN
|
HFI
|
| 19. |
700709594
|
[1] |
CYLINDER
|
CAS
COMPLETE - hydraulic
|
| 20. |
218-1053
|
[2] |
ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF
|
CAS
90 DEGREES Superseded by part number: 235131
|
| 21. |
700120265
|
[1] |
PIN
|
HFI
|
| 22. |
62455
|
[1] |
PIN, SPLIT (COTTER)
|
CAS
.178 WIRE HAIR PIN COTTER Superseded by part number: 062455, 062455, V12899
|
| 23. |
217-1081
|
[1] |
HYD CONNECTOR,3/8" - 18 NPTF
|
CAS
NIPPLE - hex 3/8-18 Superseded by part number: 72187013, 87041527
|
| 24. |
700709593
|
[1] |
VALVE
|
IH
|
