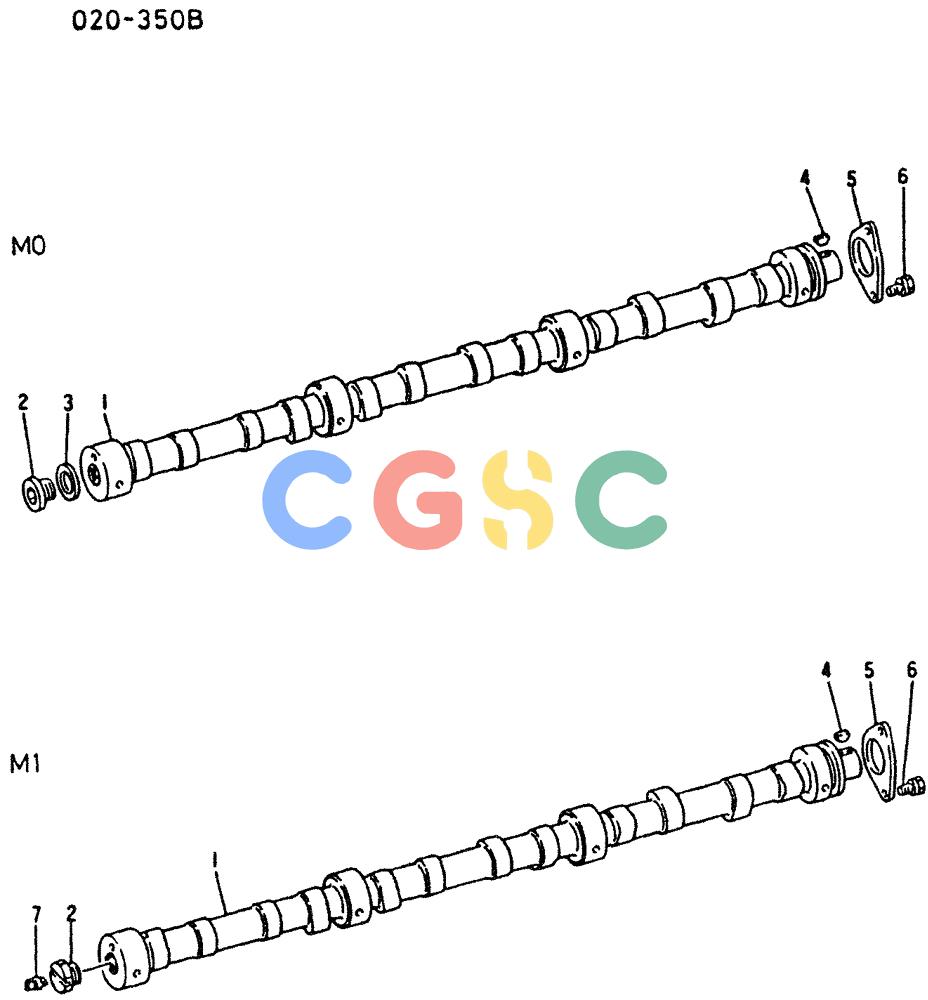

神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (00-017) - CAMSHAFT Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
685 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME071145 | [1] | CAMSHAFT CAMSHAFT | CAMSHAFT CAMSHAFT |
| 2. | VAME038069 | [1] | COUPLING | KOBCONNECTOR,FOR M1 ONLY |
| . . | VAMH037137 | [1] | PLUG | KOBPLUG,FOR M0 ONLY |
| 3. | VAMF660068 | [1] | PACKING | KOBGASKET 20 Superseded by part number: VAF420220000 |
| 4. | VAMS476135 | [1] | KEY | KOBKEY,WOODRUFF 5X19 Superseded by part number: 132499A1 |
| 5. | VAME031768 | [1] | THRUST PLATE | KOBPLATE,THRUST Superseded by part number: VAME071319 |
| 6. | VAMF140223 | [2] | BOLT | KOBBOLT,FLANGE 8X16 |
| 7. | VAME038071 | [1] | FASTENER COUPLING,TACHO DRIVE | FASTENER COUPLING,TACHO DRIVE |
