神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (00-018) - TIMING GEAR Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
517 次

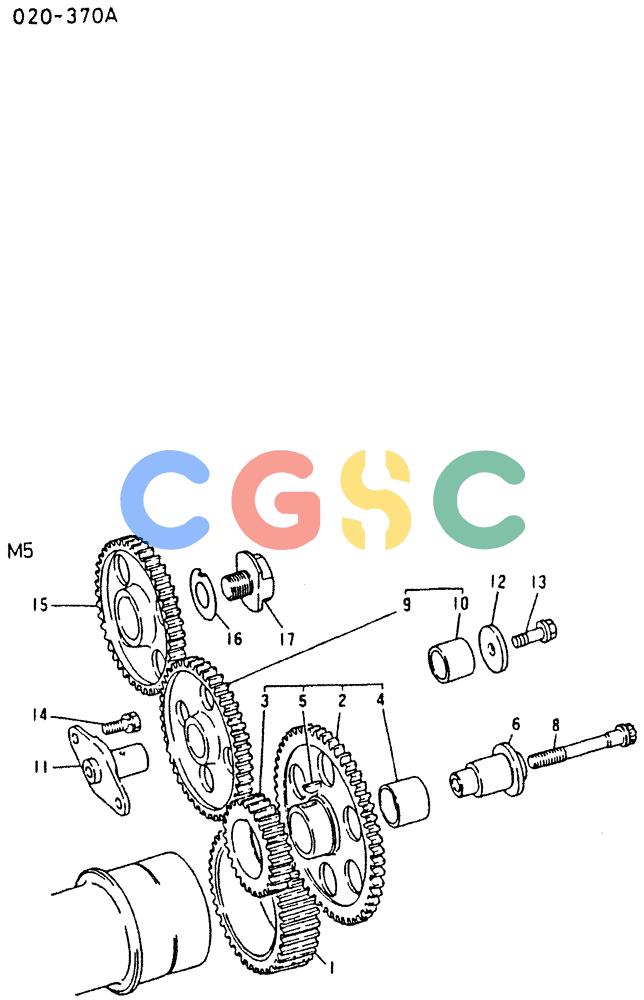

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME032684 | [1] | GEAR | KOBGEAR,CRANKSHAFT Z=42 |
| 2-5. | VAME072158 | [1] | GEAR | KOBIDLER GEAR ASSY,NO.1 |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONIDLER,A NO.l Z=52 |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONIDLER,B NO.l Z=24 |
| 4. | VAME072154 | [1] | BUSHING | KOBBUSHING |
| 5. | VAMS476135 | [1] | KEY | KOBKEY,WOODRUFF 5X19 Superseded by part number: 132499A1 |
| 6. | VAME032678 | [1] | IDLE SHAFT | KOBSHAFT,IDLER NO.l |
| 8. | VAMH000315 | [1] | SCREW | KOBBOLT 12X85 |
| 9-10. | VAME072152 | [1] | GEAR | KOBIDLER ASSY NO.2 |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONIDLER,NO.2 Z=45 |
| 10. | VAME072154 | [1] | BUSHING | KOBBUSHING |
| 11. | VAME072156 | [1] | IDLE SHAFT | KOBSHAFT,IDLER NO.2 |
| 12. | VAME072157 | [1] | THRUST PLATE | KOBWASHER,THRUST |
| 13. | VAMF140223 | [1] | BOLT | KOBBOLT,FLANGE 8X16 |
| 14. | VAMH000713 | [2] | BOLT | KOBBOLT,FLANGE 10X20 |
| 15. | VAME032032 | [1] | GEAR | KOBGEAR,CAMSHAFT Z=42 |
| 16. | VAME034779 | [1] | WASHER | KOBWASHER,CLAW |
| 17. | VAME034771 | [1] | BOLT | KOBBOLT |
