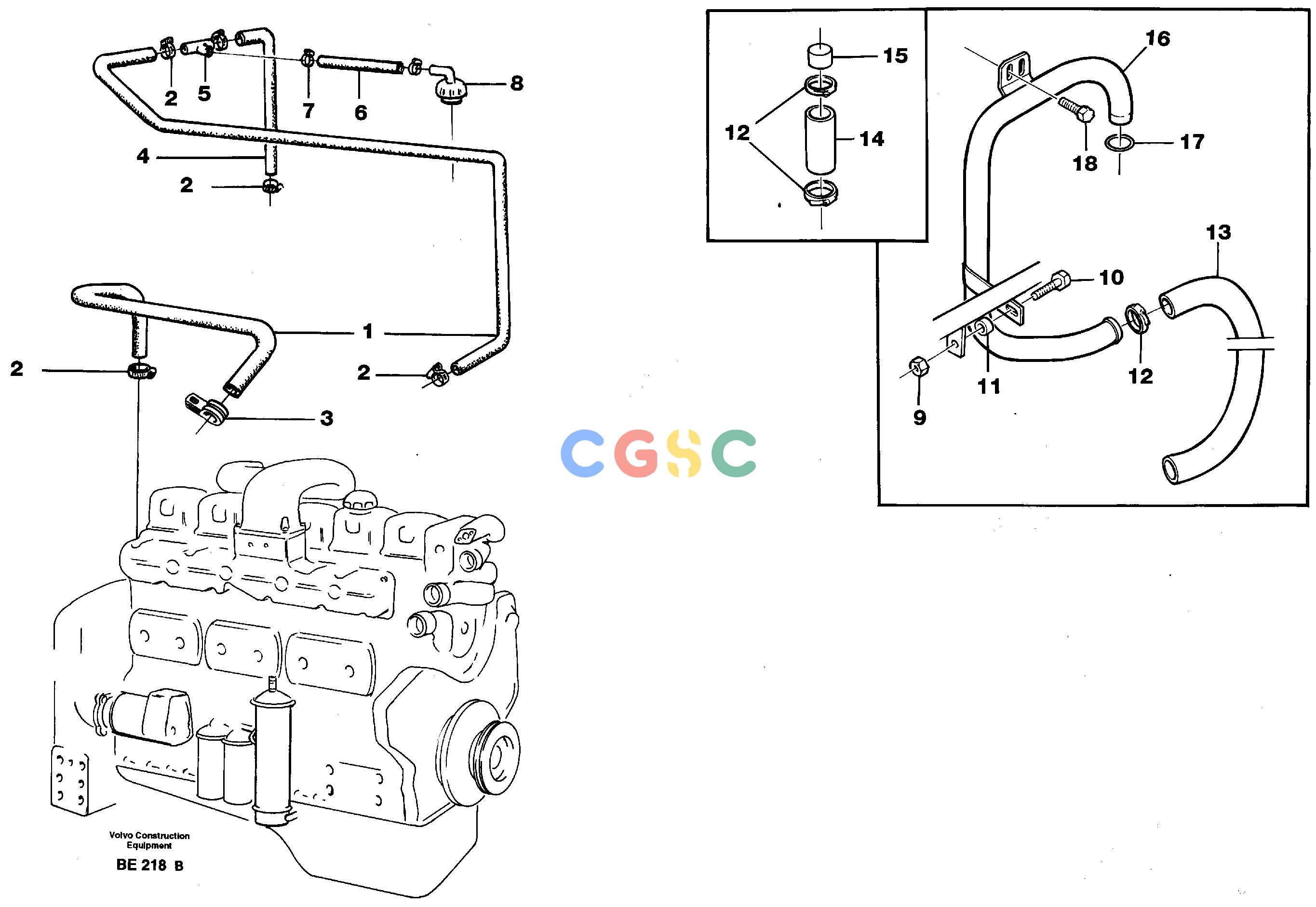

沃尔沃零件查询A35 Crankcase ventilationVolvo BM A35 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
570 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE941799
|
[REQ] |
Hose
|
L = 1950, SER NO -1089
|
| |
VOE941799
|
[REQ] |
Hose
|
L = 2400
SER NO 1090 - 1179
|
| |
|
|
None
|
|
| |
VOE941799
|
[REQ] |
Hose
|
L = 2010
SER NO 1180 - 1335
|
| |
|
|
None
|
|
| |
VOE941799
|
[REQ] |
Hose
|
L=2230, SER NO 1336 -2779
|
| 2. |
VOE943476
|
[1] |
Hose clamp
|
SER NO - 1089
|
| |
VOE943476
|
[2] |
Hose clamp
|
SER NO 1090 - 1179
|
| |
VOE943476
|
[4] |
Hose clamp
|
SER NO 1180 - 2779
|
| 3. |
VOE981904
|
[1] |
Clamp
|
SER NO - 1089
|
| 4. |
VOE941799
|
[REQ] |
Hose
|
L=480, SER NO 1180 - 2779
|
| 5. |
VOE11031549
|
[1] |
Hose coupling
|
SER NO 1180 - 2779
|
| 6. |
VOE11000285
|
[REQ] |
Rubber hose
|
L=380, SER NO 1180 - 2779
|
| 7. |
VOE13943474
|
[2] |
Hose clamp
|
SER NO 1180 - 2779
|
| 8. |
VOE848261
|
[1] |
Breather cap
|
SER NO - 2779
|
| 9. |
VOE13949278
|
[1] |
Flange lock nut
|
SER NO 2780 -
|
| 10. |
VOE13948356
|
[1] |
Flange screw
|
SER NO 2780 -
|
| 11. |
VOE11062347
|
[1] |
Spacer
|
SER NO 2780 -
|
| 12. |
VOE943476
|
[3] |
Hose clamp
|
SER NO 2780 -
|
| 13. |
VOE941799
|
[REQ] |
Hose
|
L = 700, SER NO 2780 -
|
| 14. |
VOE941799
|
[REQ] |
Hose
|
L = 50, SER NO 2780 -
|
| 15. |
VOE11062531
|
[1] |
Plug
|
SER NO 2780 -
|
| 16. |
VOE11062194
|
[1] |
Breather pipe
|
SER NO 2780 -
|
| 17. |
VOE421158
|
[1] |
Sealing ring
|
SER NO 2780 -
|
| 18. |
VOE942402
|
[1] |
Flange screw
|
SER NO 2780 -
|
