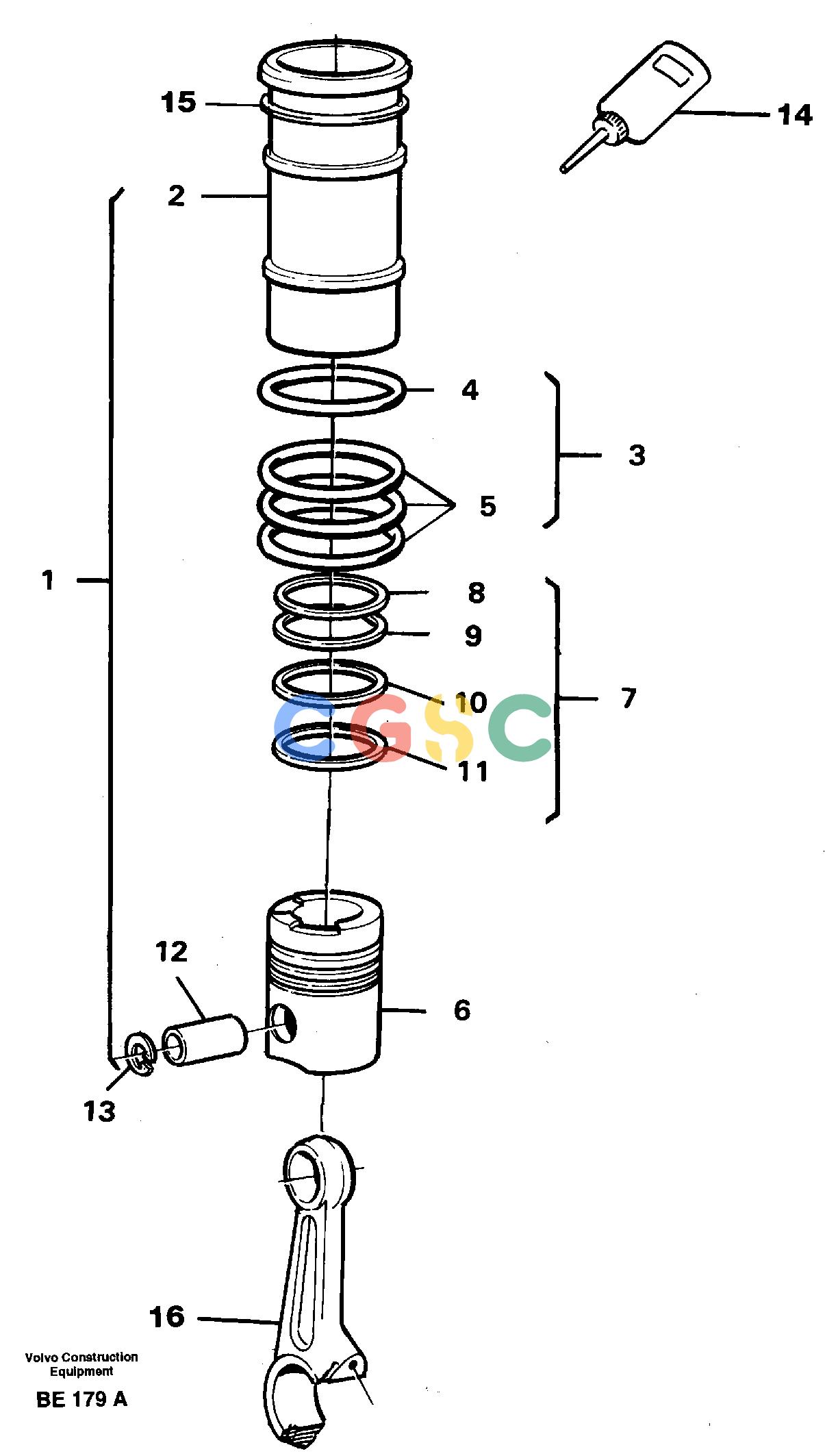

沃尔沃零件查询A35 Cylinder linerVolvo BM A35 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
886 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE275626
|
[6] |
Cylinder liner kit
|
TD 121 G
|
| |
VOE275633
|
[6] |
Cylinder liner kit
|
TD 122 GA
|
| 2. |
|
[6] |
Cylinder liner
|
|
| 3. |
VOE271155
|
[6] |
Sealing kit
|
TD 121 G
|
| |
VOE270950
|
[6] |
Sealing kit
|
TD 122 GA
|
| 4. |
|
[6] |
Sealing strip
|
|
| 5. |
|
[18] |
Sealing strip
|
|
| 6. |
|
[6] |
Piston
|
|
| 7. |
VOE275321
|
[6] |
Piston ring kit
|
TD 121 G
|
| |
VOE270603
|
[6] |
Piston ring kit
|
TD 122 GA
|
| 8. |
|
[6] |
Compress. ring, upper
|
|
| 9. |
|
[6] |
Oil ring
|
|
| 10. |
|
[6] |
Compression ring,lowe
|
|
| 11. |
|
[6] |
Expanding-oil ring
|
|
| 12. |
|
[6] |
Piston pin
|
|
| 13. |
VOE423124
|
[12] |
Lock ring
|
|
| 14. |
VOE1161277
|
[REQ] |
Sealant
|
|
| |
VOE11713514
|
[REQ] |
Sealant
|
|
| 15. |
VOE468271
|
[REQ] |
Shim
|
THICK = 0,20
|
| |
VOE468272
|
[REQ] |
Shim
|
THICK = 0,30
|
| |
VOE468273
|
[REQ] |
Shim
|
THICK = 0,50
|
| 16. |
|
[0000] |
Connecting rod
|
|
