神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (00-020) - INLET MANIFOLD Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
304 次

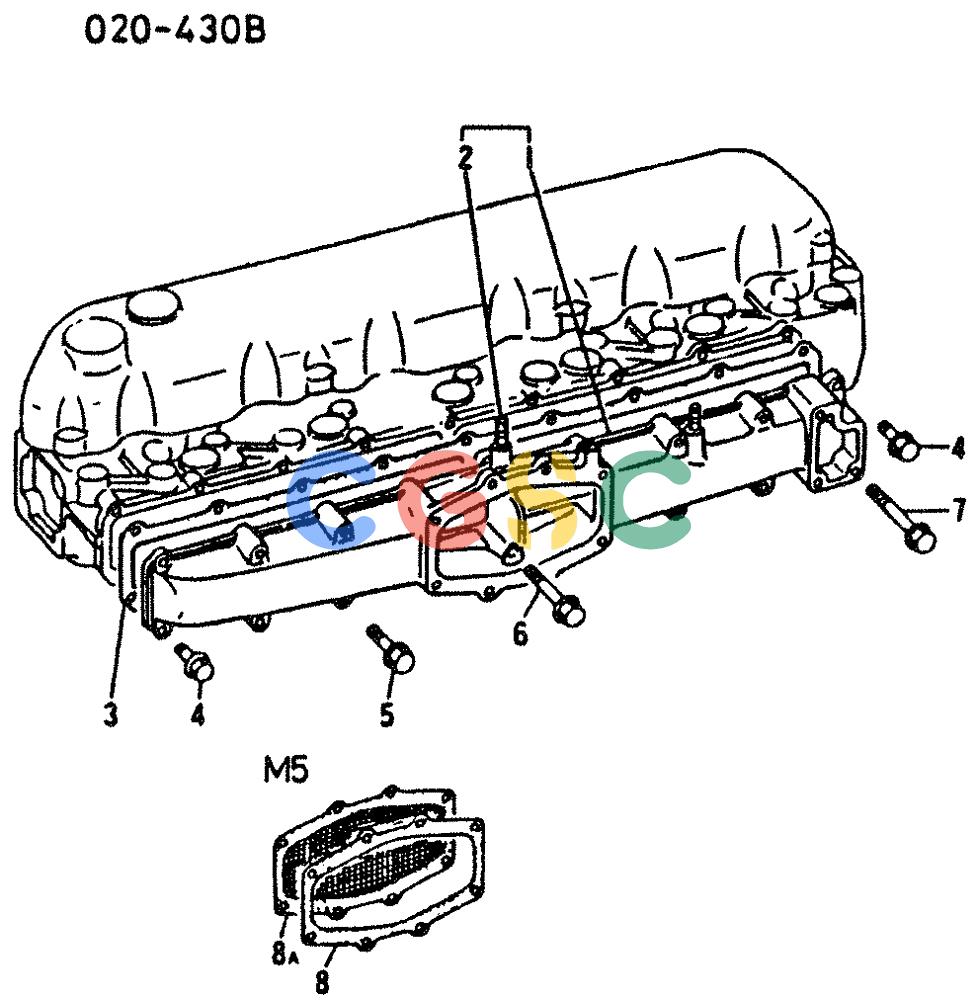

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-2. | VAME033223 | [1] | INLET MAN INLET MANIFOLD ASSY | INLET MAN INLET MANIFOLD ASSY |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONMANIFOLD,INLET |
| 2. | VAMF402548 | [2] | STUD | KOBSTUD 6X30 |
| 3. | VAME034491 | [1] | GASKET | KOBGASKET,MANIF Superseded by part number: VAME047600 |
| 4. | VAMF140226 | [2] | SCREW | KOBBOLT,FLANGE 8X22 |
| 5. | VAMF140236 | [2] | BOLT | KOBBOLT,FLANGE 8X55 (CF GN040-190) Superseded by part number: VAMF140235 |
| 6. | VAMF140241 | [2] | BOLT | KOBBOLT,FLANGE 8X80 |
| 7. | VAMF244865 | [1] | BOLT | KOBBOLT.W/WSR 8X70 (CF GN040-190) |
| 8. | VAME037450 | [1] | GASKET | KOBGASKET Superseded by part number: 77269165, VAME047601 |
| 8A. | VAME077070 | [1] | GASKET | KOBGASKET W/NET Superseded by part number: VAME078272 |
