神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (00-021) - INLET MANIFOLD Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
837 次

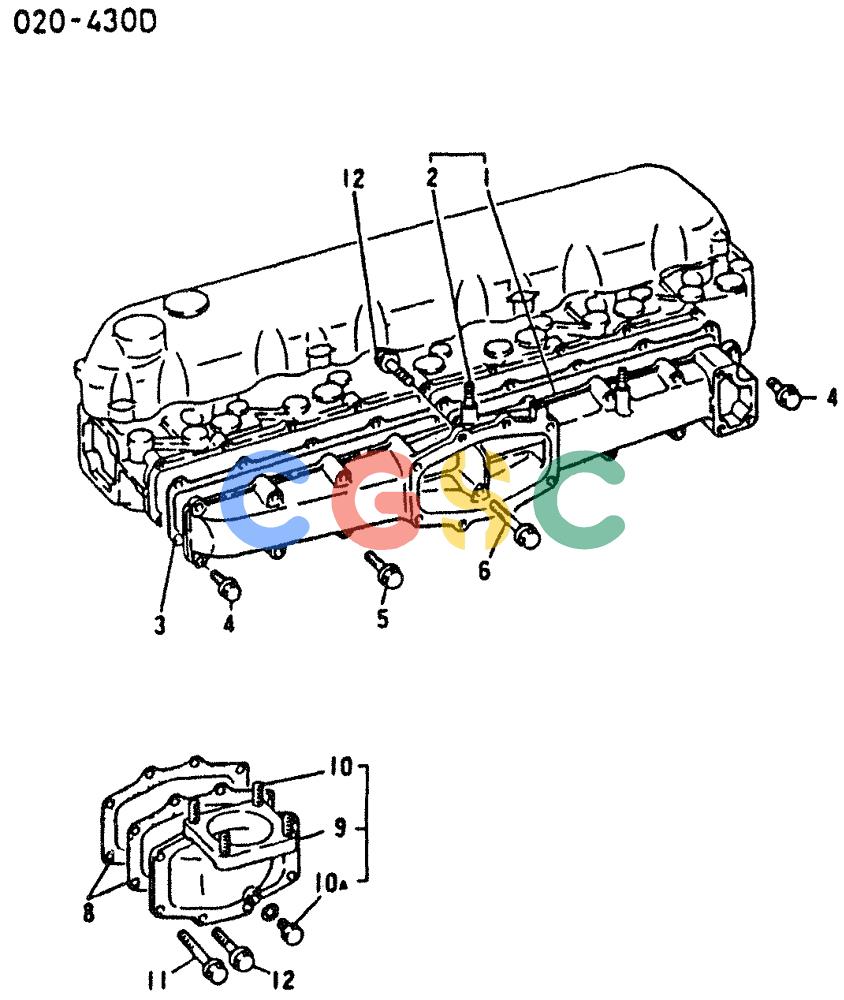

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-2. | VAME033379 | [1] | MANIFOLD INLET INLET MANIFOLD ASSY | MANIFOLD INLET INLET MANIFOLD ASSY |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONMANIFOLD,INLET |
| 2. | VAMF402548 | [1] | STUD | KOBSTUD 6X30 |
| 3. | VAME034491 | [1] | GASKET | KOBGASKET,MANIF Superseded by part number: VAME047600 |
| 4. | VAMF140226 | [2] | SCREW | KOBBOLT,FLANGE 8X22 |
| 5. | VAMF140236 | [2] | BOLT | KOBBOLT,FLANGE 8X55 (CF GN040-190) Superseded by part number: VAMF140235 |
| 6. | VAMF140241 | [2] | BOLT | KOBBOLT,FLANGE 8X80 |
| 8. | VAME037450 | [2] | GASKET | KOBGASKET Superseded by part number: 77269165, VAME047601 |
| 9-10A. | VAME032999 | [1] | COUPLER ASSY COUPLER ASSY | COUPLER ASSY COUPLER ASSY |
| 9-10. | VAME033719 | [1] | COUPLER ASSY | |
| 9. | VAME033720 | [1] | COUPLER | |
| 10. | VAME404546 | [4] | STUD 10X25 | |
| 10A. | VAME031088 | [1] | PLUG | KOBPLUG |
| 10. | VAMF660063 | [1] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 11. | VAMH000821 | [4] | BOLT | KOBBOLT,FLANGE 8X130 (CF GN040-190) |
| 12. | VAMF140236 | [4] | BOLT | KOBBOLT,FLANGE 8X55 (CF GN040-190) Superseded by part number: VAMF140235 |
