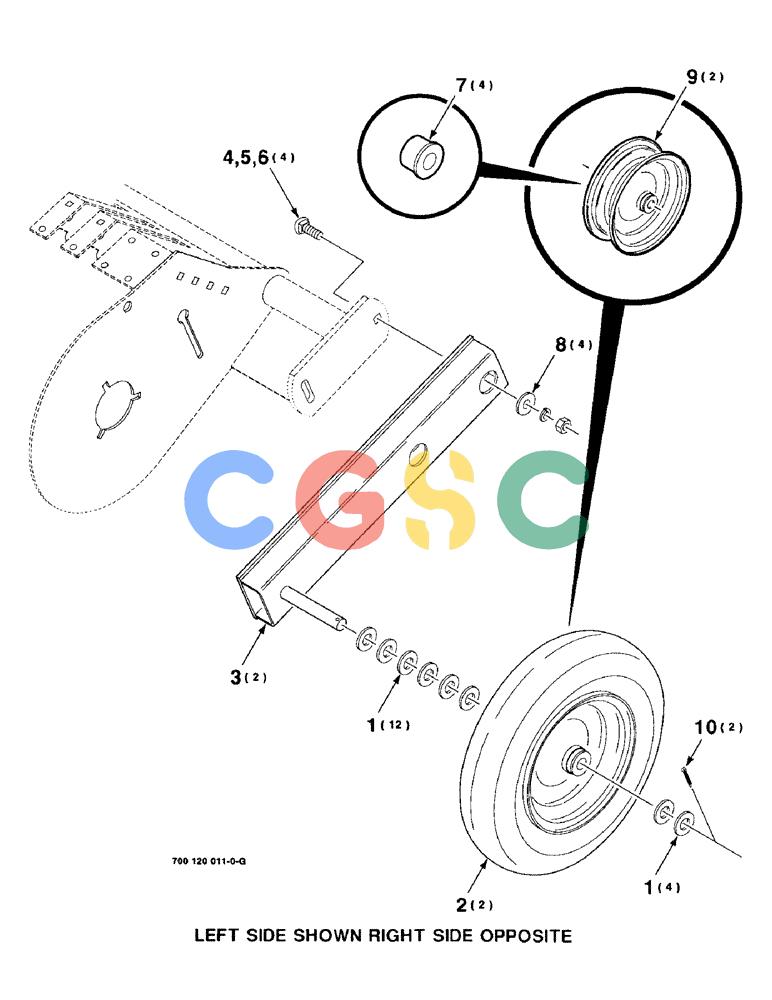

凯斯零件查询(8480) - CASE IH FIXED CHAMBER ROUND BALER (1/90-12/00) (7-08) - GAUGE WHEEL ASSEMBLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
635 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
705566
|
[16] |
WASHER
|
IH
3/4 HARDENED PLAIN WASHER
|
| 2. |
700709878
|
[2] |
WHEEL
|
CAS
AND TIRE ASSEMBLY (Includes Items 7 and 9)
|
| 3. |
700122927
|
[2] |
STRUT
|
HFI
|
| 4. |
433-824
|
[4] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
|
CAS
1/2-13 X 1-1/2 RHSNB Superseded by part number: 280420, 72187237
|
| 5. |
80679
|
[4] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 6. |
425-108
|
[4] |
NUT,1/2" - 13, Gr 5
|
CAS
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| 7. |
700709967
|
[4] |
BUSHING
|
CAS
BEARING - flanged
|
| 8. |
495-21056
|
[4] |
WASHER,1/2"
|
CAS
1/2 HARDENED PLAIN WASHER Superseded by part number: 72187265, 80700
|
| 9. |
700709966
|
[2] |
RIM
|
CAS
WHEEL - gauge (Includes Item 7) Superseded by part number: 700709878
|
| 10. |
432-1220
|
[2] |
COTTER PIN,3/16" x 1 1/4"
|
CAS
3/16" x 1 1/4" Superseded by part number: 87398
|
