斗山零件查询AIRCONDITIONER DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
222 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1001332G
|
[-] |

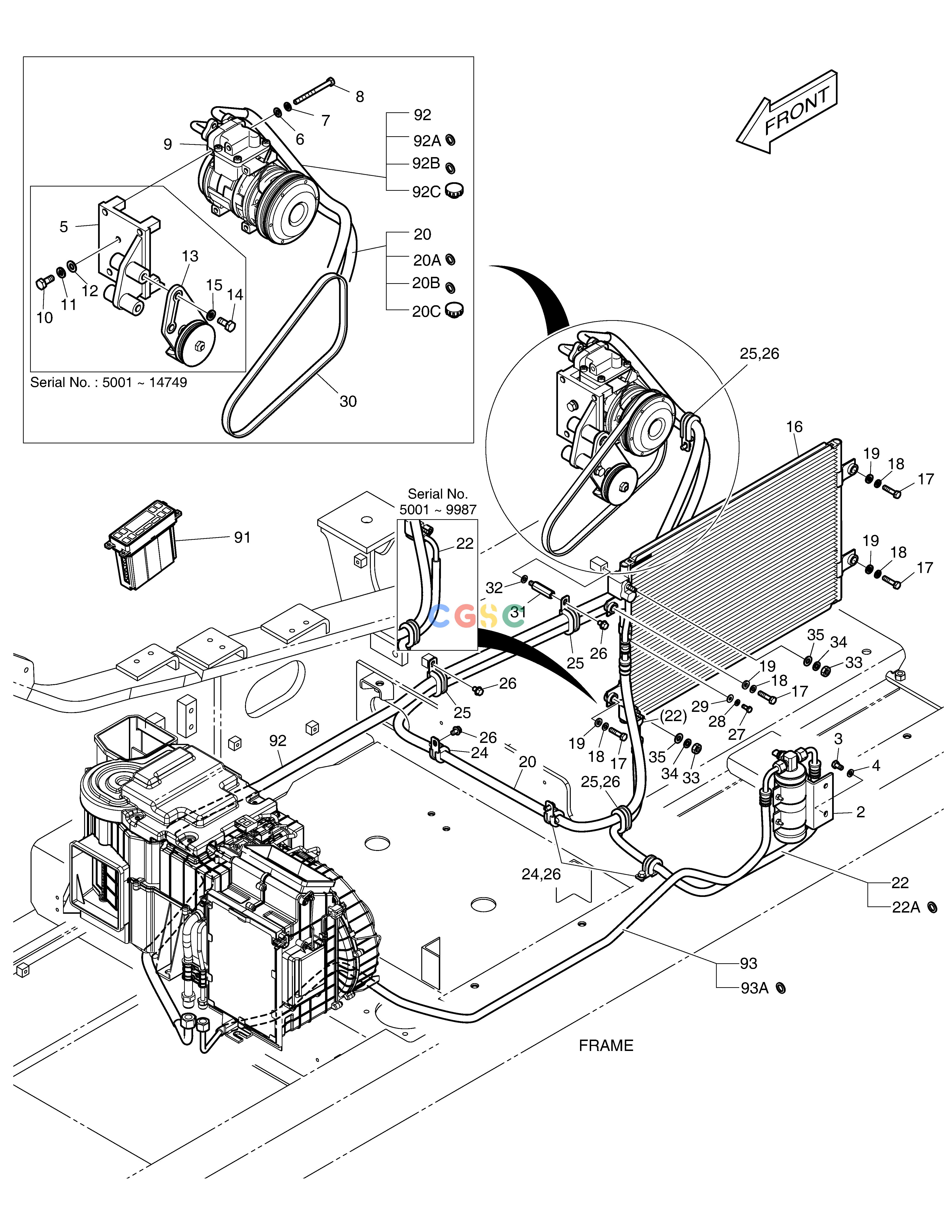

AIR CONDITIONER
|
|
| 10. |
S0712153
|
[1] |
BOLT M10X1.25X28
|
|
| 11. |
S5102603
|
[1] |
. WASHER
|
|
| 12. |
S5010613
|
[1] |
WASHER
|
|
| 13. |
2107-6006
|
[1] |
PULLEY ASS'Y;IDLE
|
|
| 14. |
S0759853
|
[2] |
BOLT
|
|
| 15. |
S5102603
|
[2] |
. WASHER
|
|
| 16. |
520-00004
|
[1] |
CONDENSER,AIR CON
|
|
| 17. |
S0509366
|
[4] |
BOLT
|
|
| 18. |
S5102503
|
[4] |
. WASHER
|
|
| 19. |
2114-1058D29
|
[4] |
WASHER
|
|
| 2. |
2204-6039A
|
[1] |
RECEIVER DRIER
|
300720-00003
|
| 2. |
300720-00003
|
[1] |
DRYER,RECEIVER
|
|
| 20. |
K1001277C
|
[1] |
HOSE;DISCHARGE
|
|
| 20A. |
2180-6088
|
[1] |
O-RING(COMP)
|
|
| 20B. |
K1011384
|
[1] |
O-RING(CONDENSER)
|
|
| 20C. |
1.161-00018
|
[1] |
CAP;CHECK PORT(H)
|
|
| 22. |
K1001279C
|
[1] |
HOSE;LIQUID(1)
|
420102-00239
|
| 22. |
420102-00239
|
[1] |
|
|
| 22. |
420102-00694
|
[1] |
|
|
| 22A. |
K1011388
|
[2] |
O-RING
|
|
| 24. |
124-00208D3
|
[3] |
CLIP
|
|
| 25. |
124-00209D1
|
[4] |
CLIP
|
|
| 26. |
K1001029
|
[7] |
BOLT
|
|
| 27. |
S0504666
|
[1] |
BOLT
|
|
| 28. |
S5010303
|
[1] |
WASHER
|
|
| 29. |
2114-1058D52
|
[1] |
WASHER
|
|
| 3. |
S0508666
|
[2] |
BOLT
|
|
| 30. |
2106-1019D10
|
[1] |
V-BELT 4PK 990L
|
|
| 30. |
2106-1019D11
|
[1] |
V-BELT
|
|
| 31. |
2120-2187
|
[1] |
BOLT
|
|
| 32. |
S5102503
|
[1] |
. WASHER
|
|
| 33. |
S4012303
|
[2] |
NUT
|
|
| 34. |
S5102303
|
[2] |
. WASHER
|
|
| 35. |
S5000313
|
[2] |
WASHER
|
|
| 4. |
S5102503
|
[2] |
. WASHER
|
|
| 5. |
2197-1798C
|
[1] |
BRACKET;COMPRESSOR
|
|
| 6. |
S5010513
|
[4] |
WASHER
|
|
| 7. |
S5102503
|
[4] |
. WASHER
|
|
| 8. |
S0557166
|
[4] |
BOLT
|
|
| 9. |
2208-6013B
|
[1] |
COMPRESSOR
|
440205-00070
|
| 9. |
440205-00070
|
[1] |
COMPRESSOR
|
|
| 91. |
543-00107
|
[1] |
CONTROL PANEL,AIR CON
|
|
| 92. |
K1001278C
|
[1] |
HOSE;SUCTION
|
|
| 92. |
420102-00630A
|
[1] |
|
|
| 92A. |
2180-6086
|
[1] |
O-RING(COMP)
|
|
| 92B. |
K1011385
|
[1] |
O-RING(EVAPORATOR)
|
|
| 92C. |
1.161-00019
|
[1] |
CAP;CHECK PORT(L)
|
|
| 93. |
K1001280C
|
[1] |
HOSE;LIQUID(2)
|
|
| 93. |
420102-00695
|
[1] |
|
|
| 93A. |
K1011388
|
[2] |
O-RING
|
|
