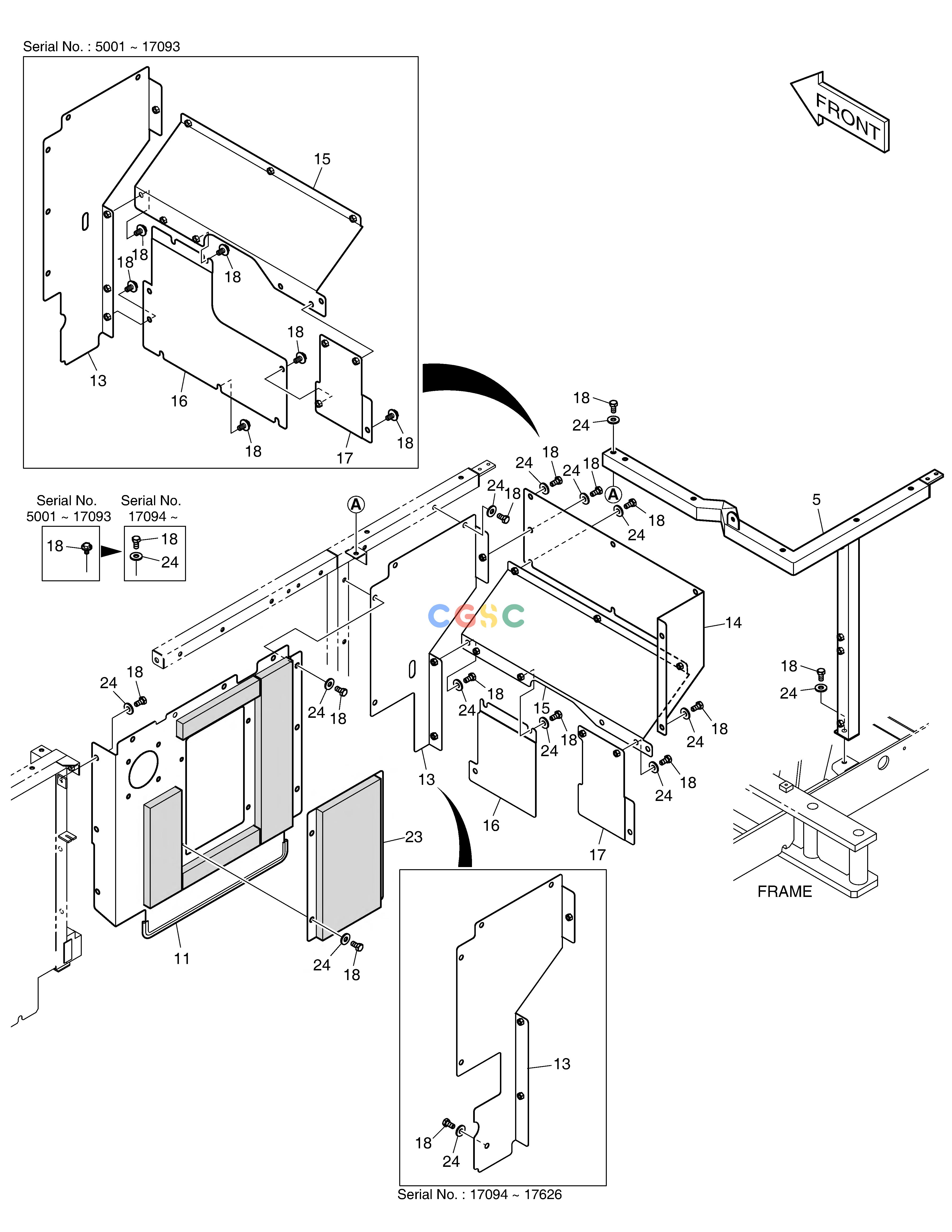

斗山零件查询BAFFLE DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
590 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1045990B
|
[-] |
SUPPORT ASS'Y
|
|
| -. |
110958-00014
|
[-] |
|
|
| 11. |
K1049011
|
[1] |
COVER;BAFFLE
|
110502-01201
|
| 11. |
110502-01201
|
[1] |
|
|
| 11. |
110502-01278
|
[1] |
|
|
| 11. |
110502-01278A
|
[1] |
|
|
| 13. |
K1045908
|
[1] |
COVER;BAFFLE
|
|
| 13. |
110502-01281
|
[1] |
|
|
| 13. |
110502-01281A
|
[1] |
|
|
| 13. |
110502-01281B
|
[1] |
|
|
| 14. |
K1030731
|
[1] |
COVER;BAFFLE
|
|
| 14. |
110502-01415A
|
[1] |
|
|
| 15. |
K1030732A
|
[1] |
COVER;BAFFLE
|
|
| 15. |
110502-01282
|
[1] |
|
|
| 15. |
110502-01282A
|
[1] |
|
|
| 16. |
K1030735A
|
[1] |
COVER;BAFFLE
|
|
| 16. |
110502-01277
|
[1] |
|
|
| 16. |
110502-01277A
|
[1] |
|
|
| 17. |
K1030734A
|
[1] |
COVER;BAFFLE
|
|
| 17. |
110502-01263
|
[1] |
|
|
| 17. |
110502-01263A
|
[1] |
|
|
| 18. |
DS0025015
|
[43] |
BOLT
|
|
| 18. |
S0515066
|
[38] |
BOLT
|
|
| 18. |
S0515066
|
[37] |
BOLT
|
|
| 23. |
K1038966
|
[1] |
COVER;BAFFLE
|
|
| 23. |
110502-01279
|
[1] |
|
|
| 23. |
110502-01279A
|
[1] |
|
|
| 24. |
120804-00079
|
[38] |
WASHER
|
|
| 5. |
K1049826
|
[1] |
SUPPORT
|
|
| 5. |
110958-04029
|
[1] |
|
|
