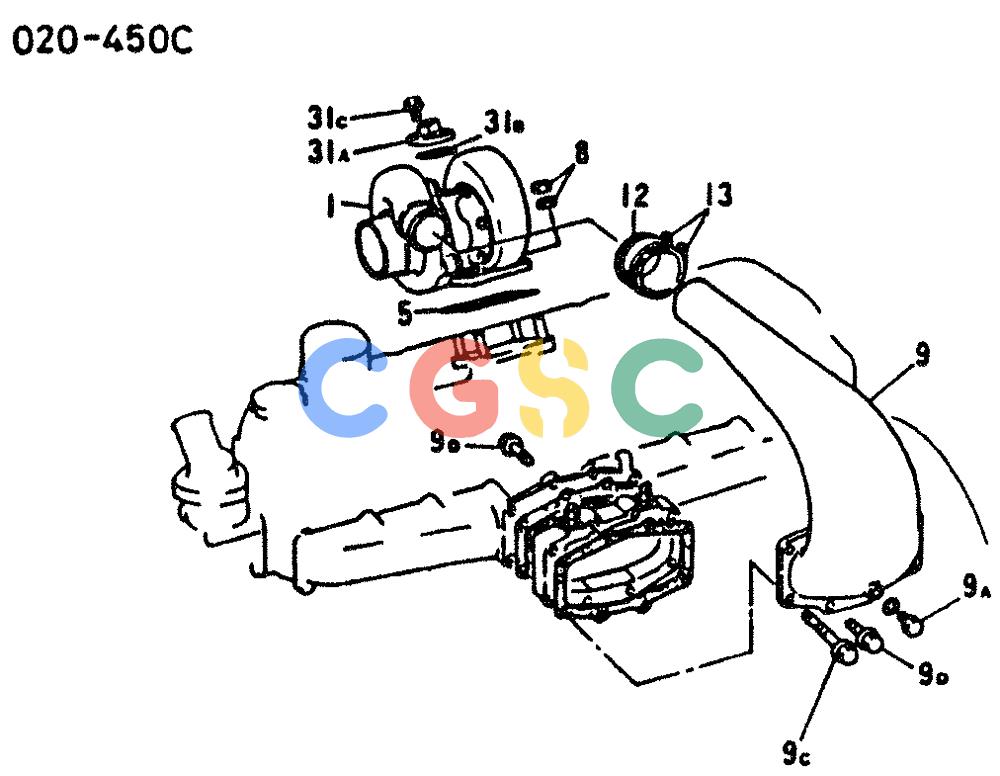

神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (00-024) - TURBO-CHARGER GENERAL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
435 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME070486 | [1] | TURBOCHARGER | KOBTURBOCHARGER ASSY T04B (CF GN020-451C) |
| 5. | VA3003291200 | [1] | GASKET | KOBGASKET Superseded by part number: VAME150877 |
| 8. | VAMH004110 | [1] | NUT | KOBHUT 10 Superseded by part number: 134957A1 |
| 9. | VAME070674 | [1] | PIPE,AIR TIP,AIR | PIPE,AIR TIP,AIR |
| 9A. | VAME031088 | [1] | PLUG | KOBPLUG |
| . . | VAMF660063 | [1] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 9C. | VAMH000821 | [4] | BOLT | KOBBOLT,FLANGE 8X130 |
| 9D. | VAMH000823 | [2] | BOLT | KOBBOLT,FLANGE 8X138 |
| . . | VAMF140236 | [2] | BOLT | KOBBOLT,FLANGE 8X55 Superseded by part number: VAMF140235 |
| 12. | VAME053453 | [1] | HOSE | KOBHOSE,RUBBER |
| 13. | VAMH021370 | [1] | CLAMP | KOBCLAMP,HOSE Superseded by part number: 134981A1 |
| 31A. | VAME070497 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 31B. | VAME870509 | [1] | GASKET | |
| 31C. | VAMF140225 | [2] | BOLT | KOBBOLT,FLANGE 8X20 |
