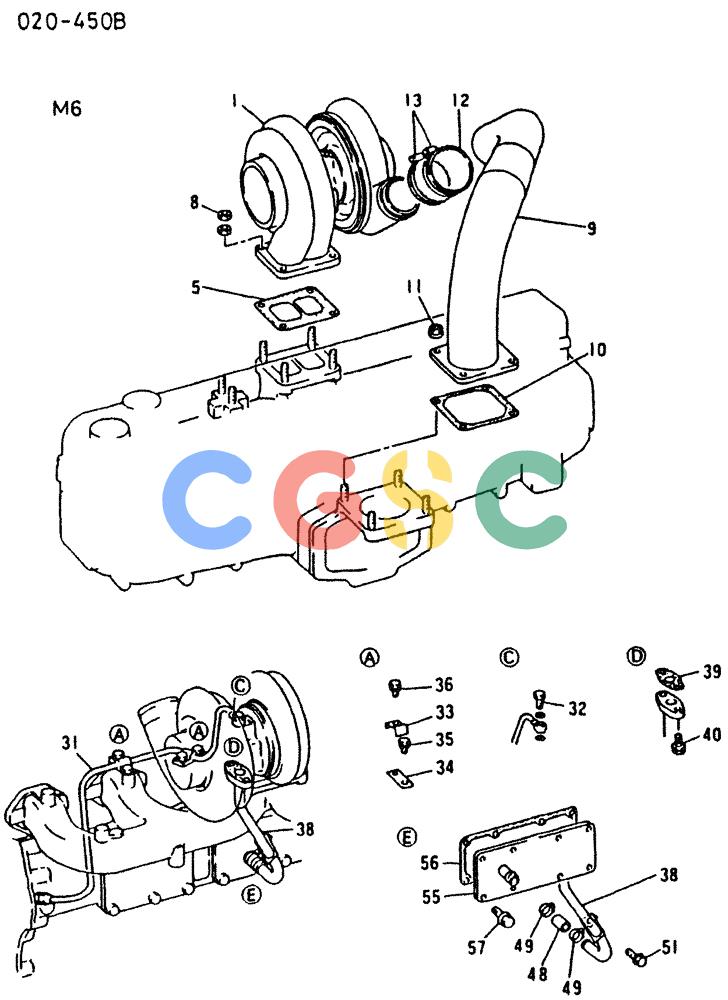

神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (00-023) - TURBO-CHARGER GENERAL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
971 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME047102 | [1] | TURBOCHARGER | KOBTURBOCHARGER ASSY TD07-22A |
| 5. | VA3003291200 | [1] | GASKET | KOBGASKET Superseded by part number: VAME150877 |
| 8. | VAMH004110 | [8] | NUT | KOBNUT Superseded by part number: 134957A1 |
| 9. | VAME047362 | [1] | AIR PIPE PIPE,AIR | AIR PIPE PIPE,AIR |
| 10. | VA3096603701 | [1] | GASKET | KOBGASKET Superseded by part number: VAME073946 |
| 11. | VAMF434105 | [4] | NUT | KOBNUT,FLANGE 10 |
| 12. | VAMH030156 | [1] | HOSE | KOBHOSE,RUBBER |
| 13. | VAMH021370 | [2] | CLAMP | KOBCLAMP,HOSE Superseded by part number: 134981A1 |
| 31. | VAME047361 | [1] | PIPE | KOBPIPE,OIL,TURBOCHARGER INLET |
| 32. | VAMF650102 | [1] | SCREW | KOBBOLT,EYE 10X20 |
| . . | VAMF660063 | [1] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 33. | VA3004901300 | [2] | CLAMP | KOB |
| 34. | VAMH023119 | [2] | BRACKET | KOBSTAY Superseded by part number: 133324A1 |
| 35. | VAMH000676 | [2] | SCREW | KOBBOLT 10X20 |
| 36. | VAMF140205 | [2] | BOLT | KOBBOLT,FLANGE 6X16 |
| 38. | VAME047400 | [1] | PIPE | KOBPIPE,OIL TURBOCHARGER OUTLET |
| 39. | VA3123612600 | [1] | GASKET | KOBGASKET Superseded by part number: 133176A1 |
| 40. | VAMH000726 | [2] | BOLT | KOBBOLT,FLANGE 10X22 |
| 48. | VAME070393 | [1] | HOSE,OIL RETURN | |
| 49. | VAMH021320 | [2] | CLIP,HOSE | |
| 52. | VAMF140225 | [1] | BOLT | KOBBOLT,FLANGE 8X20 |
| 55. | VAME047407 | [1] | COVER,SIDE B | |
| 56. | VAME041117 | [1] | RIGID TUBE | KOBGASKET,COVER B Superseded by part number: VAMZ100166 |
| 57. | VAMF140221 | [8] | BOLT | KOBBOLT,FLANGE 8X12 |
