神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (00-026) - TURBO-CHARGER (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
842 次

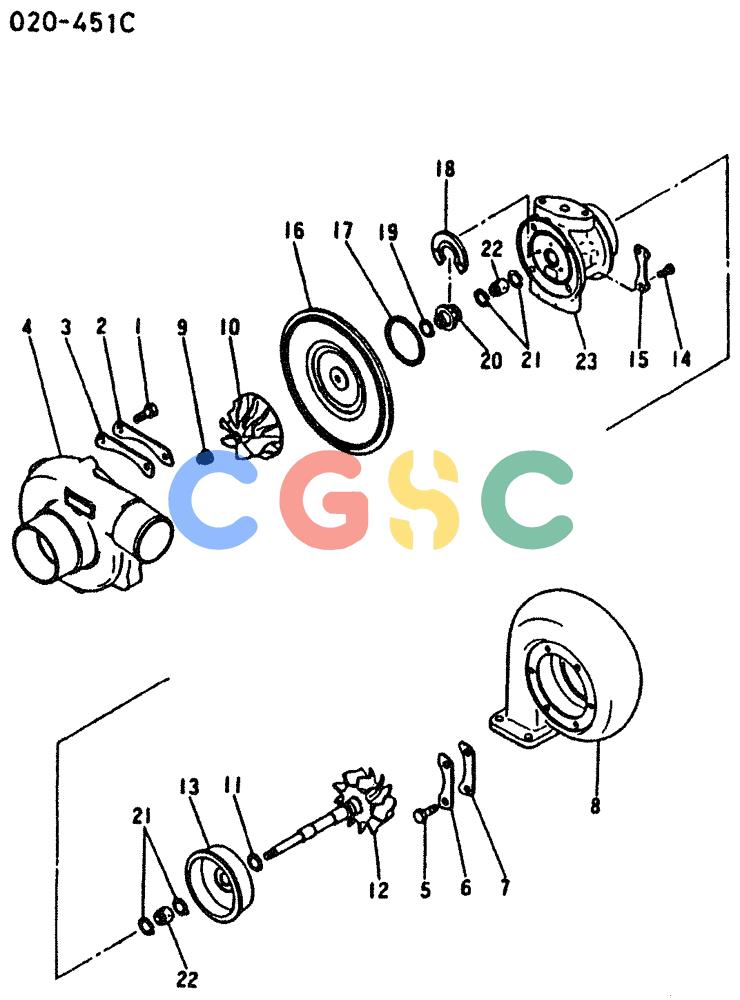

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-23. | VAME070486 | [1] | TURBOCHARGER | KOBTURBOCHARGER ASSY T04B |
| 1. | VAME070531 | [6] | BOLT | KOBBOLT |
| 2. | VAME070532 | [1] | LOCKING PLATE | KOBPLATE,LOCK |
| 3. | VAME070533 | [3] | CLAMP | KOBCLAMP |
| 4. | VAME070551 | [1] | HOUSING,COMPRESSOR HOUSING,COMPR | HOUSING,COMPRESSOR HOUSING,COMPR |
| 5. | VAME070534 | [6] | BOLT | KOBBOLT |
| 6. | VAME070535 | [3] | PLATE | KOBPLATE,LOCK |
| 7. | VAME070536 | [3] | CLAMP | KOBCLAMP |
| 8. | VAME070552 | [1] | HOUSING | KOBHOUSING,TURBINE |
| 9. | VAME070537 | [1] | LOCK NUT | KOBNUT,LOCK |
| 10. | VAME070554 | [1] | WHEEL | KOBWHEEL,COMPR |
| 11. | VAME070538 | [1] | PISTON RING | KOBRING,PISTON |
| 12. | VAME070535 | [1] | PLATE | KOBTURBINE WHEEL ASSY |
| 13. | VAME070539 | [1] | WHEEL SHROUD,WHEEL | WHEEL SHROUD,WHEEL |
| 14. | VAME070540 | [4] | BOLT BOLT | BOLT BOLT |
| 15. | VAME070541 | [2] | LOCKING PLATE | KOBPLATE,LOCK |
| 16. | VAME070542 | [2] | PLATE | KOBBACKPLATE ASSY |
| 18. | VAME070550 | [1] | PLATE,NAME | |
| 17. | VAME070543 | [1] | SEALING RING | KOBSEALRING RING,SEAL |
| 18. | VAME070544 | [1] | BEARING | KOBBEARING,THRUST |
| 19. | VAME070545 | [1] | PISTON RINGS KIT | KOBRING,PISTON |
| 20. | VAME070546 | [1] | COLLAR | KOBCOLLAR,THRUST Superseded by part number: VAME078624 |
| 21. | VAME070547 | [4] | SNAP RING | KOBRING,RETAININO |
| 22. | VAME070548 | [2] | BEARING | KOBBEARING |
| 23. | VAME070549 | [1] | MOTOR HOUSING | KOBCENTER HOUSING ASSY |
