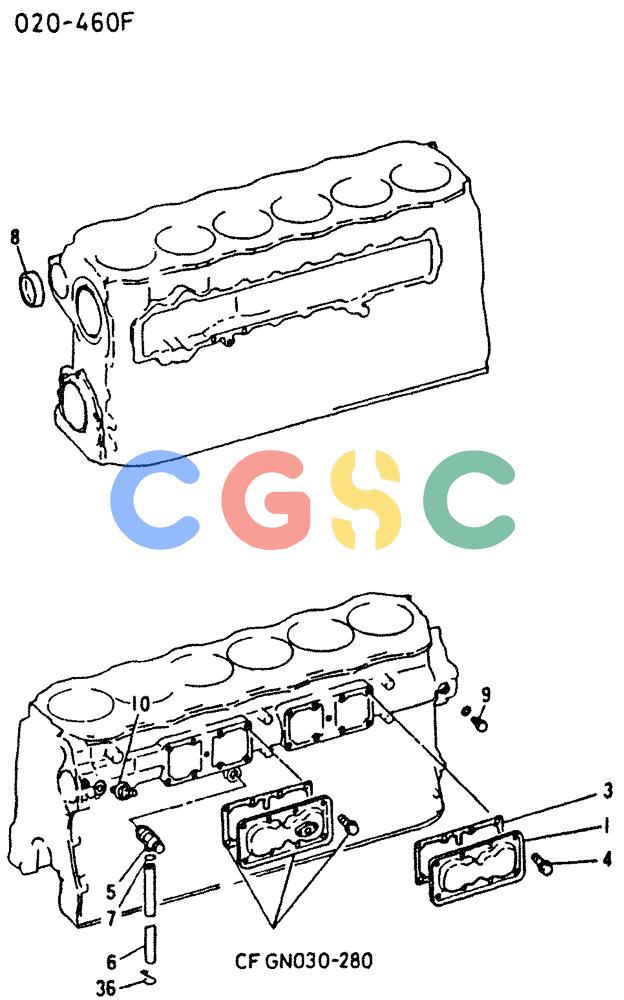

神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (00-027) - ENGINE ATTACHING PARTS Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
423 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME031944 | [1] | COVER | KOBCOVER,SIDE Superseded by part number: VAME071320 |
| 3. | VAME031155 | [1] | GASKET | KOBGASKET,SIDE COVER Superseded by part number: 77269054, VAME071274 |
| 4. | VAMF140221 | [8] | BOLT | KOBBOLT,FLANGE 8X12 (CF GN050-110) |
| 5. | VAME031455 | [1] | COCK | KOBCOCK,WATER DRAIN |
| 6. | VA3110704800 | [1] | PIPE DRAIN PIPE,DRAIN L=300 | PIPE DRAIN PIPE,DRAIN L=300 |
| 7. | VAME666040 | [1] | CLAMP 16 | |
| 8. | VAME031058 | [1] | CAP | KOBCAP,SEALING |
| 9. | VAME031887 | [1] | SCREW,SET | |
| . . | VAMF660063 | [1] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 10. | VAMH038934 | [1] | HYD CONNECTOR | KOBCONNECTOR,FOR TURBOCHARGER M10-M14 |
| 36. | VAMH021013 | [1] | CLAMP CLAMP | CLAMP CLAMP |
