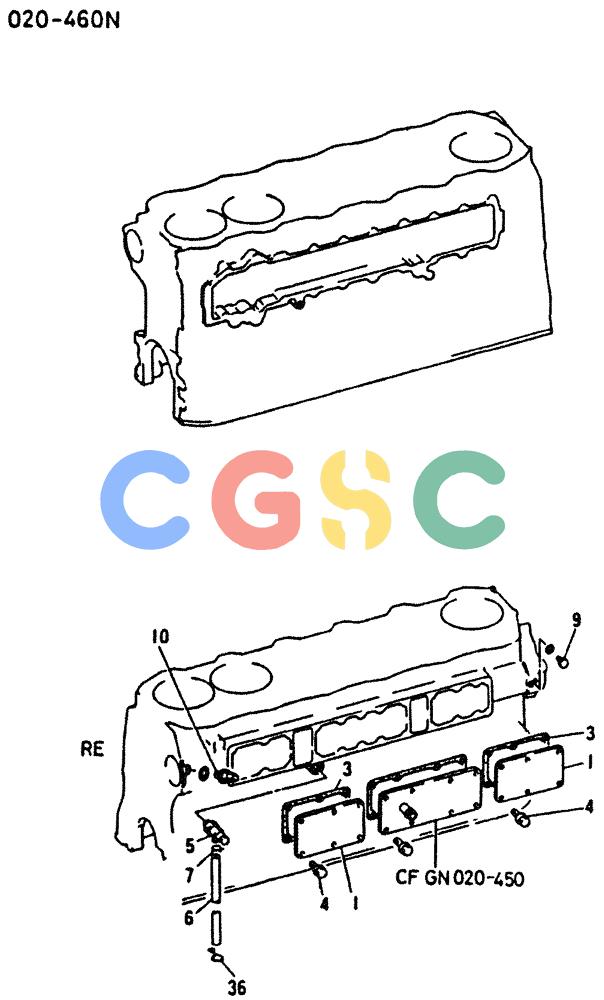

神钢零件查询(6D15-T) - MITSUBISHI DIESEL ENGINE - K909 II & K909LC II EXCAVATORS (1/87-12/06) (00-028) - ENGINE ATTACHING PARTS Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
823 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME041114 | [2] | COVER,SIDE A | |
| 3. | VAME041116 | [2] | RIGID TUBE | KOBGASKET,COVER A Superseded by part number: VAMZ100166 |
| 4. | VAMF140221 | [12] | BOLT | KOBBOLT,FLANGE 8X12 |
| 5. | VAME031455 | [1] | COCK | KOBCOCK,DRAIN |
| 6. | VAME050910 | [1] | HOSE | KOBPIPE,DRAIN L=950 |
| 7. | VAMS666040 | [1] | CLAMP | KOBCLAMP 16 |
| 9. | VAME031087 | [1] | SET OF SCREWS | KOBSCREW,SET |
| . . | VAMF660063 | [1] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 10. | VAMH038934 | [1] | HYD CONNECTOR | KOBCONNECTOR,FOR TURBOCHARGER M10-M14 |
| 36. | VAMH021013 | [1] | CLAMP CLAMP | CLAMP CLAMP |
