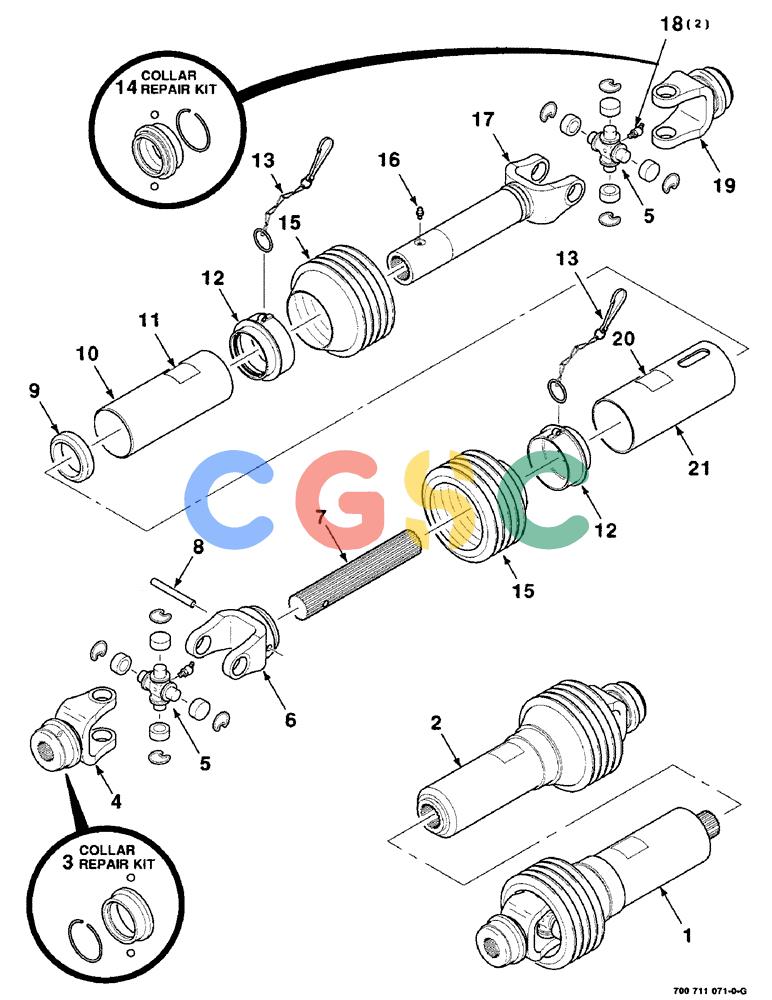

凯斯零件查询(8610) - CASE IH BALE PROCESSOR (1/86-12/00) (2-10) - IMPLEMENT DRIVELINE ASSEMBLY, WALTERSCHEID, SERIAL NUMBER CFH0096512 AND LATER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
214 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700711375
|
[1] |
COUPLING
|
IH
TRACTOR - half, male
|
| 2. |
700711376
|
[1] |
COUPLING
|
IH
IMPLEMENT - half, female
|
| 3. |
700711386
|
[1] |
COLLAR
|
IH
REPAIR KIT Superseded by part number: 279474
|
| 4. |
700707939
|
[1] |
YOKE
|
CAS
1-3/8-21 SPLINED YOKE ASSEMBLY (Quick disconnect) Superseded by part number: 9827276
|
| 5. |
700706779
|
[2] |
SPIDER ASSY.
|
L
CROSS AND BEARING KIT (Includes item 18) Superseded by part number: 84355349
|
| 6. |
700711388
|
[1] |
YOKE
|
CAS
- inboard Superseded by part number: 86514820
|
| 7. |
700711389
|
[1] |
PROFILE
|
HFI
SHAFT - inner profile
|
| 8. |
838-31090
|
[1] |
PIN,10mm OD x 90mm L, Coiled
|
CAS
SLOTTED SPRING PIN
|
| 9. |
700706769
|
[1] |
SUPPORT
|
CAS
BEARING - support Superseded by part number: 277860
|
| 10. |
700711392
|
[1] |
TUBE
|
CAS
SHIELD - inner, tube
|
| 11. |
1326528C1
|
[1] |
DECAL
|
IH
SAFETY DECAL - inner Superseded by part number: 849472
|
| 12. |
8800633
|
[2] |
BEARING COVER
|
CAS
RING Superseded by part number: 411728
|
| 13. |
700713239
|
[2] |
CHAIN (AG)
|
CAS
CHAIN - safety
|
| 14. |
700711387
|
[1] |
KIT
|
CAS
COLLAR REPAIR KIT Superseded by part number: 279700
|
| 15. |
700711402
|
[2] |
SHIELD
|
CAS
OUTER - shield
|
| 16. |
219-425
|
[1] |
LUBE NIPPLE,1/4" - 28
|
CAS
ZERK - straight
|
| 17. |
700711385
|
[1] |
SLEEVE
|
CAS
YOKE - inboard, tube & sleeve
|
| 18. |
700713986
|
[2] |
LUBE NIPPLE,67.5 Degree, M8
|
CAS
M8 X 67 1/2 DEGREE ZERK Superseded by part number: 150024
|
| 19. |
700709178
|
[1] |
BODY
|
L
1-3/4-20 SPLINED YOKE ASSEMBLY (Quick disconnect)
|
| 20. |
80672C1
|
[1] |
DECAL
|
IH
SAFETY DECAL - outer Superseded by part number: 849471
|
| 21. |
700711391
|
[1] |
SHIELD
|
CAS
- tube, outer
|
