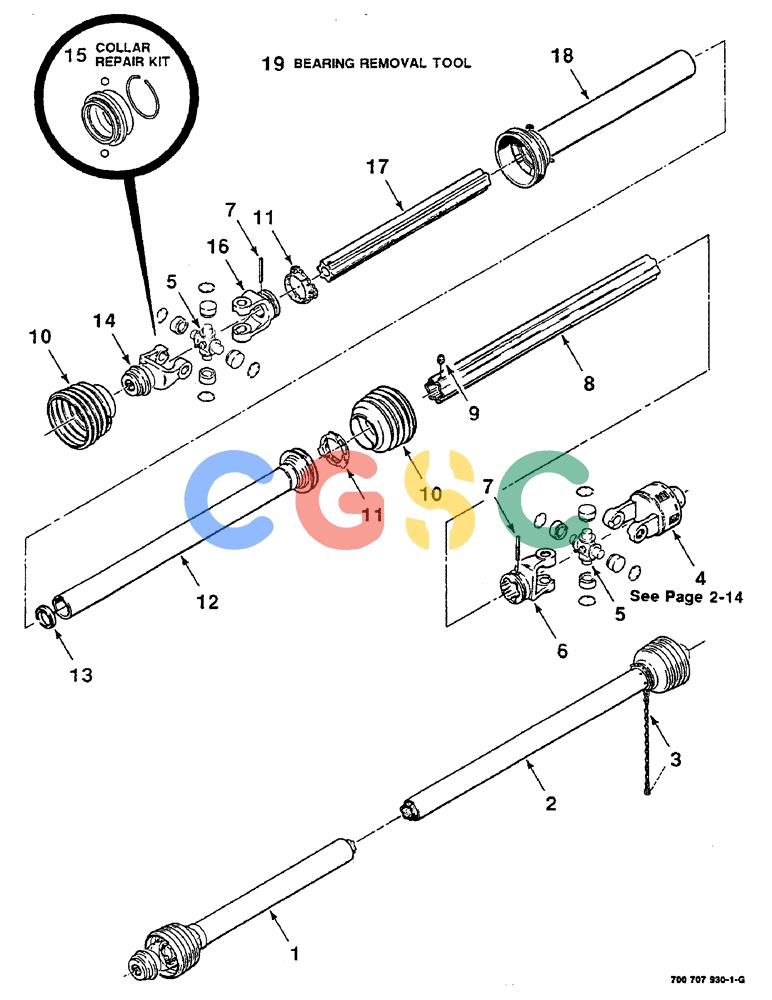

凯斯零件查询(8610) - CASE IH BALE PROCESSOR (1/86-12/00) (2-08) - DRIVELINE ASSEMBLY, IMPLEMENT, SERIAL NUMBER CFH0036001 THRU CFH0096511 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
517 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700707931
|
[1] |
UNIVERSAL JOINT
|
IH
U-JOINT - tractor half (1-3/8-21 spline)
|
| 2. |
700707932
|
[1] |
UNIVERSAL JOINT
|
IH
U-JOINT - implement half, includes ref. 4
|
| 3. |
1281453C1
|
[1] |
CHAIN (AG)
|
IH
CHAIN - safety Superseded by part number: 87586692
|
| 4. |
700707933
|
[1] |
CLUTCH
|
CAS
ASSEMBLY WITH YOKE
|
| 5. |
700706779
|
[2] |
SPIDER ASSY.
|
L
JOURNAL REPAIR KIT Superseded by part number: 84355349
|
| 6. |
700706774
|
[1] |
YOKE
|
HFI
- inboard Superseded by part number: 437920
|
| 7. |
838-31090
|
[2] |
PIN,10mm OD x 90mm L, Coiled
|
CAS
- shield
|
| 8. |
700707938
|
[1] |
PROFILE
|
CAS
TUBE - outer profile
|
| 9. |
700707556
|
[1] |
NIPPLE, LUBE
|
IH
ZERK Superseded by part number: 80750220
|
| 10. |
700706773
|
[2] |
SHIELD
|
HFI
CONE - shield Superseded by part number: 9827277
|
| 11. |
8800633
|
[2] |
BEARING COVER
|
CAS
RING - bearing Superseded by part number: 411728
|
| 12. |
700707934
|
[1] |
SHIELD
|
CAS
- tube, inner
|
| 13. |
700706769
|
[1] |
SUPPORT
|
CAS
- bearing Superseded by part number: 277860
|
| 14. |
700707939
|
[1] |
YOKE
|
CAS
ASSEMBLY - tractor (1-3/8-21 spline) Superseded by part number: 9827276
|
| . . |
700709178
|
[1] |
BODY
|
L
YOKE ASSEMBLY - tractor (1-3/4-20 spline)
|
| 15. |
700711386
|
[1] |
COLLAR
|
IH
REPAIR KIT Superseded by part number: 279474
|
| 16. |
700706777
|
[1] |
YOKE
|
HFI
- inboard Superseded by part number: 748481
|
| 17. |
700707937
|
[1] |
PROFILE
|
CAS
SHAFT - inner profile
|
| 18. |
700707936
|
[1] |
SHIELD
|
CAS
- tube, outer
|
| 19. |
700706833
|
[1] |
TOOL
|
HFI
- bearing removal
|
